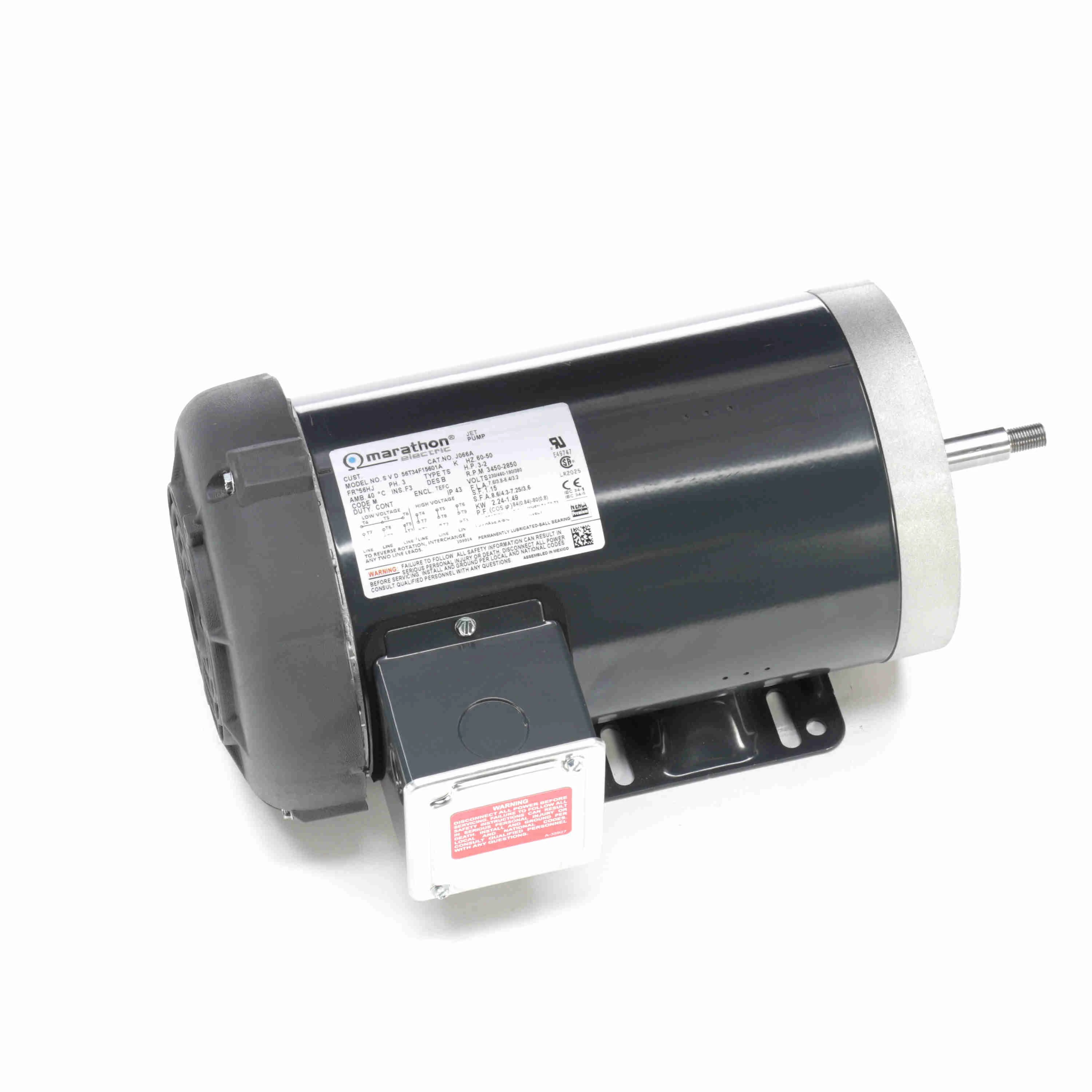

| Item | Jet Pump Motor |
| Bearing Type | Ball |
| Body Dia. | 7 2/5" |
| Bolt Circle Dia. | 5 7/8" |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Frame | 56HJ |
| Frame Material | Steel |
| Hp | 3 hp |
| Hz | 50/60 Hz |
| Includes | Drip Cover |
| Insulation Class | Class F |
| Length Less Shaft | 12 1/4" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Pump |
| Motor Design | Three Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal, Vertical Shaft Down |
| Motor Mounting Type | Face, Base |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Jet Pump |
| Motor Thermal Protection | No |
| Mounting Type | Face/Base |
| Nameplate Rpm | 3450 RPM |
| Nema Design | B |
| Nominal Efficiency | 85.5% |
| Number Of Speeds | 1 |
| Overall Length | 14 13/16" |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 5/8" |
| Shaft Material | Stainless Steel |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Ship weight (kg) | 21.6 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 50.5 |
| Ship width (cm) | 26.04 |
| HS code | 8501524000 |
| Country of Origin | MX |
