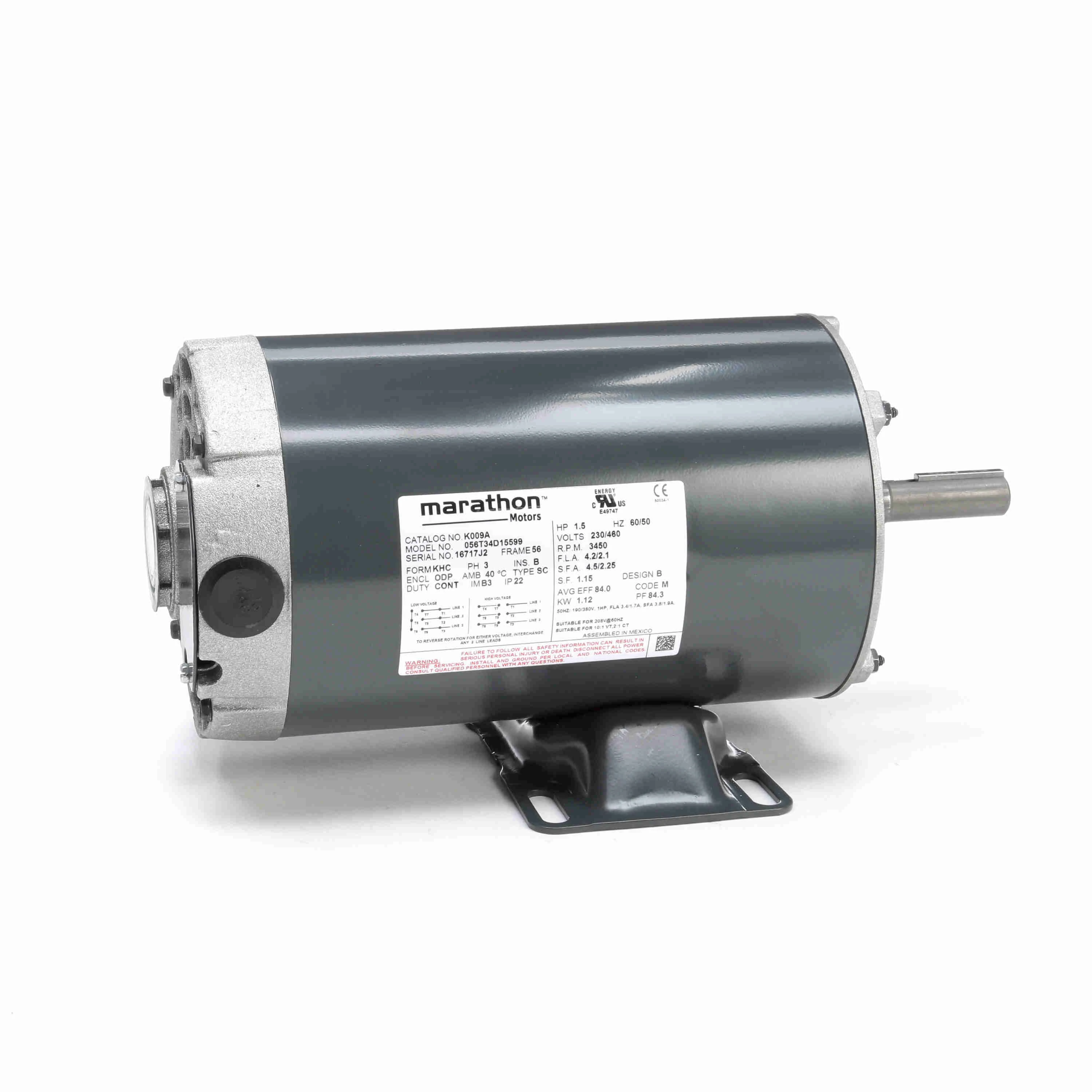

| Item | General Purpose Motor |
| Bearing Type | Ball |
| Cc Number | CC003A |
| Duty Cycle | Continuous |
| Frame | 56 |
| Frame Material | Steel |
| Hp | 1 1/2 hp |
| Hp @ 50hz | 1 1/2 hp |
| Hz | 50/60 Hz |
| Insulation Class | Class B |
| Inverter Rated | Yes |
| Length Less Shaft | 10 13/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Design | Three Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | No |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3450 RPM |
| Nominal Efficiency | 84% |
| Number Of Speeds | 1 |
| Overall Length | 12 11/16" |
| Phase | 3 |
| Rpm Range | 3001-3600 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Full Load Amps | 4.2/2.1A |
| Full Load Amps @ 50hz | 4.2/2.1A |
| Ins. Class | Class B |
| Motor Bearings | Ball |
| Motor Frame Material | Steel |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| No. Of Speeds | 1 |
| Standards | CE, CSA, UL RECOGNIZED |
| Weight | 26 lbs. |
| Ship weight (kg) | 11.7 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 34.77 |
| Ship width (cm) | 18.11 |
| HS code | 8501524000 |
| Country of Origin | MX |
