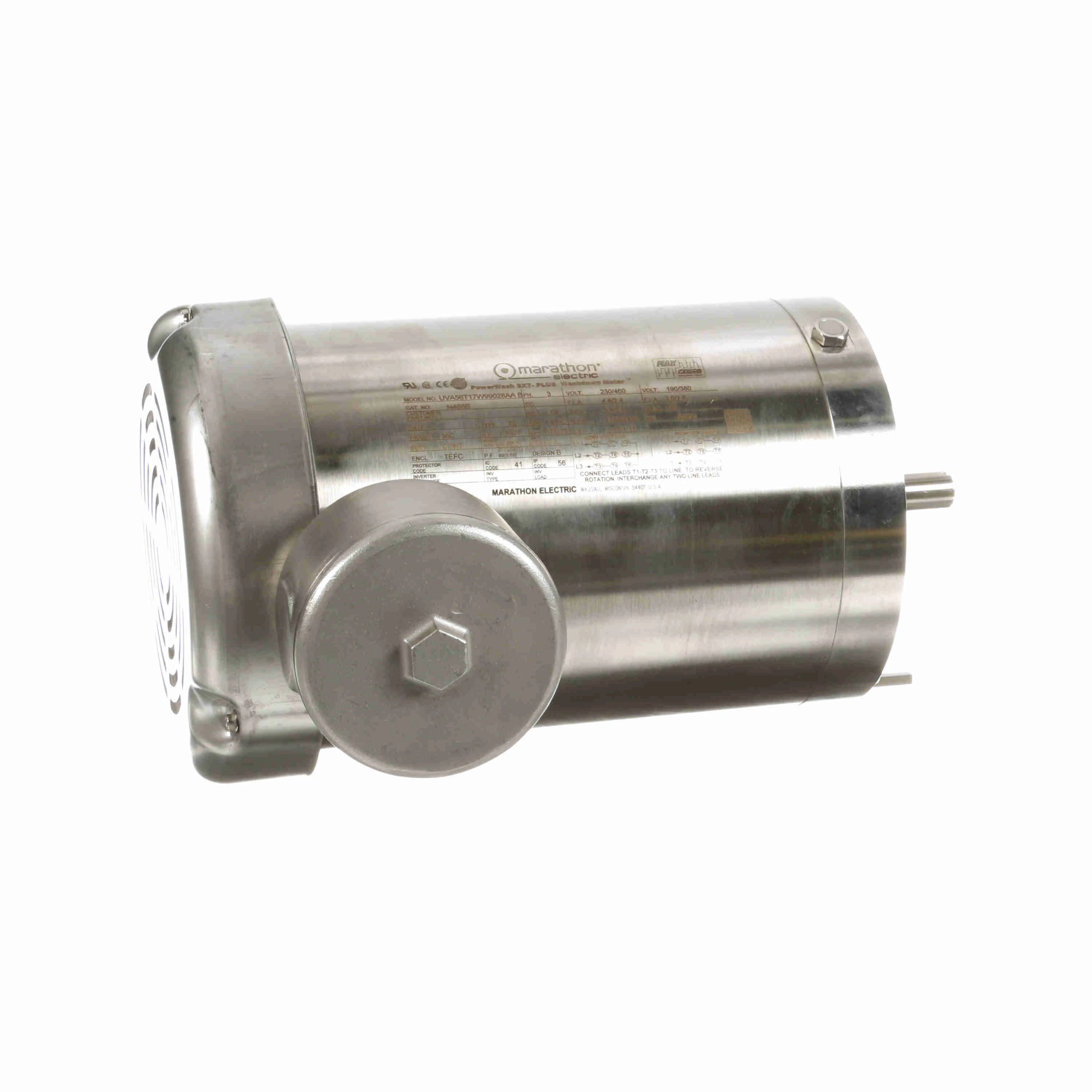

| Item | Washdown Motor |
| Bearing Type | Ball |
| Body Dia. | 6 3/5" |
| Bolt Circle Dia. | 5 7/8" |
| Cc Number | CC003A |
| Conduit Box Location | Exterior |
| Duty Cycle | Continuous |
| Endshield Material | Stainless Steel |
| Finish | Corrosion Resistant |
| Frame | 56C |
| Frame Material | Stainless Steel |
| Hp | 1 1/2 hp |
| Hz | 50/60 Hz |
| Insulation Class | Class F |
| Length Less Shaft | 10 5/8" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Washdown |
| Motor Design | Three Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | No |
| Mounting Type | Face |
| Nameplate Rpm | 1750 RPM |
| Nema Design | B |
| Nominal Efficiency | 86.5% |
| Number Of Speeds | 1 |
| Overall Length | 12 11/16" |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 1/16" |
| Shaft Material | Stainless Steel |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Ship weight (kg) | 22.05 |
| Ship height (cm) | 34.14 |
| Ship length (cm) | 46.51 |
| Ship width (cm) | 34.29 |
| HS code | 8501524000 |
| Country of Origin | US |
