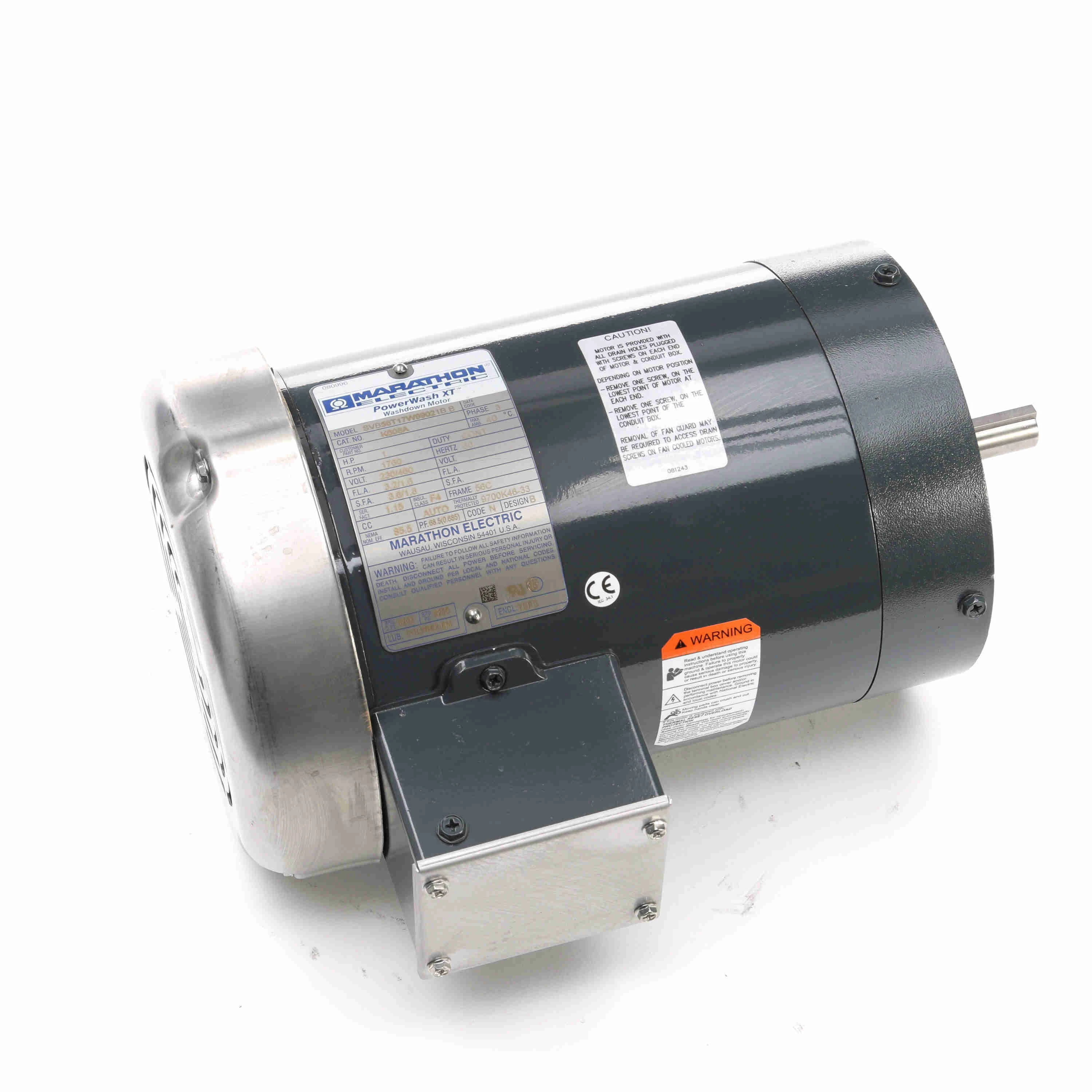

| Item | General Purpose Motor |
| Bearing Type | Ball |
| Cc Number | CC003A |
| Duty Cycle | Continuous |
| Frame | 56C |
| Frame Material | Steel |
| Hp | 1 hp |
| Hz | 60 Hz |
| Insulation Class | Class F |
| Inverter Rated | No |
| Length Less Shaft | 10 13/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Design | Three Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | No |
| Mounting Type | Face |
| Nameplate Rpm | 1760 RPM |
| Nominal Efficiency | 85.5% |
| Number Of Speeds | 1 |
| Overall Length | 12 7/8" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 1/16" |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Full Load Amps | 3.2/1.6A |
| Ins. Class | Class F |
| Manufacturers Warranty Length | 1 yr. |
| Motor Bearings | Ball |
| Motor Frame Material | Steel |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| No. Of Speeds | 1 |
| Standards | CE, CSA, UL RECOGNIZED |
| Weight | 36 lbs. |
| Ship weight (kg) | 15.62 |
| Ship height (cm) | 31.47 |
| Ship length (cm) | 114.3 |
| Ship width (cm) | 106.68 |
| Country of Origin | US |
