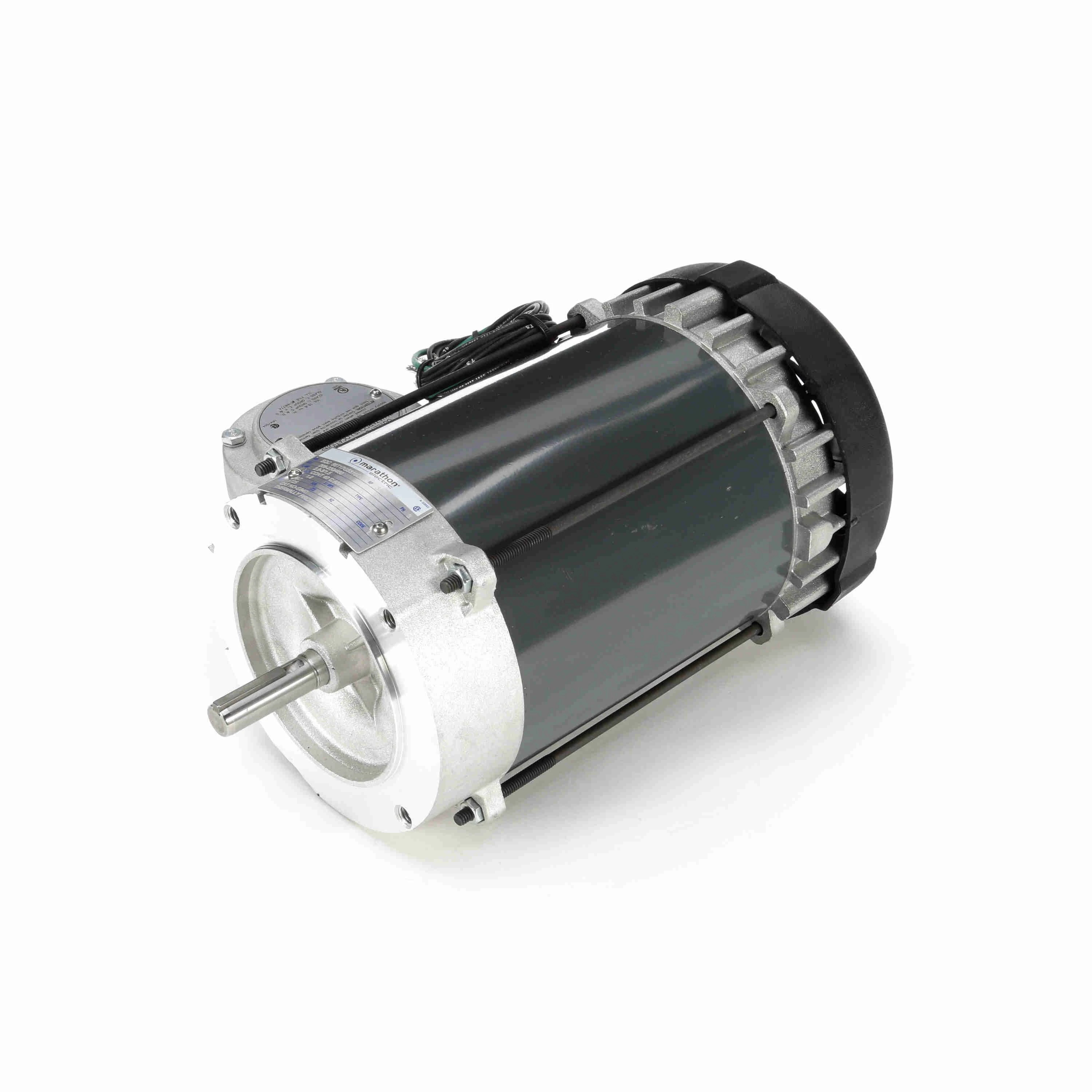

| Item | Hazardous Location Motor |
| Bearing Type | Ball |
| Conduit Box Location | Exterior |
| Duty Cycle | Continuous |
| Frame | 56C |
| Frame Material | Steel |
| Full Load Amps | 3-2.9/1.5A |
| Hazardous Location Class | 1 C, D, 2 F, G |
| Hp | 3/4 hp |
| Hz | 60 Hz |
| Includes | Conduit Box |
| Lead Length | 13" |
| Length Less Shaft | 11 7/8" |
| Max. Ambient Temp. | 104°F |
| Motor Application | Hazardous Location |
| Motor Design | Three Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Automatic |
| Mounting Type | Face |
| Nema Design | B |
| Nominal Efficiency | 75.5% |
| Number Of Speeds | 1 |
| Overall Length | 13 15/16" |
| Phase | 3 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 1/16" |
| Temp. Code | T3B |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
| Hazardous Location Division | Division 1 |
| Ins. Class | Class B |
| Motor Bearings | Ball |
| Motor Frame Material | Steel |
| Nameplate Rpm | 1725 RPM |
| No. Of Speeds | 1 |
| Standards | CSA CERTIFIED, UL LISTED |
| Weight | 29 lbs. |
| Ship weight (kg) | 13.05 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 41.61 |
| Ship width (cm) | 26.67 |
| HS code | 8501514040 |
| Country of Origin | MX |
