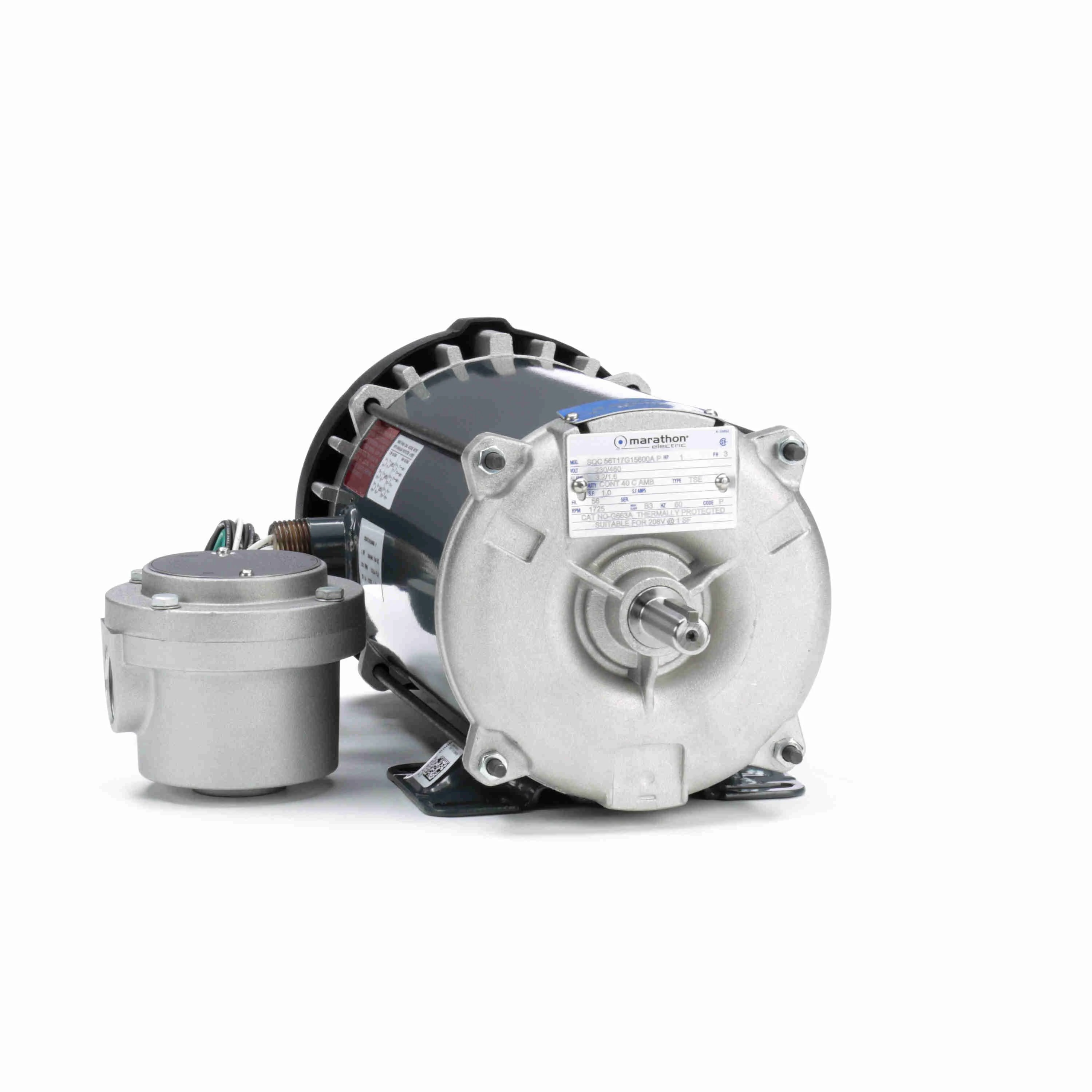

| Item | Hazardous Location Motor |
| Bearing Type | Ball |
| Cc Number | CC003A |
| Conduit Box Location | Exterior |
| Duty Cycle | Continuous |
| Frame | 56 |
| Frame Material | Steel |
| Hazardous Location Class | 1 C, D, 2 F, G |
| Hp | 1 hp |
| Hz | 60 Hz |
| Includes | Explosion Proof Conduit Box |
| Insulation Class | Class B |
| Lead Length | 18" |
| Length Less Shaft | 13 5/8" |
| Max. Ambient Temp. | 104°F |
| Motor Application | Hazardous Location |
| Motor Design | Three Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Automatic |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1725 RPM |
| Nema Design | A |
| Nominal Efficiency | 85.5% |
| Number Of Speeds | 1 |
| Overall Length | 15 9/16" |
| Phase | 3 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 15/16" |
| Temp. Code | T3B |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Full Load Amps | 3.2/1.6A |
| Hazardous Location Division | Division 1 |
| Ins. Class | Class B |
| Motor Bearings | Ball |
| Motor Frame Material | Steel |
| Motor Mounting Type | Rigid Base |
| No. Of Speeds | 1 |
| Standards | CSA CERTIFIED, UL LISTED |
| Weight | 67 lbs. |
| Ship weight (kg) | 30.15 |
| Ship height (cm) | 24.77 |
| Ship length (cm) | 48.26 |
| Ship width (cm) | 27.64 |
| HS code | 8501516040 |
| Country of Origin | MX |
