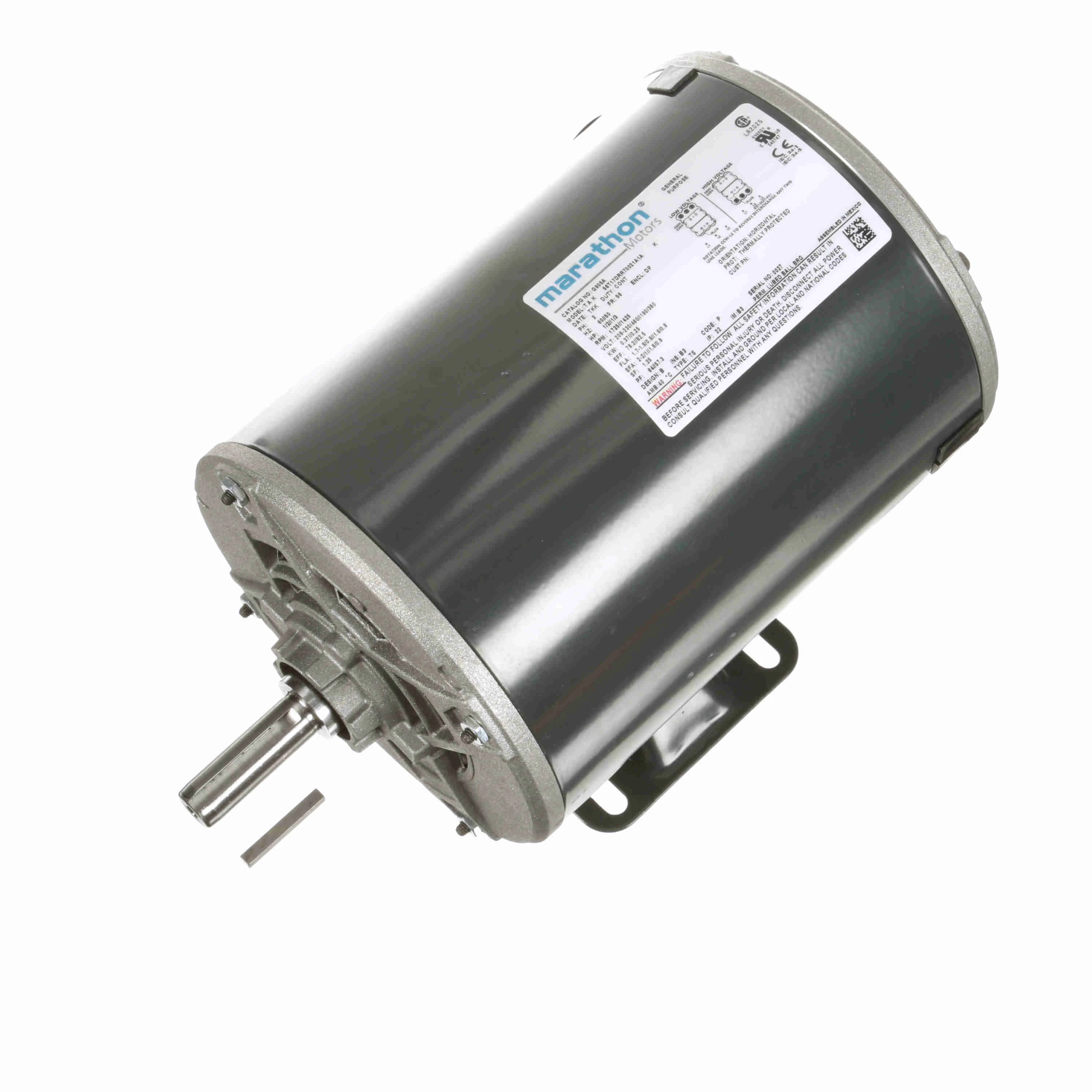

| Item | General Purpose Motor |
| Bearing Type | Ball |
| Duty Cycle | Continuous |
| Frame | 56 |
| Frame Material | Steel |
| Full Load Amps | 1.7-1.8/0.9A |
| Full Load Amps @ 50hz | 1.7-1.8/0.9A |
| Hp | 1/2 hp |
| Hp @ 50hz | 1/2 hp |
| Hz | 50/60 Hz |
| Inverter Rated | No |
| Length Less Shaft | 10 1/8" |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Design | Three Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Manual |
| Mounting Type | Rigid Base |
| Nominal Efficiency | 78.2% |
| Number Of Speeds | 1 |
| Overall Length | 12" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
| Ins. Class | Class B |
| Manufacturers Warranty Length | 1 yr. |
| Motor Bearings | Ball |
| Motor Frame Material | Steel |
| Motor Service Factor | 1.25 |
| Nameplate Rpm | 1725 RPM |
| No. Of Speeds | 1 |
| Standards | CE, CSA, UL RECOGNIZED |
| Weight | 25 lbs. |
| Ship weight (kg) | 11.25 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 40.94 |
| Ship width (cm) | 26.04 |
| HS code | 8501514040 |
| Country of Origin | MX |
