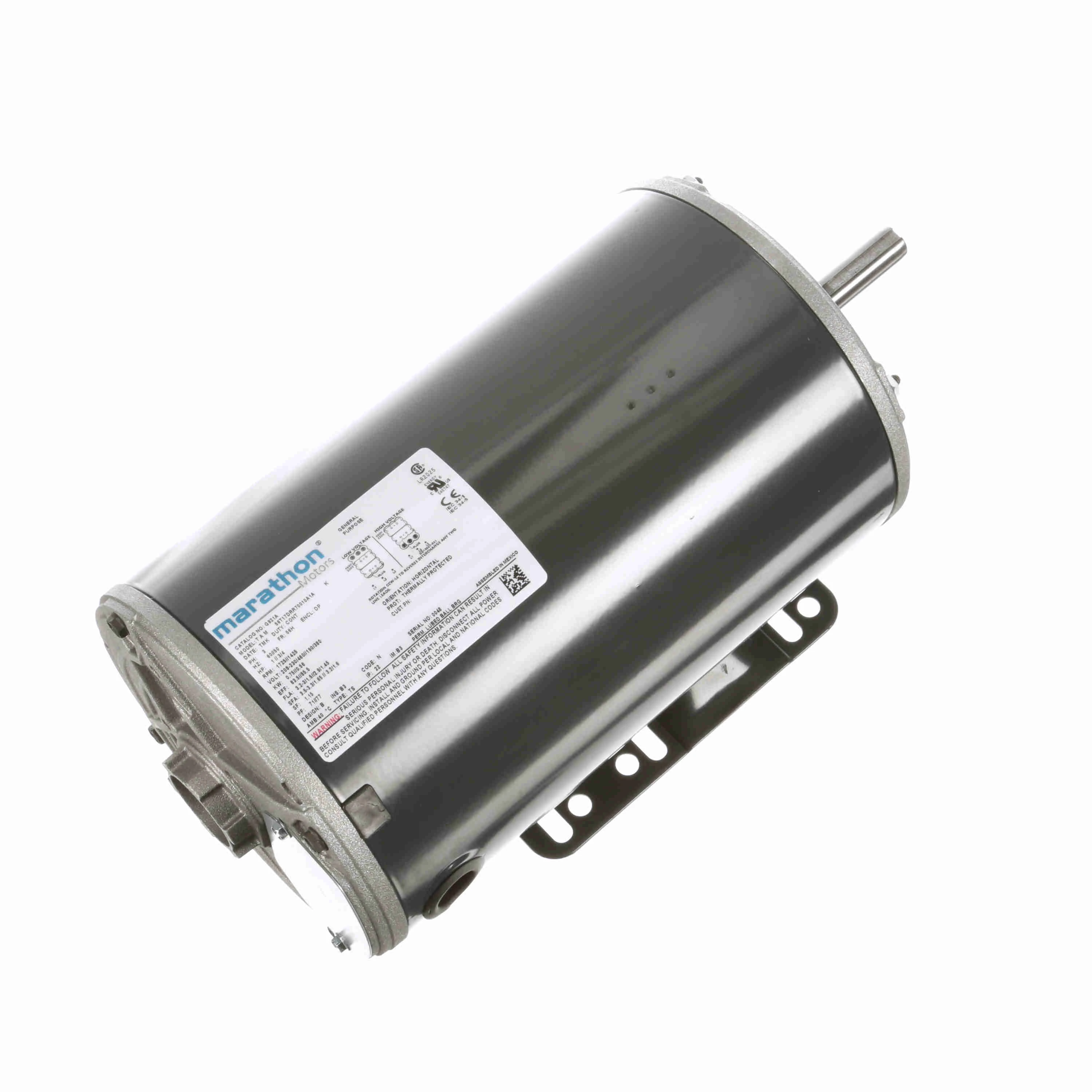

| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 83.5% |
| Efficiency Group | Premium |
| Frame | 56H |
| Frame Material | Rolled Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 3.2-3/1.5A |
| Full Load Amps @ 50hz | 3.2-3/1.5A |
| Hp | 1 hp |
| Insulation Class | Class B |
| Inverter Rated | No |
| Length Less Shaft | 12 1/8" |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1725 RPM |
| Number Of Speeds | 1 |
| Overall Length | 14" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Thermal Protection | Manual |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
| Warranty | 1 yr. |
| Hp @ 50hz | 1 hp |
| Hz | 50/60 Hz |
| Ins. Class | Class B |
| Manufacturers Warranty Length | 1 yr. |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Frame Material | Steel |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Thermal Protection | Manual |
| No. Of Speeds | 1 |
| Nominal Efficiency | 83.5% |
| Standards | CE, CSA, UL RECOGNIZED |
| Weight | 42 lbs. |
| Ship weight (kg) | 18.9 |
| Ship height (cm) | 21.89 |
| Ship length (cm) | 41.61 |
| Ship width (cm) | 26.67 |
| HS code | 8501524000 |
| Country of Origin | MX |
| Product | Model | Efficiency Group | Frame | Full Load Amps | HP | Hz | Length Less Shaft | Motor Thermal Protection | Nameplate RPM | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
048T17D11009 | - | 48 | 1/.5 | 1/4 | 60 | - | - | - | €354.97 | |
 |
056T17DRR70023A1 | Premium Efficient | 56 | 2.6-2.6/1.3 | 3/4 | 50/60 | 10.625" | Manual | 1725 | €629.07 | |
 |
143TTDR16056 | NEMA Premium Efficient | 143T | 3.4 | 1 | 60 | 11.75" | None | 1760 | €764.89 |
