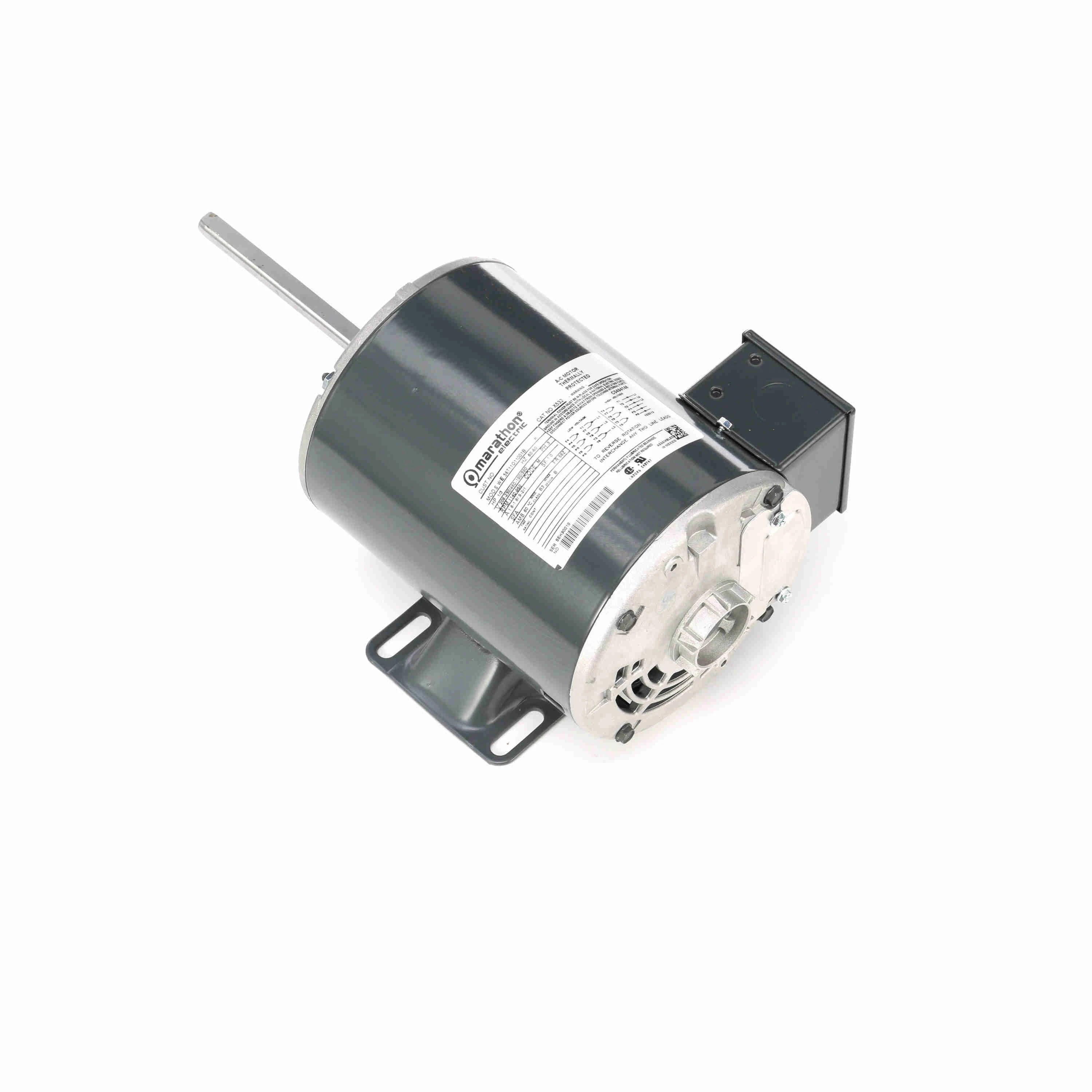

LEESON 056T11O11001 X532 / 56T11O11001B Condenser Fan Motor, 0.33 HP, 3 Ph, 60/50 Hz, 208-230/460 and 190/380V, 1200 and 1000 RPM
Get it by Tuesday, Jun 17
€600.68 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | HVAC Motor |
| Ambient Temp. | 60°C |
| Bearing Type | Ball |
| Body Dia. | 5.688" |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 Only |
| Design | B |
| Duty Cycle | Continuous |
| Efficiency | 72% |
| Enclosure Type | Open Air Over |
| Features | Shaft Slinger, Threaded Lead Exit |
| Frame | 56Z |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 0.9/1.8A |
| Hp | 1/3 hp |
| Insulation Class | Class B |
| Length Less Shaft | 8 3/8" |
| Motor Application | HVAC/R |
| Motor Design | Three Phase |
| Motor Mounting Position | Horizontal Shaft Up/Vertical Shaft Up |
| Motor Shaft Design | Keyed With Single Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Condenser Fan |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1140 RPM |
| Number Of Speeds | 1 |
| Overall Length | 13 3/8" |
| Phase | 3 |
| Power | 0.246 kW |
| Rpm | 1200 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 5" |
| Shaft Orientation | Horizontal |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
| Hz | 50/60 Hz |
| Ins. Class | Class B |
| Max. Ambient Temp. | 60°C |
| Motor Bearings | Ball |
| Motor Enclosure Design | Open Air Over |
| Motor Frame Material | Steel |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Thermal Protection | Auto |
| No. Of Speeds | 1 |
| Nominal Efficiency | 72% |
| Output Watts | 250 W |
| Standards | CSA CERTIFIED (LR2025), UL RECOGNIZED |
| Weight | 22 lbs. |
| Ship weight (kg) | 9.9 |
| Ship height (cm) | 22.23 |
| Ship length (cm) | 34.93 |
| Ship width (cm) | 20.02 |
| HS code | 8501514040 |
| Country of Origin | MX |
| Product | Model | Assembly | Duty | Enclosure | Frame | Full Load Amps | HP | Insulation Class | Item | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5K48TN6119S | - | Continuous Air-Over | Open Dripproof | 56HZ | 5.1-5.0/2.5 | 1.5 | B | Condenser Fan Motor | €779.71 | |
 |
056T11O5306 | F1 ONLY | CONTINUOUS AOM | OPAO | 56HZ | 5.4-5.4/2.7 | 1.5 | H | HVAC Motor | €1,016.15 | |
 |
056T11O15511 | F2 ONLY | CONTINUOUS AOM | OPAO | 56HZ | 2.7-3/1.5 | 3/4 | H | HVAC Motor | €798.22 | |
 |
056T11O5305 | F1 ONLY | CONTINUOUS AOM | OPAO | 56HZ | 4-4.2/2.1 | 1 | H | HVAC Motor | €946.40 | |
 |
056T11O5310 | F1 ONLY | CONTINUOUS AOM | OPAO | 56HZ | 7.2-6.8/3.4 | 2 | B | HVAC Motor | €952.56 | |
 |
056T8O15504 | F1 ONLY | Continuous | Open | 56HZ | 7-7/3.5 | 1.5 | H | HVAC Motor | €1,101.35 | |
 |
056T8O5306 | W8 | CONTINUOUSAOM | OPAO | 56HZ | 5.1-5.3/2.65 | 1 | H | HVAC Motor | €992.08 |
