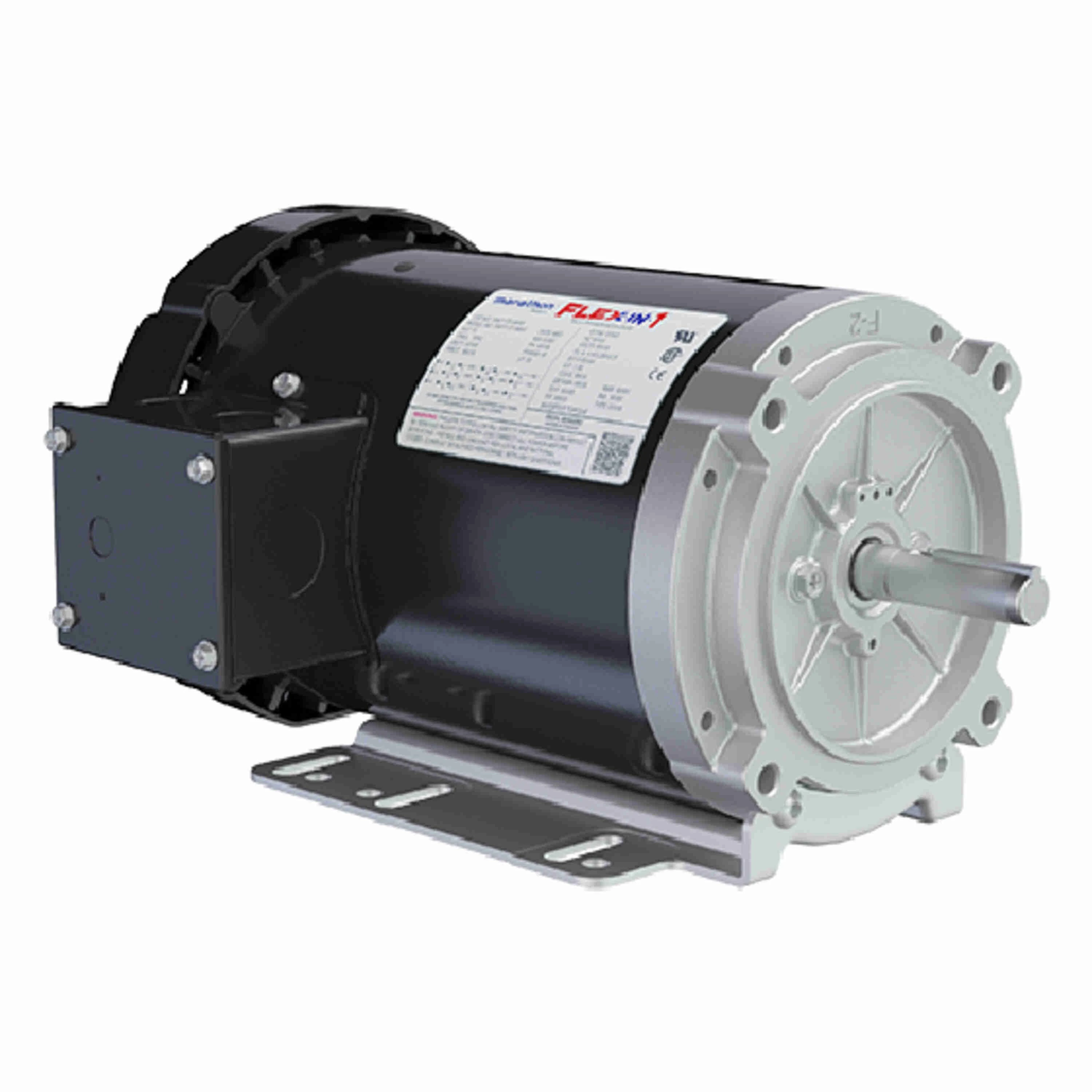

| Item | Motor |
| Bearing Type | Ball |
| Duty Cycle | Continuous |
| Frame | 56HC |
| Frame Material | Rolled Steel |
| Full Load Amps | 3.1-3.3/1.6A |
| Hp | 3/4 hp |
| Hz | 60 Hz |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Max. Ambient Temp. | 40°C |
| Motor Design | Three Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Universal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CCW |
| Motor Thermal Protection | No |
| Mounting Type | Universal |
| Nameplate Rpm | 1140 RPM |
| Nema Design | F |
| Nominal Efficiency | 75.2% |
| Number Of Speeds | 1 |
| Overall Length | 12 1/16" |
| Phase | 3 |
| Rpm Range | 1101-1200 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
| Ins. Class | Class F |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Motor Service Factor | 1.15 |
| No. Of Speeds | 1 |
| Standards | CE, CSA, UL |
| Weight | 32 lbs. |
| Ship weight (kg) | 14.4 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 40.94 |
| Ship width (cm) | 26.04 |
| Country of Origin | MX |
