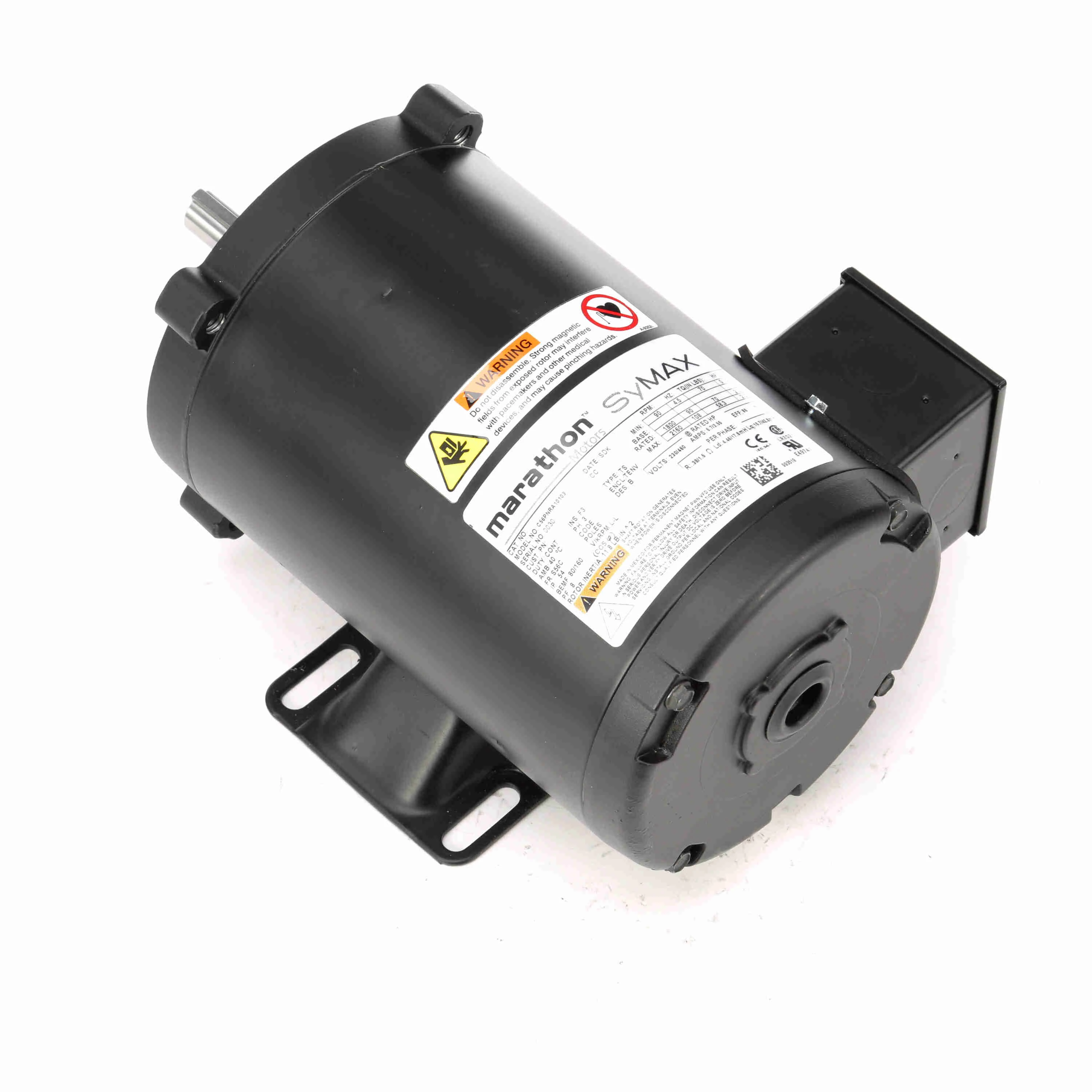

LEESON 056PNRA10103 SY005 / 56PNRA10103A Fan and Blower Motor, 2 HP, 3 Phase, 90 Hz, 230/460V, 1800 RPM
Get it by Wednesday, Jun 18
€1,410.41 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Assembly | F1 (F2 Modification Available) |
| Conduit Box Position | F1/F2 Capable |
| Design | B |
| Duty Cycle | Continuous |
| Efficiency | Not Applicable |
| Frame | S56Z |
| Frequency | 90 Hz |
| Full Load Amps | 6.7/3.55A |
| Hp | 2 hp |
| Insulation Class | Class F |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Mounting Position | Horizontal |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | No |
| Motor Type | Permanent Magnet AC |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800 RPM |
| Number Of Speeds | 1 |
| Phase | 3 |
| Power | 1.49 kW |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2.06" |
| Voltage | 230/460V AC |
| Ship weight (kg) | 13.95 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 32.39 |
| Ship width (cm) | 24.13 |
| HS code | 8501524000 |
| Country of Origin | MX |
| Product | Model | Full Load Amps | HP | kW | Price | |
|---|---|---|---|---|---|---|
 |
056PNRA10100 | 1.9/0.8 | 1/2 | 0.37 | €742.81 | |
 |
056PNRA10101 | 3.44/1.71 | 1 | 0.75 | €863.53 | |
 |
056PNRA10102 | 5.4/2.7 | 1.5 | 1.12 | €1,051.05 |
