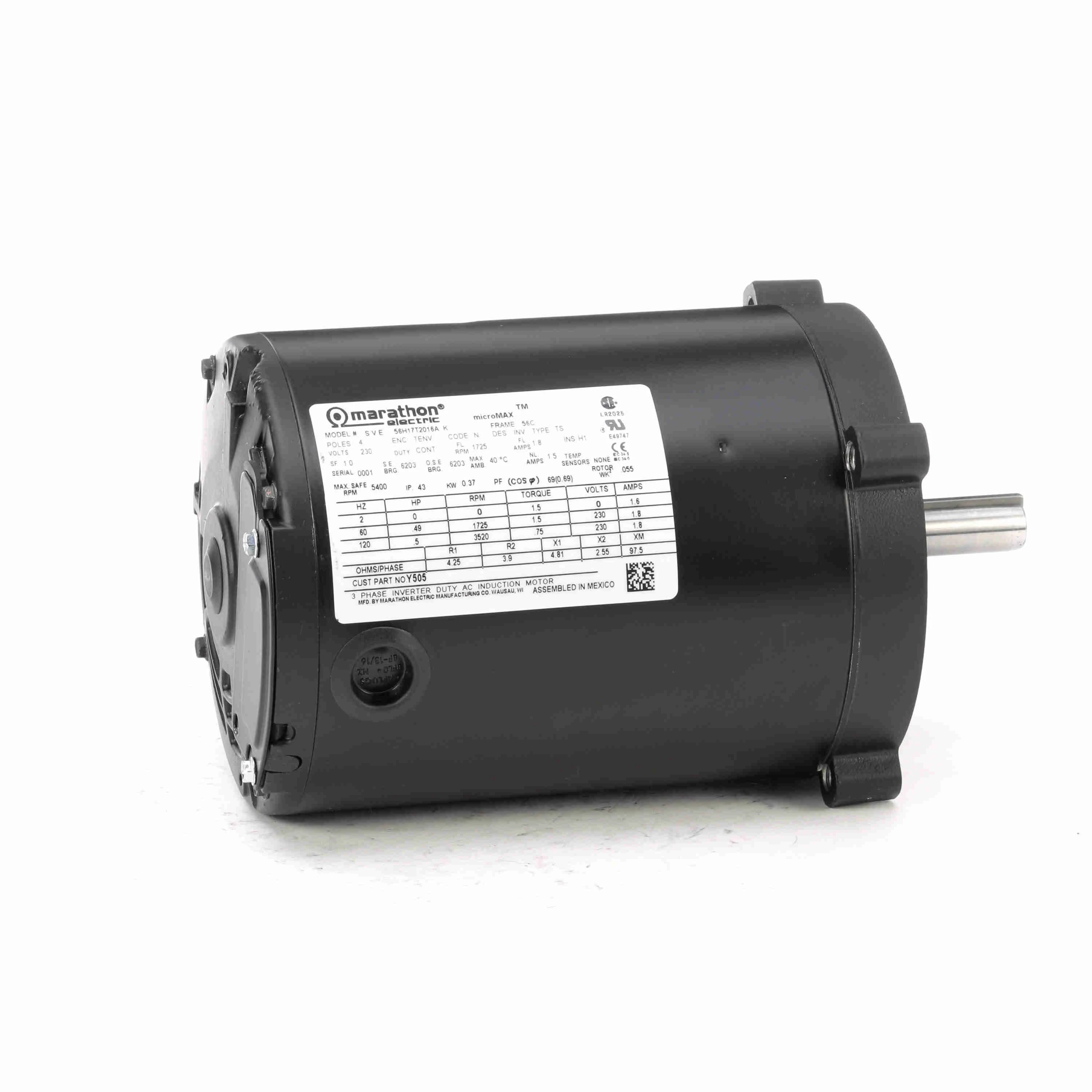

| Item | Vector Motor |
| Ambient Temp. | 40°C |
| Application | Crane |
| Assembly | F1 Only |
| Color | Black |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 Only |
| Constant Torque | 1000:1 |
| Design | A |
| Duty Cycle | Continuous |
| Efficiency | 74% |
| Encoder Acceptable | No |
| Frame | 56C |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 1.8A |
| Full Load Efficiency | 74% |
| Full Load Torque | 1.5 lbs.-ft. |
| Hp | 1/2 hp |
| Insulation Class | Class H |
| Length Less Shaft | 7 7/8" |
| Max. Ambient Temp. | 40°C |
| Max. Operating Frequency | 120 Hz |
| Max. Speed | 5400 RPM |
| Motor Bearings | Ball |
| Motor Design | Three Phase |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | C Face Footless |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | No |
| Motor Type | Squirrel Cage Inverter Rated |
| Mounting Type | C Face, Footless |
| Nameplate Rpm | 1725 RPM , 1800 RPM |
| Nema Design | A |
| Nominal Efficiency | 74% |
| Number Of Speeds | 1 |
| Orientation | Horizontal |
| Overall Length | 9.938" |
| Phase | 3 |
| Power | 0.37 kW |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2.062" |
| Speed Range | 1000:1 |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230V AC |
| Finish | Black |
| Hz | 60 Hz |
| Ins. Class | Class H |
| Motor Application | Crane |
| Motor Frame Material | Steel |
| Motor Service Factor | 1 |
| No. Of Speeds | 1 |
| Standards | CE, UL RECOGNIZED |
| Torque | 1.5 lbs.-ft. |
| Weight | 24 lbs. |
| Ship weight (kg) | 10.8 |
| Ship height (cm) | 17.63 |
| Ship length (cm) | 28.58 |
| Ship width (cm) | 17.78 |
| HS code | 8501514040 |
| Country of Origin | MX |
