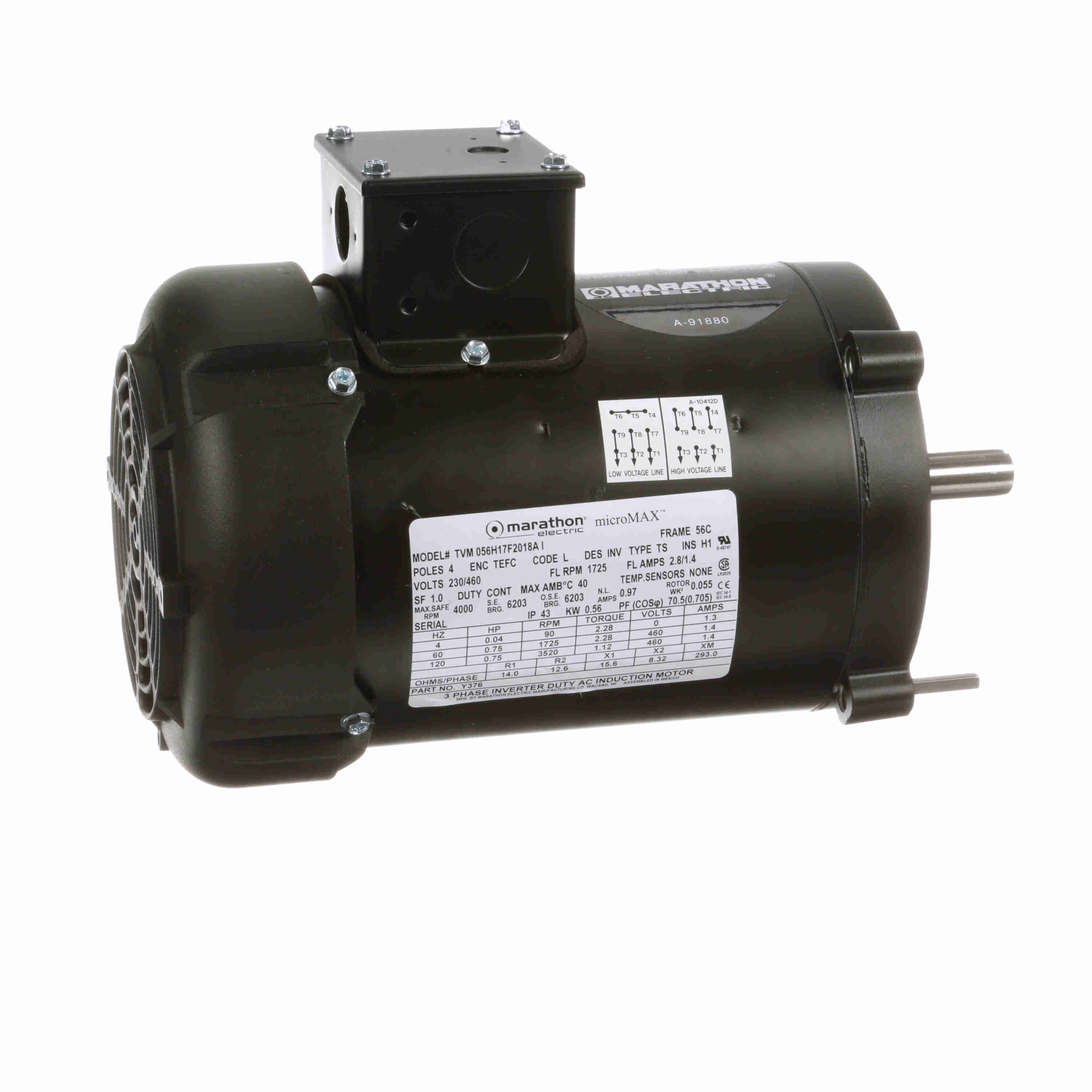

| Item | Vector Motor |
| Ambient Temp. | 40°C |
| Application | Crane |
| Assembly | F3 |
| Color | Black |
| Conduit Box Location | Exterior |
| Conduit Box Position | F3 |
| Constant Torque | 1000:1 |
| Design | B |
| Duty Cycle | Continuous |
| Efficiency | 75.5% |
| Encoder Acceptable | No |
| Frame | 56C |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 2.8/1.4A |
| Full Load Efficiency | 75.5% |
| Full Load Torque | 2.28 lbs.-ft. |
| Hp | 3/4 hp |
| Insulation Class | Class H |
| Length Less Shaft | 9 1/8" |
| Max. Ambient Temp. | 40°C |
| Max. Operating Frequency | 120 Hz |
| Max. Speed | 5400 RPM |
| Motor Bearings | Ball |
| Motor Design | Three Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | C Face Footless |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | No |
| Motor Type | Squirrel Cage Inverter Rated |
| Mounting Type | C Face, Footless |
| Nameplate Rpm | 1725 RPM , 1800 RPM |
| Nema Design | B |
| Nominal Efficiency | 75.5% |
| Number Of Speeds | 1 |
| Orientation | Horizontal |
| Overall Length | 11.188" |
| Phase | 3 |
| Power | 0.56 kW |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2.062" |
| Speed Range | 1000:1 |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Finish | Black |
| Hz | 60 Hz |
| Ins. Class | Class H |
| Motor Application | Crane |
| Motor Frame Material | Steel |
| Motor Service Factor | 1 |
| No. Of Speeds | 1 |
| Standards | CE, UL RECOGNIZED |
| Torque | 2.28 lbs.-ft. |
| Weight | 21 lbs. |
| Ship weight (kg) | 9.45 |
| Ship height (cm) | 20.47 |
| Ship length (cm) | 31.6 |
| Ship width (cm) | 23.19 |
| HS code | 8501514040 |
| Country of Origin | MX |
