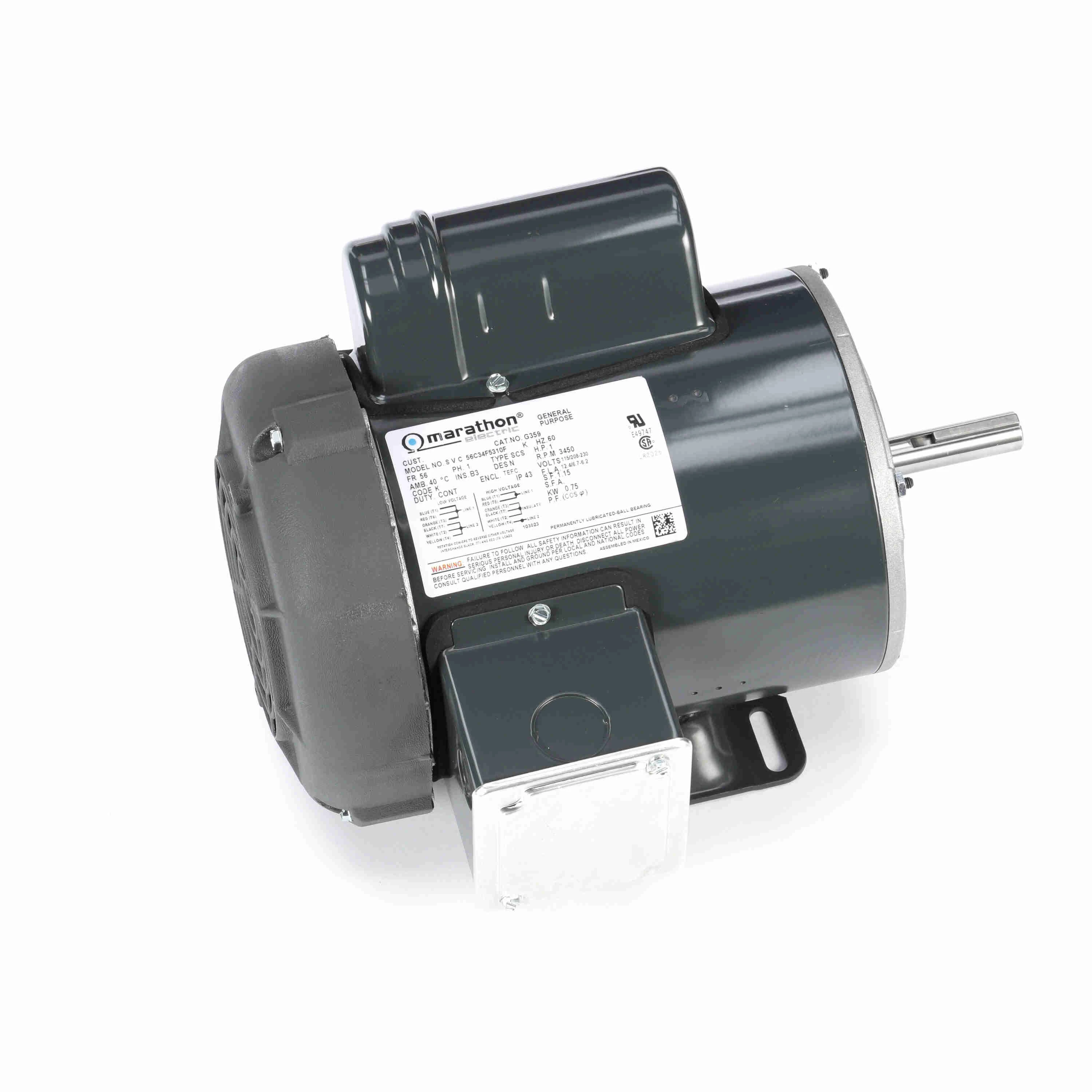

| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Assembly | F1 Only |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency | 72% |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 12.4/6.2-6.7A |
| Hp | 1 hp |
| Insulation Class | Class B |
| Inverter Rated | No |
| Length Less Shaft | 10" |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3450 RPM |
| Nema Design | N |
| Number Of Speeds | 1 |
| Orientation | Horizontal |
| Output Kw | 0.75 kW |
| Overall Length | 12 5/16" |
| Phase | 1 |
| Power | 0.75 kW |
| Rpm Range | 3001-3600 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 3/8" |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V AC |
| Warranty | 1 yr. |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Manufacturers Warranty Length | 1 yr. |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Frame Material | Steel |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Thermal Protection | None |
| No. Of Speeds | 1 |
| Nominal Efficiency | 72% |
| Standards | CE, CSA, UL RECOGNIZED |
| Weight | 30 lbs. |
| Ship weight (kg) | 13.5 |
| Ship height (cm) | 23.16 |
| Ship length (cm) | 40.94 |
| Ship width (cm) | 26.04 |
| HS code | 8501406040 |
| Country of Origin | MX |
