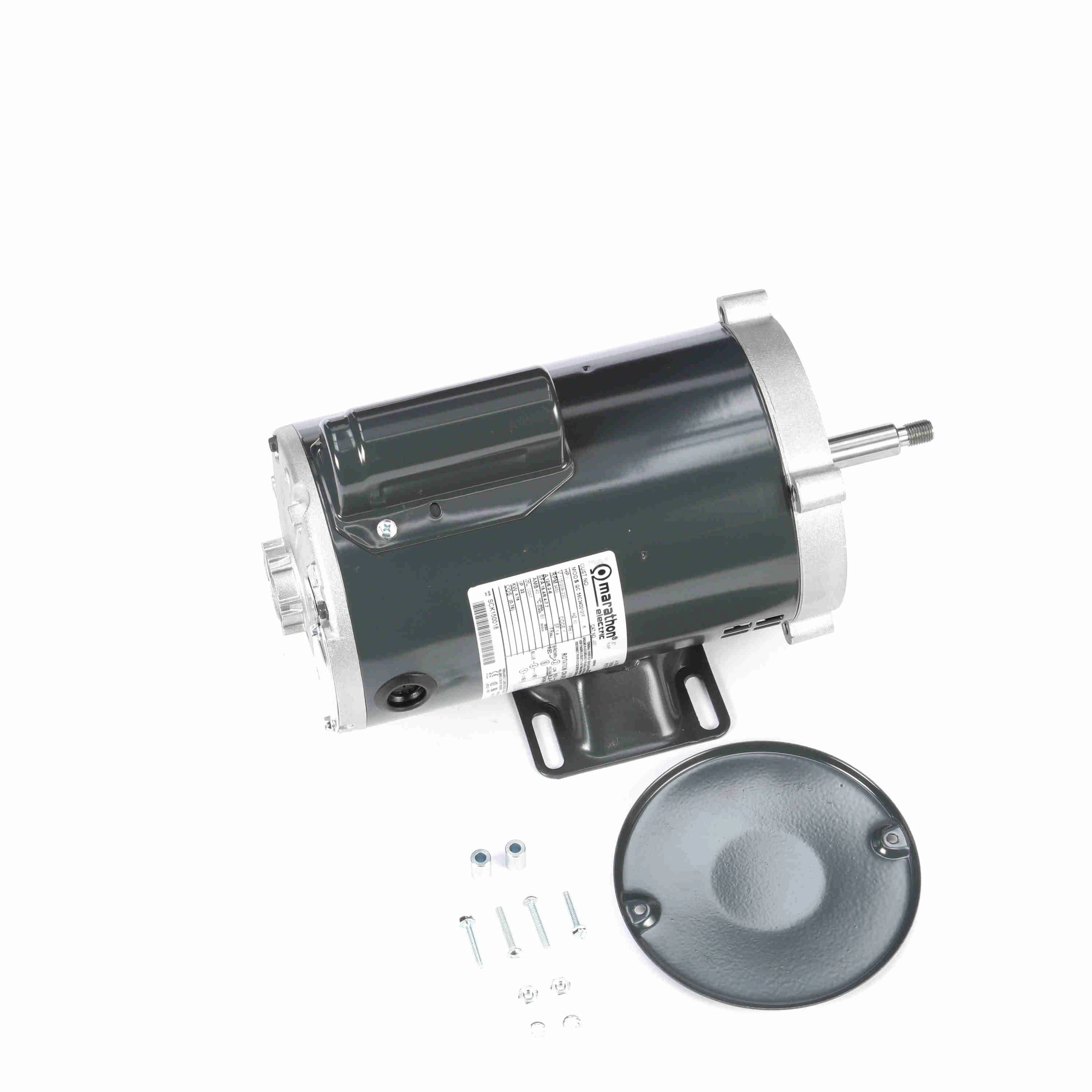

| Item | Pump Motor |
| Amps | 12/6-6.2A |
| Assembly | F1 Only |
| Bearing Type | Ball |
| Body Dia. | 5 3/5" |
| Bolt Circle Dia. | 5 7/8" |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 Only |
| Design | Definite Duty |
| Duty Cycle | Continuous |
| Efficiency | Not Applicable |
| Frame | 56J |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 12/6.2-6A |
| Height | 7.812" |
| Hp | 1 hp |
| Includes | Shaft Slinger, Drip Cover |
| Length Less Shaft | 9 7/8" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Pump |
| Motor Enclosure Design | Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | CW |
| Motor Thermal Protection | Automatic |
| Motor Type | Capacitor Start Induction Run |
| Mounting Type | Face, Base |
| Nameplate Rpm | 3600 RPM |
| Nema Design | None |
| Nominal Efficiency | 72% |
| Number Of Speeds | 1 |
| Orientation | Horizontal |
| Overall Length | 12.438" |
| Phase | 1 |
| Power | 0.75 kW |
| Service Factor | 1.4 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 5/8" |
| Shaft Material | Stainless Steel |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V AC |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Frame Material | Steel |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.4 |
| No. Of Speeds | 1 |
| Standards | CE MARK, CSA CERTIFIED, UL RECOGNIZED |
| Weight | 23 lbs. |
| Ship weight (kg) | 10.35 |
| Ship height (cm) | 22.23 |
| Ship length (cm) | 34.93 |
| Ship width (cm) | 20.02 |
| HS code | 8501406040 |
| Country of Origin | MX |
