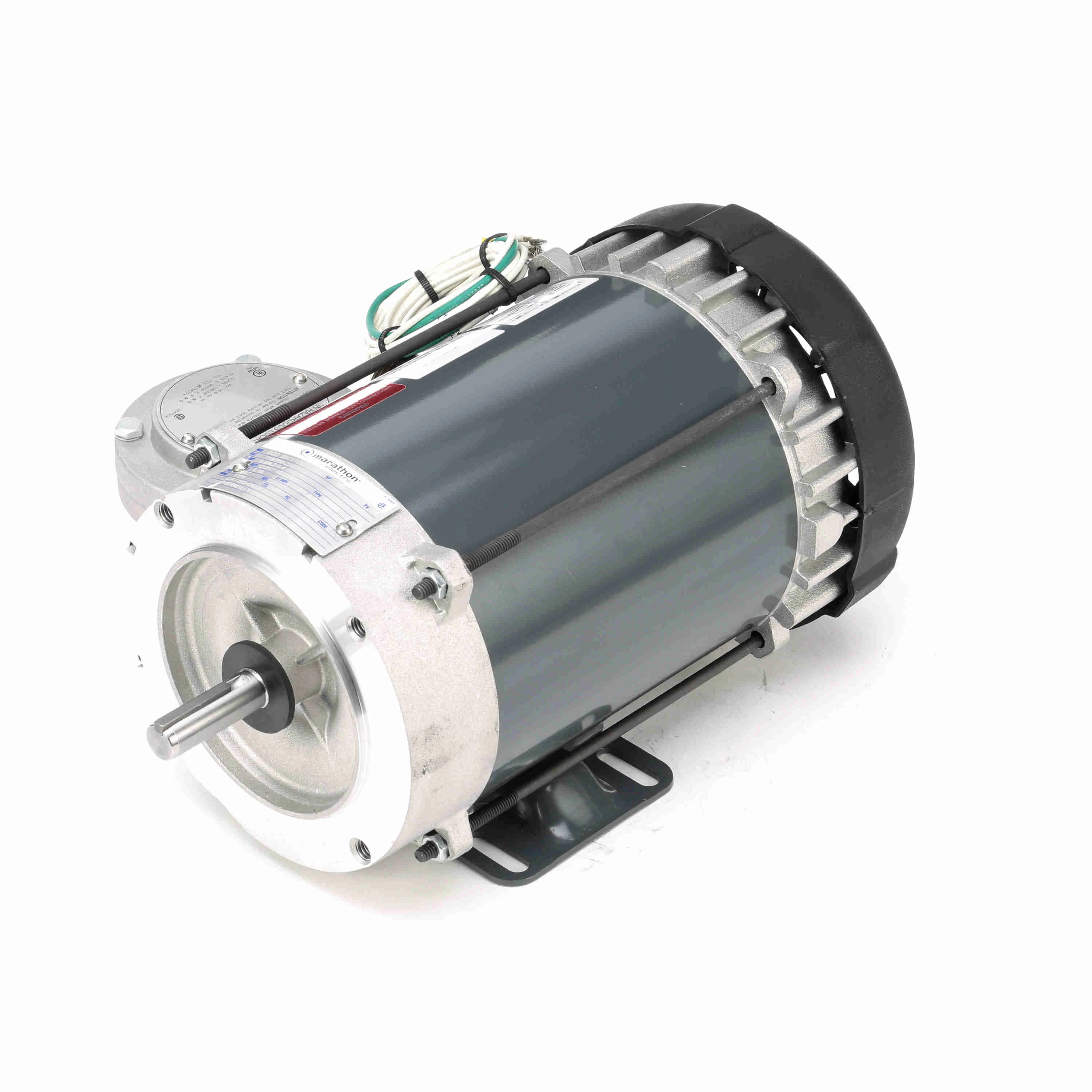

LEESON 056C17G5328 G872 / 56C17G5328B Explosion Proof Motor, 0.50 HP, 1 Phase, 60 Hz, 115/230 V, 1800 RPM
Get it by Tuesday, Jun 17
€945.15 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Explosion Proof Motor |
| Ambient Temp. | 40°C |
| Assembly | F1 Only |
| Bearing Type | Ball |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency | 66% |
| Enclosure Type | Explosion Proof Fan Cooled |
| Frame | 56C |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 8.8/4.2-4.4A |
| Hazardous Location Class | Class 1 C, D, 2 F, G |
| Hazardous Location Division | Division 1 |
| Hp | 1/2 hp |
| Includes | Explosion Proof Conduit Box |
| Insulation Class | Class F |
| Lead Length | 18" |
| Length Less Shaft | 11 7/8" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Hazardous Location |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face, Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Automatic |
| Motor Type | Capacitor Start |
| Mounting Type | C Face, Rigid Base |
| Nameplate Rpm | 1725 RPM |
| Nema Design | No Design Code |
| Nominal Efficiency | 66% |
| Number Of Speeds | 1 |
| Orientation | Horizontal |
| Output Rating | 0.37 kW |
| Overall Length | 13.938" |
| Phase | 1 |
| Power | 0.37 kW |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2.062" |
| Temp. Code | T3B |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V |
| Ship weight (kg) | 13.05 |
| Ship height (cm) | 23.16 |
| Ship length (cm) | 40.94 |
| Ship width (cm) | 26.04 |
| HS code | 8501404040 |
| Country of Origin | MX |
| Product | Model | Full Load Amps | HP | Insulation Class | kW | NEMA Design | RPM | Service Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
056C17G5327 | 13.4/6.8-6.7 | 1 | B | 0.75 | N | 1800 | 1.0 | €1,120.48 | |
 |
056C17G5326 | 11/5.4-5.5 | 3/4 | B | 0.56 | NO DESIGN CODE | 1800 | 1.0 | €1,055.67 | |
 |
056C34G5314 | 10.6/5.3-5.3 | 3/4 | B | 0.56 | NO DESIGN CODE | 3600 | 1.0 | €877.86 |
