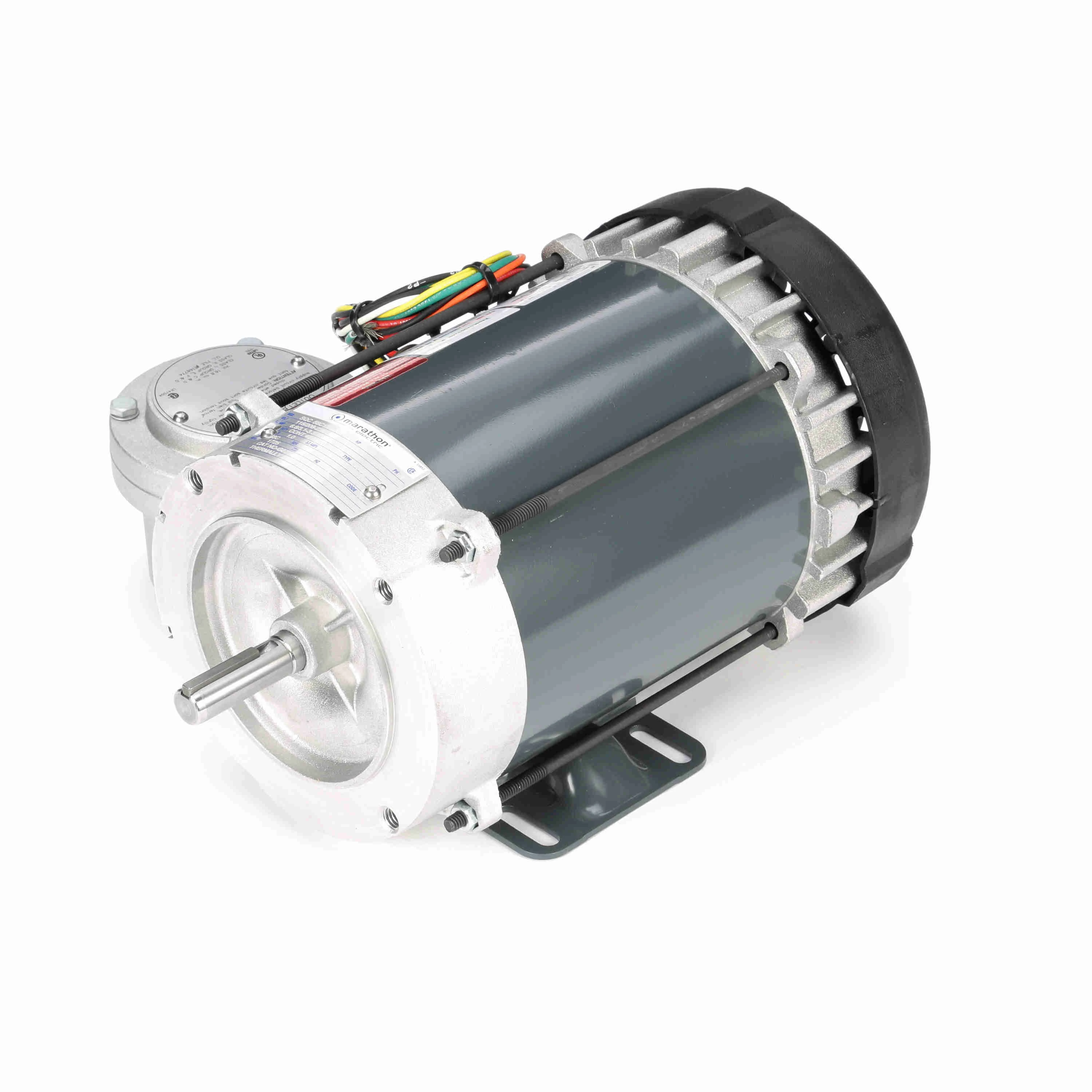

| Item | Explosion Proof Motor |
| Ambient Temp. | 40°C |
| Assembly | F1 Only |
| Bearing Type | Ball |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency | 55% |
| Enclosure Type | Explosion Proof Fan Cooled |
| Frame | 56C |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 6.6/3.1-3.3A |
| Hazardous Location Class | EXP PROOF CL I GR C&, D CL II GR F&, G T3B |
| Hazardous Location Division | Division 1 |
| Hp | 1/3 hp |
| Includes | Explosion Proof Conduit Box |
| Insulation Class | Class B |
| Lead Length | 18" |
| Length Less Shaft | 11 3/8" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Hazardous Location |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face, Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Thermal Protection | Automatic |
| Motor Type | Capacitor Start |
| Mounting Type | C Face, Rigid Base |
| Nameplate Rpm | 1725 RPM |
| Nema Design | N |
| Nominal Efficiency | 55% |
| Number Of Speeds | 1 |
| Orientation | Horizontal |
| Output Rating | 0.246 kW |
| Overall Length | 13.438" |
| Phase | 1 |
| Power | 0.246 kW |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2.062" |
| Temp. Code | T3B |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V |
| Hz | 60 |
| Ins. Class | Class B |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Frame Material | Steel |
| Motor Service Factor | 1 |
| No. Of Speeds | 1 |
| Standards | CSA CERTIFIED, UL LISTED |
| Weight | 30 lbs. |
| Ship weight (kg) | 13.5 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 40.16 |
| Ship width (cm) | 36.35 |
| HS code | 8501404040 |
| Country of Origin | MX |
