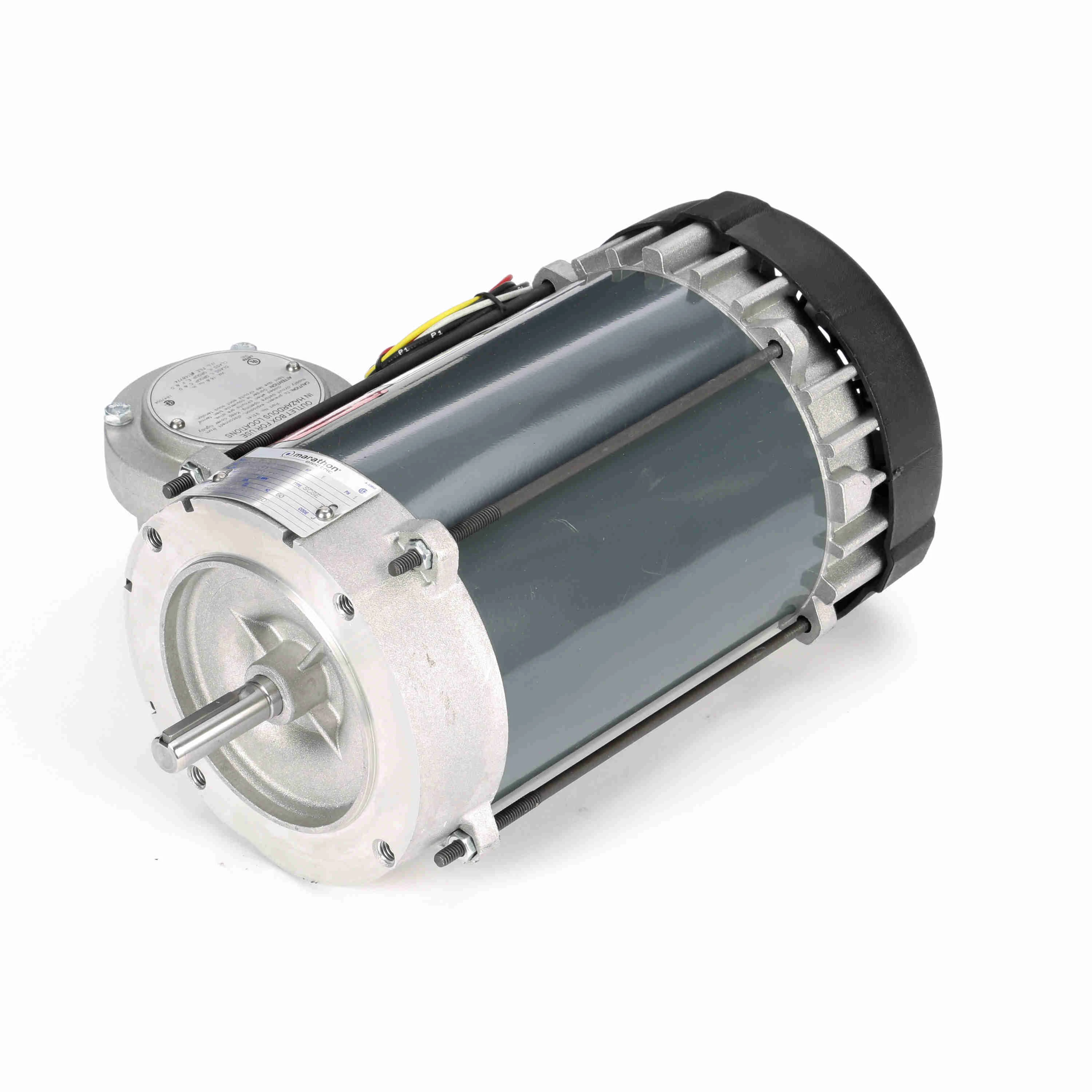

LEESON 056C17G5323 G870 / 56C17G5323G Explosion Proof Motor, 1 HP, 1 Phase, 60 Hz, 115/230 V, 1800 RPM
Get it by Tuesday, Jun 17
€1,092.08 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Hazardous Location Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency Group | Standard |
| Enclosure Type | Hazardous Location |
| Frame | 56C |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 13.4/6.8-6.7A |
| Hazardous Location Class | 1C, D/2F, G |
| Hazardous Location Division | Division 1 |
| Hp | 1 hp |
| Includes | Explosion Proof Conduit Box |
| Insulation Class | Class B |
| Lead Length | 18" |
| Length Less Shaft | 12 3/8" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Hazardous Location |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Automatic |
| Motor Type | Capacitor Start |
| Mounting Type | Face |
| Nameplate Rpm | 1725 RPM |
| Nema Design | No Design Code |
| Nominal Efficiency | 72% |
| Number Of Speeds | 1 |
| Overall Length | 14.438" |
| Phase | 1 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 1/16" |
| Temp. Code | T3B |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V |
| Hz | 60 |
| Ins. Class | Class B |
| Motor Bearings | Ball |
| Motor Frame Material | Steel |
| Motor Service Factor | 1 |
| No. Of Speeds | 1 |
| Standards | CSA CERTIFIED, UL LISTED |
| Weight | 80 lbs. |
| Ship weight (kg) | 15.3 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 41.61 |
| Ship width (cm) | 26.67 |
| HS code | 8501406040 |
| Country of Origin | MX |
| Product | Model | Frame | Full Load Amps | Hazardous Location Class | HP | Item | Length Less Shaft | Nameplate RPM | NEMA Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056C17E5319 | 56C | 4.8/2.3-2.4 | 1 C,D / 2 F,G | 1/4 | Hazardous Location Motor | 9 15/16" | 1725 | None | €764.89 | |
 |
056C17G5320 | 56C | 6.6/3.1-3.3 | 1 C,D / 2 F,G | 1/3 | Hazardous Location Motor | 11.375" | 1725 | None | €861.20 | |
 |
056C17G5321 | 56C | 8.8/4.2-4.4 | 1 C,D / 2 F,G | 1/2 | Hazardous Location Motor | 11.875" | 1725 | None | €935.28 | |
 |
056C17G5322 | 56C | 11.0/5.4-5.5 | 1 C,D / 2 F,G | 3/4 | Hazardous Location Motor | 12.375" | 1725 | None | €1,049.48 | |
 |
056C34G5311 | 56C | 8.4/4.0-4.2 | 1 C,D / 2 F,G | 1/2 | Hazardous Location Motor | 11.375" | 3450 | None | €774.77 | |
 |
5KC49MN6379 | 56CZ | 5.6 | EXP PROOF CL I GR C&D CL II GR F&G T3B | 1/4 | Explosion Proof Motor | - | - | NO DESIGN CODE | €1,099.49 |
