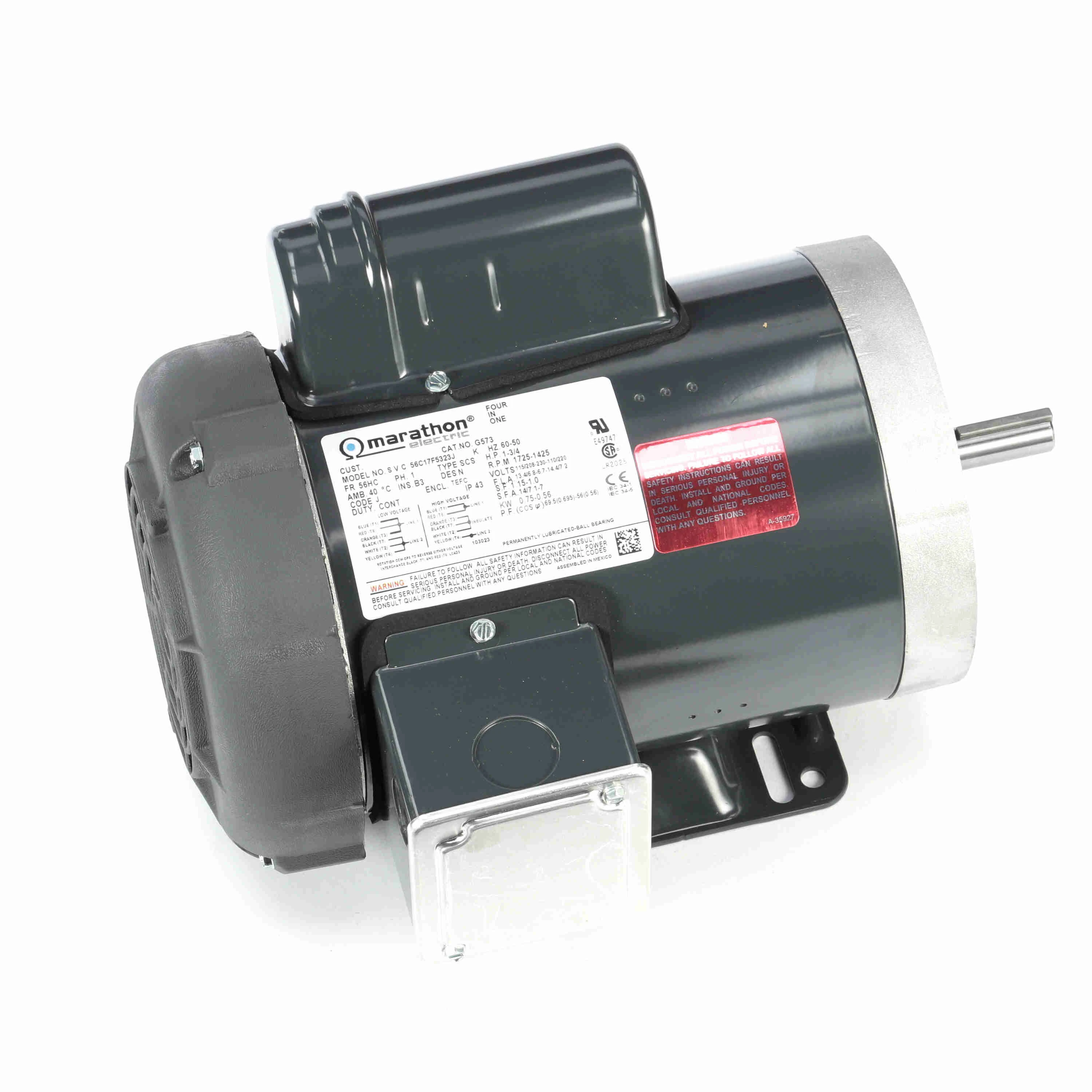

LEESON 056C17F5323 G573 / 56C17F5323J General Purpose Motor, 1/0.75 HP, 1 Phase, 60/50 Hz, 115/208-230 and 110/220V, 1800 RPM
Get it by Tuesday, Jun 17
€668.59 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Capacitor Required | Yes |
| Duty Cycle | Continuous |
| Efficiency | 72% |
| Efficiency Group | Standard |
| Frame | 56HC |
| Frame Material | Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 13.4/6.7-6.8A |
| Full Load Amps @ 50hz | 13.4/6.8-6.7A |
| Hp | 1 hp |
| Includes | Brake, Capacitor |
| Insulation Class | Class B |
| Inverter Rated | No |
| Length Less Shaft | 10 3/4" |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | All Angle |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Type | Capacitor Start |
| Mounting Type | Face/Base |
| Nameplate Rpm | 1725 RPM |
| No. Of Speeds | 1 |
| Number Of Speeds | 1 |
| Overall Length | 12 13/16" |
| Phase | 1 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 1/16" |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V AC |
| Warranty | 1 yr. |
| Hp @ 50hz | 1 hp |
| Hz | 50/60 Hz |
| Ins. Class | Class B |
| Manufacturers Warranty Length | 1 yr. |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Frame Material | Steel |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Thermal Protection | None |
| Nominal Efficiency | 72% |
| Standards | CE, CSA, UL RECOGNIZED |
| Weight | 31 lbs. |
| Ship weight (kg) | 13.95 |
| Ship height (cm) | 23.16 |
| Ship length (cm) | 40.94 |
| Ship width (cm) | 26.04 |
| HS code | 8501406040 |
| Country of Origin | MX |
| Product | Model | Frame | Full Load Amps | HP | Hz | Insulation Class | Length Less Shaft | Motor Design | Nameplate RPM | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056C11F5303 | 56C | 7.8/3.6-3.9 | 1/3 | 60 | B | 10.25" | Capacitor-Start | 1140 | €655.00 | |
 |
056C17F5320 | 56C | 6.6/3.1-3.3 | 1/3 | 50/60 | B | 9.75" | Capacitor-Start | 1725 | €456.22 | |
 |
056C17F5321 | 56C | 8.8/4.2-4.4 | 1/2 | 50/60 | F | 9.75" | Capacitor-Start | 1725 | €522.28 | |
 |
056C17F5322 | 56C | 11.0/5.4-5.5 | 3/4 | 50/60 | B | 10.25" | Capacitor-Start | 1725 | €630.30 | |
 |
056B11F5303 | 56C | 9.6/4.7-4.8 | 1/2 | 50/60 | B | 11.25" | Capacitor-Start/Run | 1140 | €796.99 | |
 |
056B17F5305 | 56HC | 15.2/8.2-7.6 | 1.5 | 50/60 | B | 11.75" | Capacitor-Start/Run | 1725 | €767.99 | |
 |
056B17F5306 | 56HC | 20.0/10.8-10.0 | 2 | 50/60 | B | 12.75" | Capacitor-Start/Run | 1725 | €963.68 |
