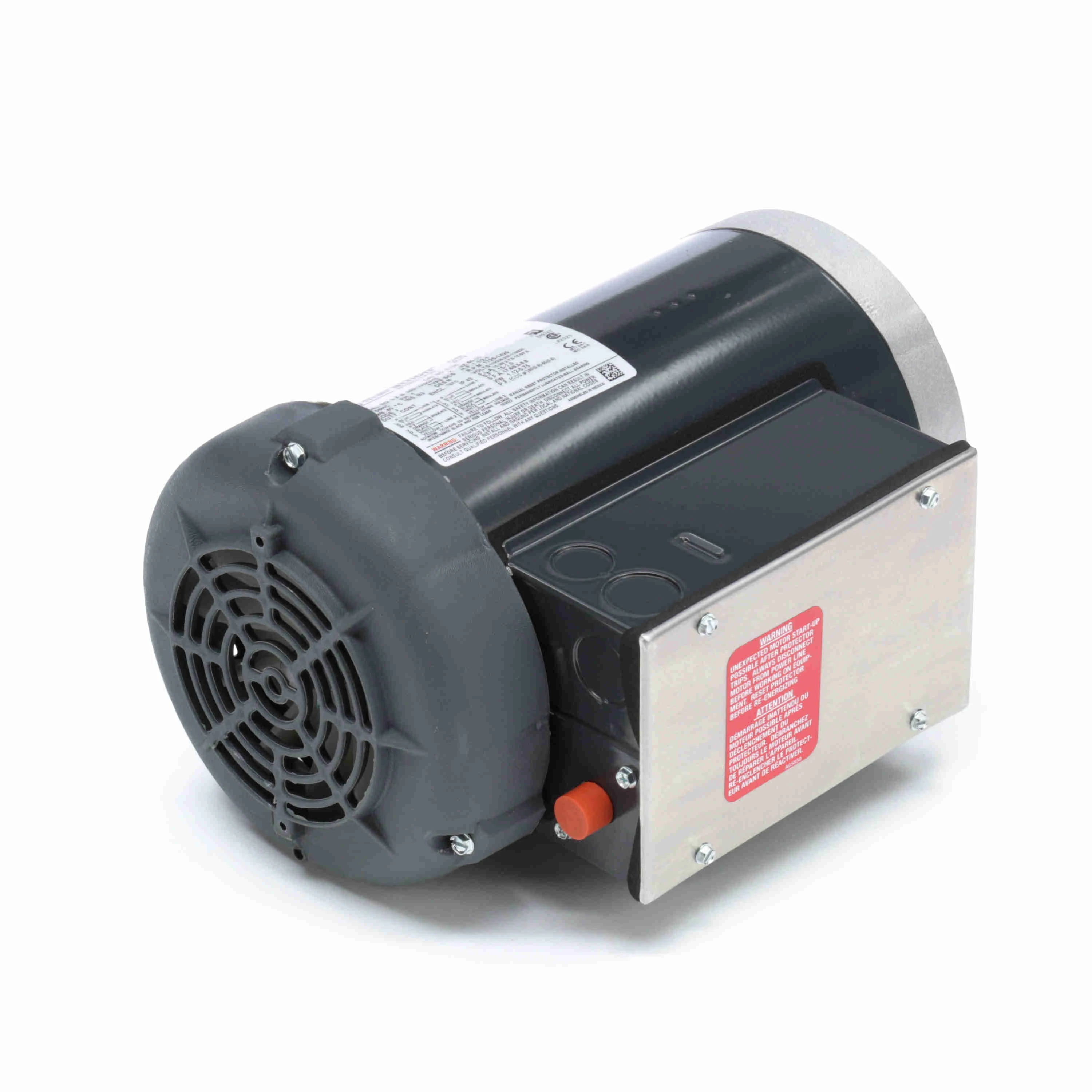

LEESON 056B17F5584 F135 / 56B17F5584E General Purpose Farm Duty Motor, 1.50/1 HP, 1 Phase, 60/50 Hz, 115/208-230V, 1800 RPM
Get it by Tuesday, Jun 17
€656.82 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Poultry Fan Motor |
| Application | Farm Duty |
| Assembly | F1 Only |
| Bearing Type | Ball |
| Conduit Box Position | F1 Only |
| Design | N |
| Duty Cycle | Continuous |
| Efficiency | 80% |
| Frame | 56HC |
| Frame Material | Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 15.2/7.6-8.2A |
| Hp | 1 1/2 hp |
| Length Less Shaft | 11 3/4" |
| Max. Ambient Temp. | 104°F , 40°C |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | C Face Rigid |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Manual |
| Nema Design | N |
| Nominal Efficiency | 80% |
| Number Of Speeds | 1 |
| Orientation | Horizontal |
| Output Power | 1.12 kW |
| Overall Length | 13.812" |
| Phase | 1 |
| Power | 1.12 kW |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2.062" |
| Thermal Protection | Manual |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V AC |
| Warranty | 2 yrs. |
| Hz | 50/60 Hz |
| Ins. Class | Class B |
| Manufacturers Warranty Length | 2 yrs. |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start/Run |
| Motor Frame Material | Steel |
| Motor Service Factor | 1.15 |
| Nameplate Rpm | 1725 RPM |
| No. Of Speeds | 1 |
| Standards | CE, CSA, UL RECOGNIZED |
| Weight | 41 lbs. |
| Ship weight (kg) | 18.45 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 41.61 |
| Ship width (cm) | 26.67 |
| HS code | 8501406040 |
| Country of Origin | MX |
| Product | Model | Frame | Full Load Amps | HP | kW | NEMA Design | Price | |
|---|---|---|---|---|---|---|---|---|
 |
056C17F5913 | 56C | 11/5.4-5.5 | 3/4 | 0.56 | L | €458.60 | |
 |
056C17F5912 | 56C | 8.8/4.2-4.4 | 1/2 | 0.37 | N | €441.78 | |
 |
056C17F5358 | 56C | 6.6/3.1-3.3 | 1/3 | 0.25 | N | €572.90 | |
 |
056C17F5914 | 56C | 13.4/6.8-6.7 | 1 | 0.75 | N | €553.82 |
