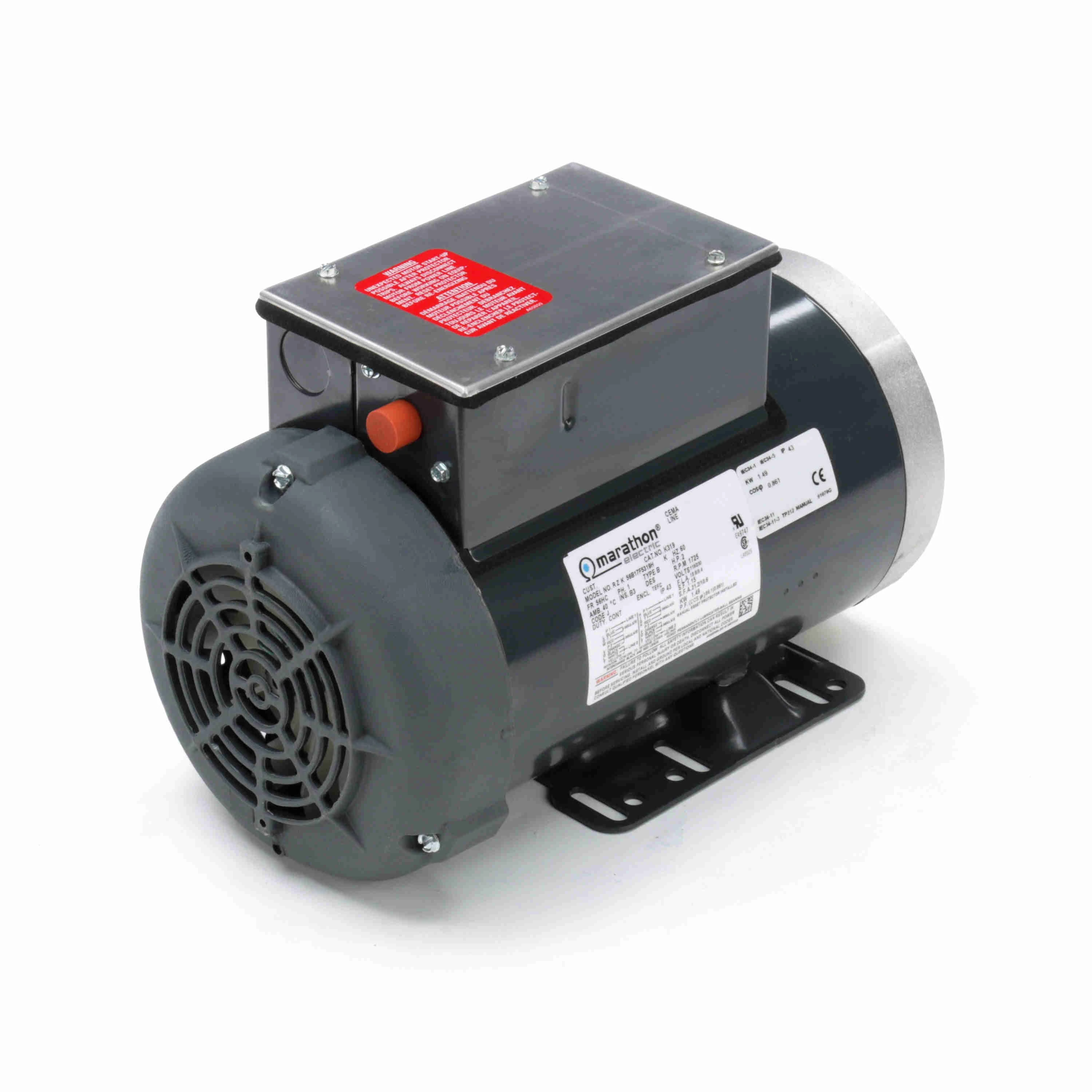

| Item | Pressure Washer Motor |
| Ambient Temp. | 40°C |
| Bearing Protection | Double Seal Full Contact |
| Bearing Type | Ball |
| Body Dia. | 7 2/5" |
| Bolt Circle Dia. | 5 7/8" |
| Conduit Box Location | Exterior |
| Conduit Box Position | F3 |
| Duty Cycle | Continuous |
| Finish | Powder Coated |
| Frame | 56HC |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 18.8/9.4A |
| Hp | 2 hp |
| Includes | Key |
| Insulation Class | Class F |
| Inverter Rated | No |
| Lead Length | 9 1/2" |
| Max. Ambient Temp. | 104°F |
| Motor Application | Pressure Washer |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Kenod |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1725 RPM |
| No. Of Speeds | 1 |
| No. Of Wires | 9 |
| Nominal Efficiency | 81.5% |
| Overall Height | 9" |
| Overall Length | 14 13/16" |
| Part Winding Start Capable | No |
| Phase | 1 |
| Power | 1.5 kW |
| Power Factor | 86.1 |
| Regreasable Bearings | Permanently Lubricated Bearings |
| Service Factor | 1.2 |
| Service Factor Amps | 21.2/10.6A |
| Shaft Dia. | 5/8" |
| Shaft Length | 2" |
| Shaft Material | Carbon Steel |
| Starter Required | No |
| Thermal Protection | Manual |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115/230V AC |
| Height | 9" |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Inverter Rating | No |
| Length Less Shaft | 12 3/4" |
| Manufacturers Warranty Length | 18 Months |
| Max. Sf Amps | 21.2/10.6 |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.2 |
| Motor Thermal Protection | Manual |
| Number Of Wires | 9 |
| Standards | CSA, UL RECOGNIZED |
| Weight | 51 lbs. |
| Ship weight (kg) | 22.95 |
| Ship height (cm) | 24.77 |
| Ship length (cm) | 49.05 |
| Ship width (cm) | 28.42 |
| HS code | 8501406040 |
| Country of Origin | MX |
