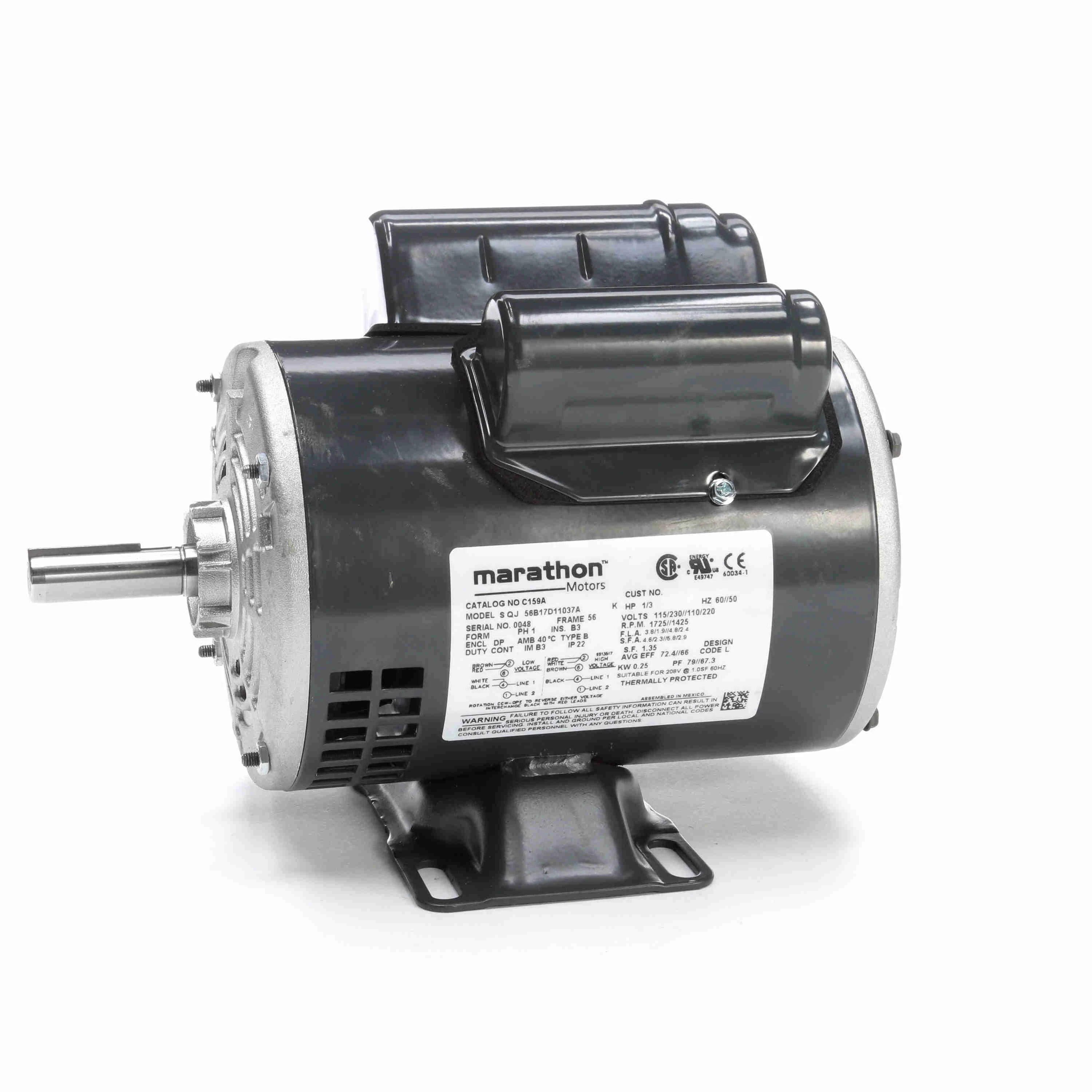

LEESON 056B17D11037 56B17D11037A / C159A General Purpose Motor, 0.33 HP, 1 Phase, 60/50 Hz, 115/230 and 110/220V, 1800 and 1500 RPM
Get it by Tuesday, Jun 17
€464.24 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 72.4% |
| Efficiency Group | Premium |
| Frame | 56 |
| Frame Material | Rolled Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 3.8/1.9A |
| Hp | 1/3 hp |
| Insulation Class | Class B |
| Inverter Rated | No |
| Length Less Shaft | 9 1/16" |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Type | Capacitor Start/Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1725 RPM |
| Number Of Speeds | 1 |
| Overall Length | 10 5/16" |
| Phase | 1 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.35 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 15/16" |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115/230V AC |
| Warranty | 1 yr. |
| Full Load Amps @ 50hz | 3.8/1.9A |
| Hp @ 50hz | 1/3 hp |
| Hz | 50/60 Hz |
| Ins. Class | Class B |
| Manufacturers Warranty Length | 1 yr. |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start/Run |
| Motor Frame Material | Steel |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.35 |
| Motor Thermal Protection | Auto |
| No. Of Speeds | 1 |
| Nominal Efficiency | 72.4% |
| Standards | CE, CSA, UL RECOGNIZED |
| Weight | 21 lbs. |
| Ship weight (kg) | 9.45 |
| Ship height (cm) | 24.43 |
| Ship length (cm) | 41.61 |
| Ship width (cm) | 26.67 |
| HS code | 8501404040 |
| Country of Origin | MX |
| Product | Model | Efficiency Group | Frame | Full Load Amps | HP | Hz | Length Less Shaft | Max. Ambient Temp. | Motor Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KH39QN9537X | Standard | 48 | 3.9 | 1/6 | 60 | 7.437" | 40 Degrees C | Split-Phase | €237.06 | |
 |
5KH39QN9538 | Standard | 48 | 5.1 | 1/4 | 60 | 7.437" | 40 Degrees C | Split-Phase | €242.00 | |
 |
5KH39QN9686X | Standard | 48 | 5.1 | 1/4 | 60 | 7.437" | 40 Degrees C | Split-Phase | €249.41 | |
 |
5KCR49WN0270T | Standard | 56HZ | 22.0/10.9-11.0 | 2 | 60 | 12 1/16" | 40 Degrees C | Capacitor-Start/Run | €915.52 | |
 |
056B34D2029 | - | 56 | 10.6/5.5-5.3 | 1 | 60 | - | - | - | €372.82 | |
 |
056B17DRR70022A1 | Premium Efficient | 56H | 12.6/6.4-6.3 | 1.5 | 60 | 12.125" | 40 Degrees C | Capacitor-Start/Run | €838.36 | |
 |
056B34D11019 | - | 56 | 7.2/3.6 | 0.75 | - | 9 9/16" | 40 deg c | capacitor start | €403.13 |
