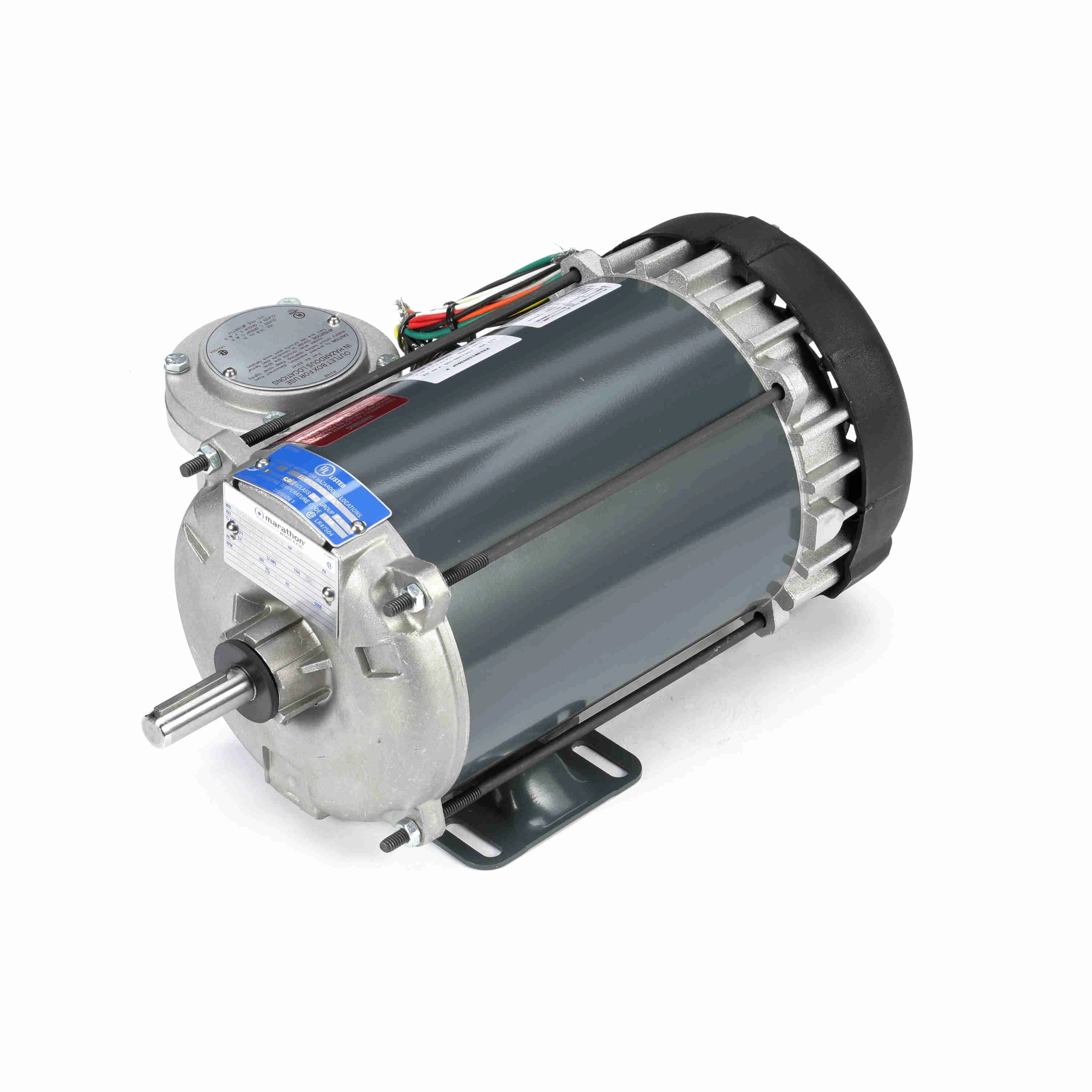

LEESON 056B11G5301 G655 / 56B11G5301F Explosion Proof Motor, 0.50 HP, 1 Phase, 60 Hz, 115/230 V, 1200 RPM
Get it by Tuesday, Jun 17
€1,218.03 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Hazardous Location Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Conduit Box Location | Exterior |
| Duty Cycle | Continuous |
| Efficiency Group | Standard |
| Enclosure Type | Hazardous Location |
| Frame | 56 |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 9.6/4.8-4.7A |
| Hazardous Location Class | 1C, D/2F, G |
| Hazardous Location Division | Division 1 |
| Hp | 1/2 hp |
| Includes | Explosion Proof Conduit Box |
| Insulation Class | Class B |
| Lead Length | 8" |
| Length Less Shaft | 12.938" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Hazardous Location |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Automatic |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1140 RPM |
| Nema Design | No Design Code |
| Nominal Efficiency | 64% |
| Number Of Speeds | 1 |
| Overall Length | 14 15/16" |
| Phase | 1 |
| Rpm Range | 1101-1200 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2" |
| Temp. Code | T3B |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V |
| Hz | 60 |
| Ins. Class | Class B |
| Motor Bearings | Ball |
| Motor Frame Material | Steel |
| Motor Service Factor | 1 |
| No. Of Speeds | 1 |
| Standards | CSA CERTIFIED, UL LISTED |
| Weight | 38 lbs. |
| Ship weight (kg) | 17.55 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 41.61 |
| Ship width (cm) | 26.67 |
| HS code | 8501404040 |
| Country of Origin | MX |
| Product | Model | Full Load Amps | HP | Length Less Shaft | Nameplate RPM | Nominal Efficiency | Overall Length | RPM Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
056C11G5306 | 6.8/3.1-3.4 | 1/4 | 11 15/16" | 1140 | 47.5% | 13 15/16" | 1101-1200 | €984.05 | |
 |
056C11G5307 | 7.8/3.6-3.9 | 1/3 | 11 15/16" | 1140 | 52.5% | 13 15/16" | 1101-1200 | €1,055.67 | |
 |
056C17E5314 | 4.8/2.3-2.4 | 1/4 | 10" | 1725 | 59.5% | 12" | 1701-1800 | €734.64 | |
 |
056C17G5315 | 6.6/3.1-3.3 | 1/3 | 11.437" | 1725 | 55% | 13.437" | 1701-1800 | €838.36 | |
 |
056C17G5317 | 11.0/5.4-5.5 | 3/4 | 12.437" | 1725 | 70% | 14.437" | 1701-1800 | €1,030.35 | |
 |
056C17G5318 | 13.4/6.8-6.7 | 1 | 12.437" | 1725 | 72% | 14.437" | 1701-1800 | €1,203.00 |
