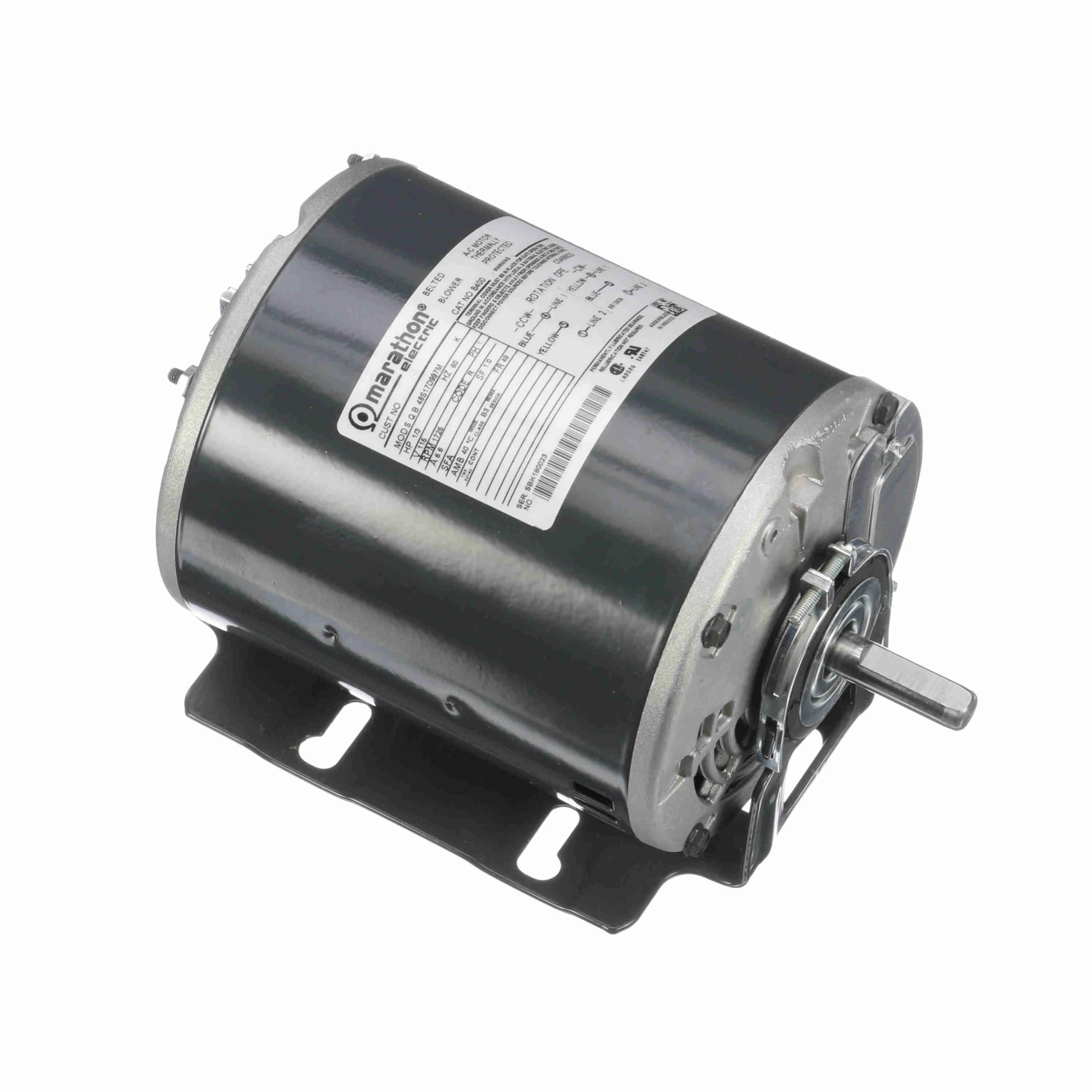

| Item | HVAC Motor |
| Ambient Temp. | 40°C |
| Assembly | F1 Only |
| Bearing Type | Ball |
| Body Dia. | 5 5/8" |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency | Not Applicable |
| Enclosure Type | Dripproof Air Over |
| Frame | 48 |
| Frequency | 60 Hz |
| Full Load Amps | 6.6A |
| Full Load Efficiency | 61.5% |
| Hp | 1/3 hp |
| Includes | Adapter With Keyway |
| Insulation Class | Class B |
| Length Less Shaft | 7 3/4" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Enclosure Design | Open Air Over |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Cradle |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Thermal Protection | Automatic |
| Motor Type | Split Phase |
| Mounting Type | Resilient Base |
| Nema Design | No Design Code |
| Number Of Speeds | 1 |
| Overall Length | 9.312" |
| Phase | 1 |
| Power | 0.25 kW |
| Resilient Ring Dia. | 2 1/4" |
| Ring To Ring Center | 7.312" |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1.59" |
| Shaft Orientation | Horizontal |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
| Ship weight (kg) | 6.3 |
| Ship height (cm) | 16.81 |
| Ship length (cm) | 28.09 |
| Ship width (cm) | 17.15 |
| HS code | 8501404040 |
| Country of Origin | MX |
