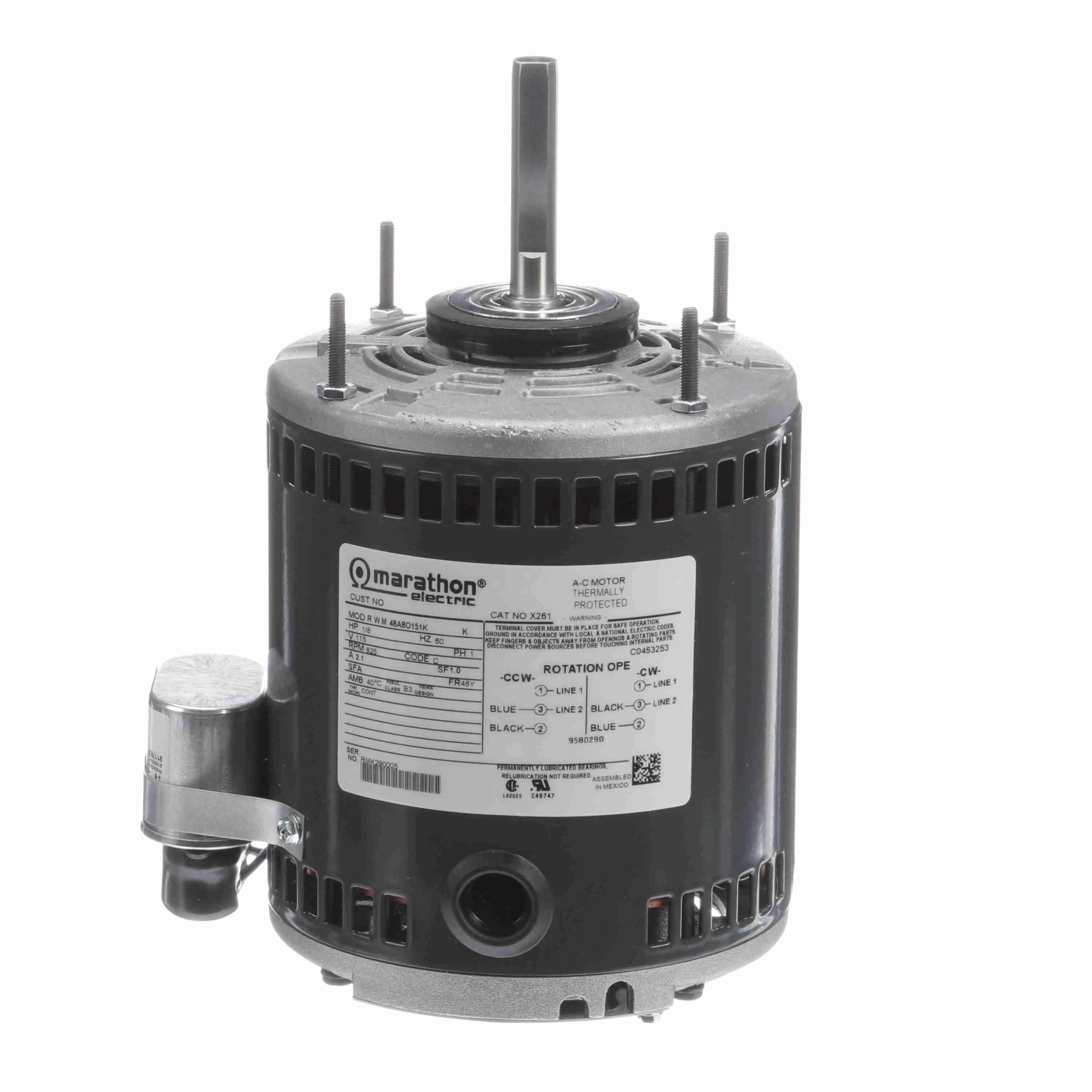

LEESON 048A8O151 X261 / 48A8O151K Motor, 0.13 HP, 1 Phase, 60 Hz, 115V, 900 RPM
Get it by Friday, Jun 13
€321.64 /unit
Add To Cart
Request a Quote
Payment
Get it by Friday, Jun 13
Payment
| Item | OEM Replacement Motor |
| Application | Fans And Blowers |
| Bearing Type | Ball |
| Body Dia. | 5.7" |
| Capacitor Required | Included |
| Conduit Box Location | Exterior |
| Conduit Box Position | F2 |
| Duty Cycle | Continuous |
| Frame | 48Y |
| Frequency | 60 Hz |
| Full Load Amps | 2.1A |
| Hp | 1/8 hp |
| Length Less Shaft | 7 1/2" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Direct Drive Fan/Blower , OEM Replacement |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Air Over |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Single Special Extension |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Thermal Protection | Automatic |
| Mounting Type | Extended Studs |
| No. Of Speeds | 1 |
| Number Of Shafts | 1 |
| Number Of Speeds | 1 |
| Overall Length | 10 1/16" |
| Phase | 1 |
| Rpm Range | 0-1000 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 2 9/16" |
| Stud Size | #10-32 |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115V AC |
| Ins. Class | Class B |
| Motor Bearings | Ball |
| Motor Mounting Type | Stud |
| Motor Service Factor | 1 |
| Nameplate Rpm | 825 RPM |
| Standards | CSA, UL |
| Weight | 13 lbs. |
| Ship weight (kg) | 5.85 |
| Ship height (cm) | 20.47 |
| Ship length (cm) | 31.6 |
| Ship width (cm) | 23.19 |
| HS code | 8501404040 |
| Country of Origin | MX |
| Product | Model | Frame | Full Load Amps | HP | Length Less Shaft | Motor Enclosure Design | Nameplate RPM | Overall Length | RPM Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
048A11O251 | 48Z | 2.2 | 1/6 | 7.187" | Open Air-Over | 1075 | 9.75" | 1701-1800 | €305.58 |
