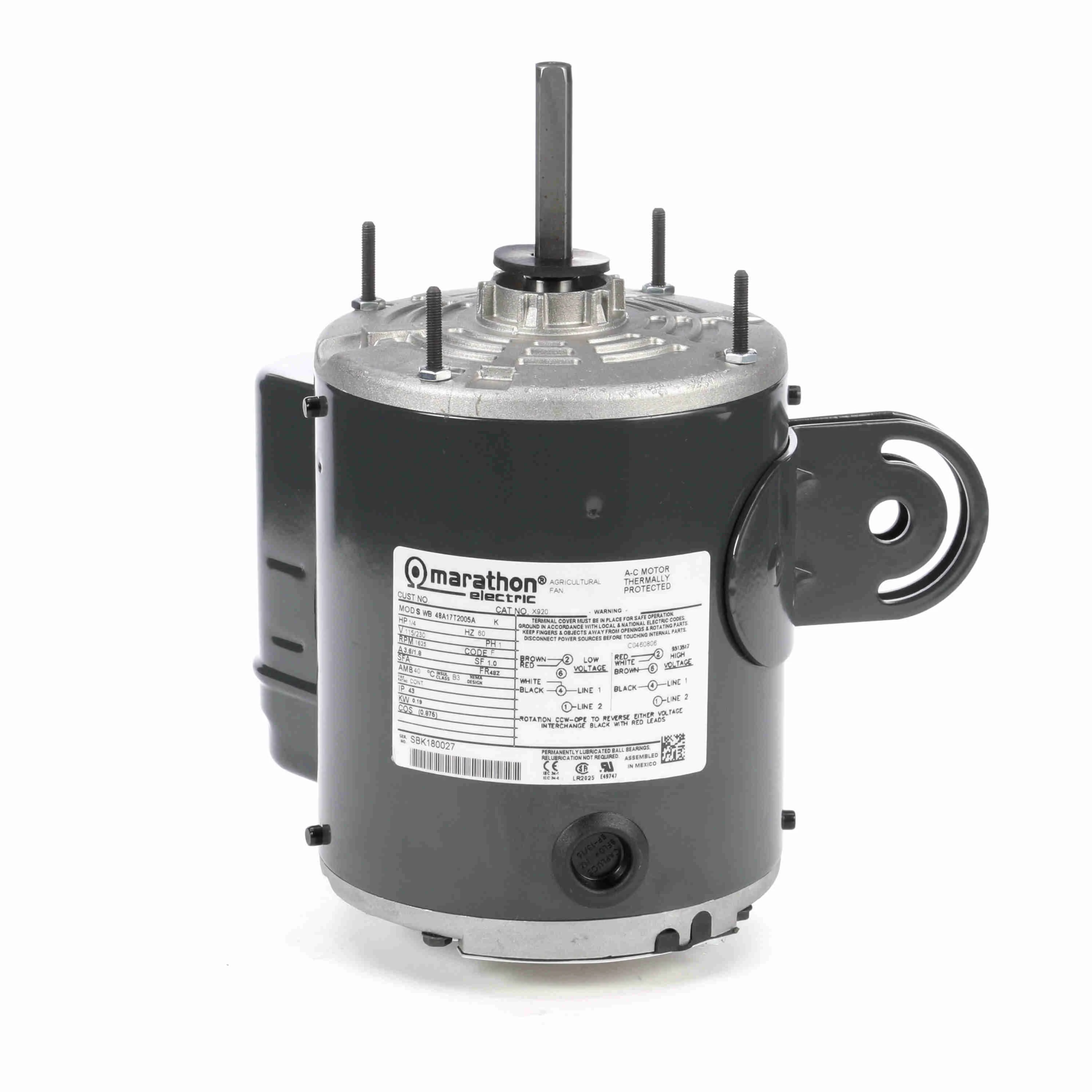

| Item | Direct Drive Blower Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Body Dia. | 5.688" |
| Bolt Circle Dia. | 5 1/8" |
| Capacitor Included | Yes |
| Capacitor Required | Included |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 Only |
| Diameter | 5 3/4" |
| Duty Cycle | Continuous |
| Enclosure Type | Totally Enclosed Non Ventilated |
| Extended Thru-bolts | Yes |
| Features | Single Speed Model |
| Frame | 48Z |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 3.6/1.8A |
| Hp | 1/4 hp |
| Includes | Capacitor |
| Insulation Class | Class B |
| Length | 10 9/16" |
| Length Less Shaft | 8.062" |
| Motor Application | HVAC/R |
| Motor Mounting Position | Horizontal Shaft Up/Vertical Shaft Up |
| Motor Mounting Type | Yoke |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Pedestal Fan |
| Motor Type | Permanent Split Capacitor |
| Mounting Stud Length | 7/8" |
| Mounting Type | Stud |
| No. Of Speeds | 1 |
| Nominal Efficiency | 0.68% |
| Number Of Studs | 4 |
| Overall Length | 10.562" |
| Phase | 1 |
| Power | 190 W |
| Removable Base | No |
| Rpm | 1625 RPM |
| Rpm Range | 1001-1100 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 2 1/2" |
| Shaft Type | Double Flat |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115/230V AC |
| Warranty | 1 yr. |
| 10 Ft. Cord And Pull Chain Switch | No |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Totally Enclosed Nonventilated |
| Motor Frame Material | Steel |
| Motor Service Factor | 1 |
| Motor Shaft Design | Double-Flat |
| Motor Thermal Protection | Auto |
| Nameplate Rpm | 1625 RPM |
| Output Watts | 190 W |
| Standards | CE LISTED, CSA CERTIFIED, UL RECOGNIZED |
| Stud Quantity | 4 |
| Weight | 22 lbs. |
| Ship weight (kg) | 9.9 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 40.18 |
| Ship width (cm) | 31.9 |
| HS code | 8501404040 |
| Country of Origin | MX |
