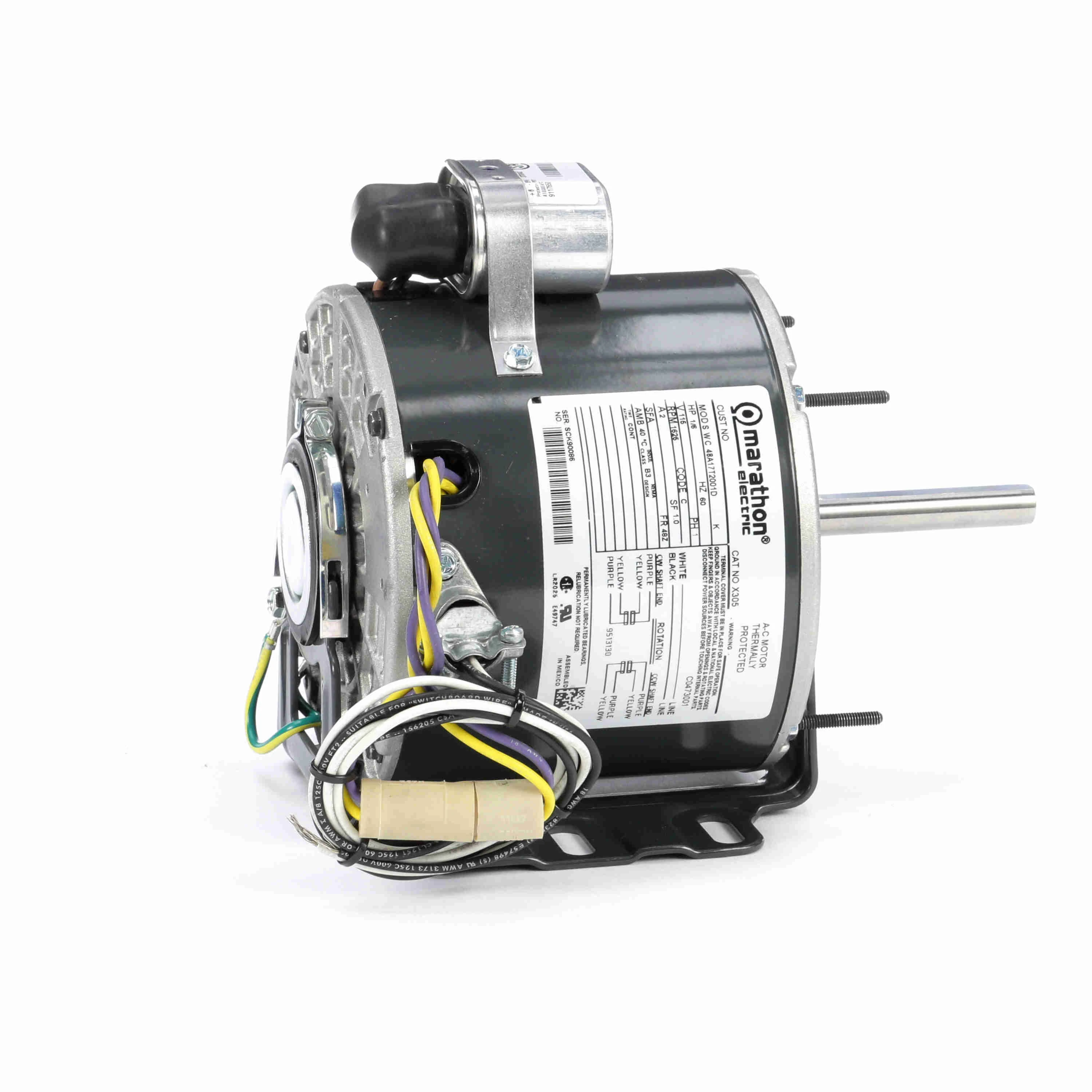

LEESON 048A17T2001 X305 / 48A17T2001D Fan and Blower Motor, 0.17 HP, 1 Phase, 60 Hz, 115V, 1800 RPM
Get it by Wednesday, Jun 18
€269.78 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | HVAC Motor |
| Ambient Temp. | 40°C |
| Assembly | F1 Only |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency | Not Applicable |
| Enclosure Type | Totally Enclosed Air Over |
| Frame | 48Z |
| Frequency | 60 Hz |
| Full Load Amps | 2A |
| Hp | 1/6 hp |
| Insulation Class | Class B |
| Max. Ambient Temp. | 40°C |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Extended Studs, Resilient Base |
| Motor Service Factor | 1 |
| Motor Shaft Rotation | Selective CCW |
| Motor Thermal Protection | Automatic |
| Motor Type | Permanent Split Capacitor |
| Mounting Type | Resilient Base Extended Studs |
| Nameplate Rpm | 1625 RPM |
| Nema Design | No Design Code |
| Number Of Speeds | 1 |
| Phase | 1 |
| Power | 0.13 kW |
| Rpm | 1625 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 2.81" |
| Shaft Orientation | Horizontal |
| Thermal Protection | Automatic |
| Voltage | 115V AC |
| Ship weight (kg) | 5.85 |
| Ship height (cm) | 20.47 |
| Ship length (cm) | 31.6 |
| Ship width (cm) | 23.19 |
| HS code | 8501404040 |
| Country of Origin | MX |
| Product | Model | Duty | Full Load Amps | HP | kW | RPM | Price | |
|---|---|---|---|---|---|---|---|---|
 |
048A11T198 | CONTINUOUS AOM | 4.1 | 1/4 | 0.187 | 1075 | €295.09 | |
 |
048A11T199 | CONTINUOUS AOM | 3 | 1/6 | 0.125 | 1075 | €281.51 | |
 |
048A11T201 | CONTINUOUS AOM | 6.5 | 1/3 | 0.246 | 1075 | €324.72 | |
 |
048A17T72 | CONTINUOUS AOM | 2.15 | 1/6 | 0.125 | 1625 | €242.00 |
