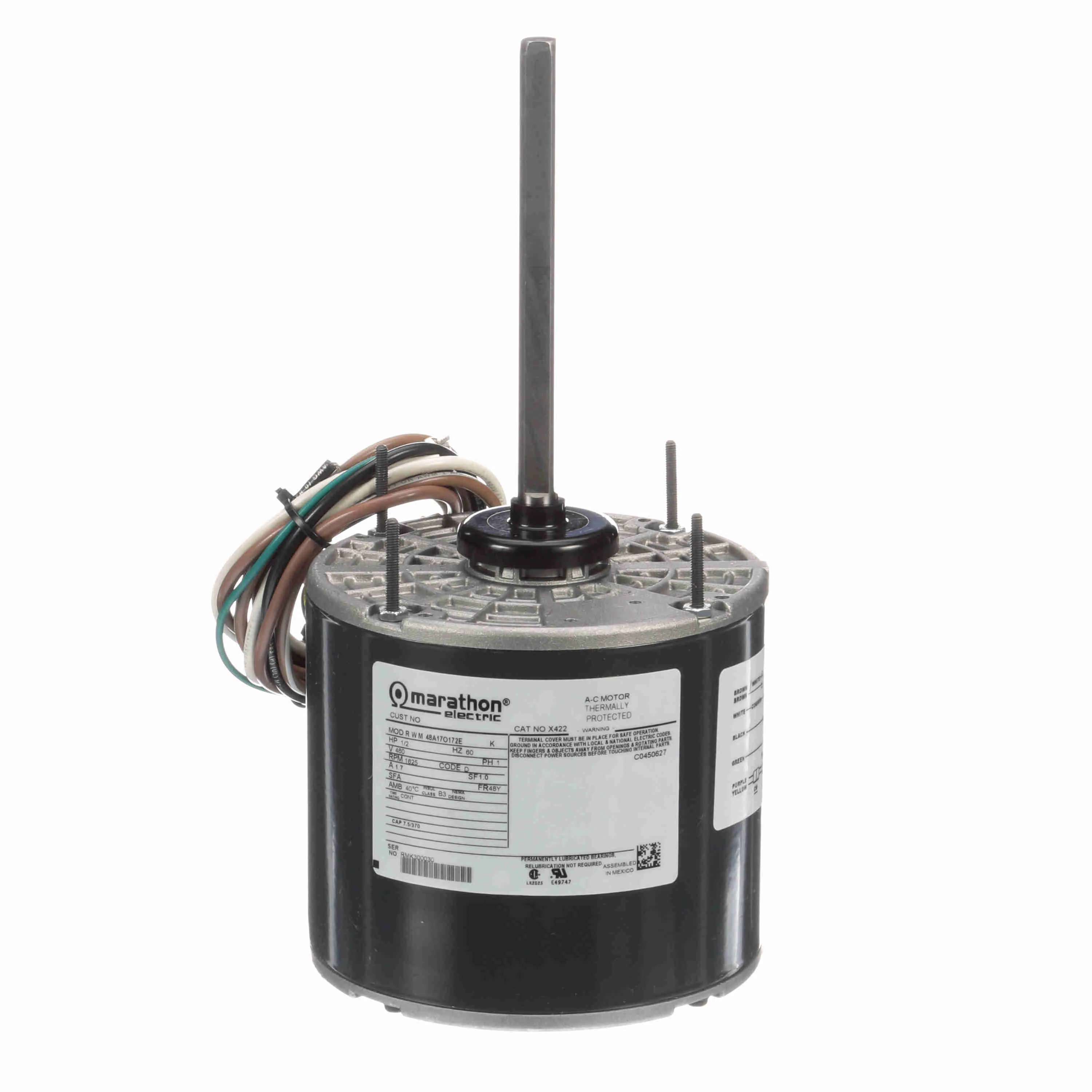

LEESON 048A17O172 X422 / 48A17O172E Condenser Fan Motor, 0.50 HP, 1 Phase, 60 Hz, 460V, 1800 RPM
Get it by Wednesday, Jun 18
€411.15 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | HVAC Motor |
| Ambient Temp. | 40°C |
| Assembly | F1 Only |
| Duty Cycle | Continuous |
| Efficiency | Not Applicable |
| Enclosure Type | Open Air Over |
| Frame | 48Y |
| Full Load Amps | 1.7A |
| Hp | 1/2 hp |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Mounting Type | Extended Studs, Footless |
| Nema Design | No Design Code |
| Phase | 1 |
| Power | 0.37 kW |
| Rpm | 1625 RPM |
| Shaft Orientation | Horizontal |
| Thermal Protection | Automatic |
| Body Dia. | 5 11/16" |
| Bolt Circle Dia. | 1 1/4" |
| Capacitor Required | 2MDV6 |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Extended Thru-bolts | Yes |
| Features | Shaft Slinger, Shaft with Flat, Thru Bolt, Weather Resistant Reversing Plug |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Lead Length | 30" |
| Length Less Shaft | 5 15/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Air Over |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal or Vertical Shaft Up |
| Motor Mounting Type | Stud |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Auto |
| Mounting Stud Pattern | 3 5/8" x 3 5/8" |
| Nameplate Rpm | 1625 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 64% |
| Output Watts | 370 W |
| Overall Length | 11 15/16" |
| Removable Base | No |
| Shaft Dia. | 1/2" |
| Shaft Length | 6" |
| Standards | CSA CERTIFIED, UL RECOGNIZED |
| Stud Quantity | 4 |
| Stud Size | #8-32 |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 460V AC |
| Weight | 15 lbs. |
| Ship weight (kg) | 6.75 |
| Ship height (cm) | 17.63 |
| Ship length (cm) | 33.66 |
| Ship width (cm) | 17.78 |
| HS code | 8501404040 |
| Country of Origin | MX |
| Product | Model | Duty | Enclosure | Frame | Full Load Amps | HP | kW | Orientation | Rotation | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
048A11O1524 | CONTINUOUS AOM | OPAO | 48Z | 1.4-1.2 | 1/4 | 0.187 | SHAFT UP | SELECTIVE CCW | €69.29 | RFQ
|
 |
048A11O678 | CONT.AOM | OPAO | 48Y | 5.1 | 3/4 | 0.56 | Horizontal | SELECTIVE CCW | €104.95 | |
 |
048A11O2017 | CONTINUOUS AOM | OPAO | 48Z | 1.4 | 1/2 | 0.37 | Horizontal | SELECTIVE CCW | €368.56 | |
 |
5KCP49ZN9617T | Continuous | Open | 56Z | 6.7-6.8/3.4 | 1 | - | Vertical Shaft Up | Select Counter clockwise | €785.88 | |
 |
048A11O1771 | CONT.AOM | OPAO | 48Y | 1.15 | 1/2 | 0.37 | Horizontal | SELECTIVE CCW | €99.52 | |
 |
048A11O2016 | CONT.AOM | OPAO | 48Y | 2.5 | 3/4 | 0.56 | Horizontal | SELECTIVE CCW | €389.55 | |
 |
048A11O2054 | CONT.AOM | OPAO | 48Y | 1.4 | 1/3 | 0.25 | Horizontal | SELECTIVE CCW | €86.44 |
