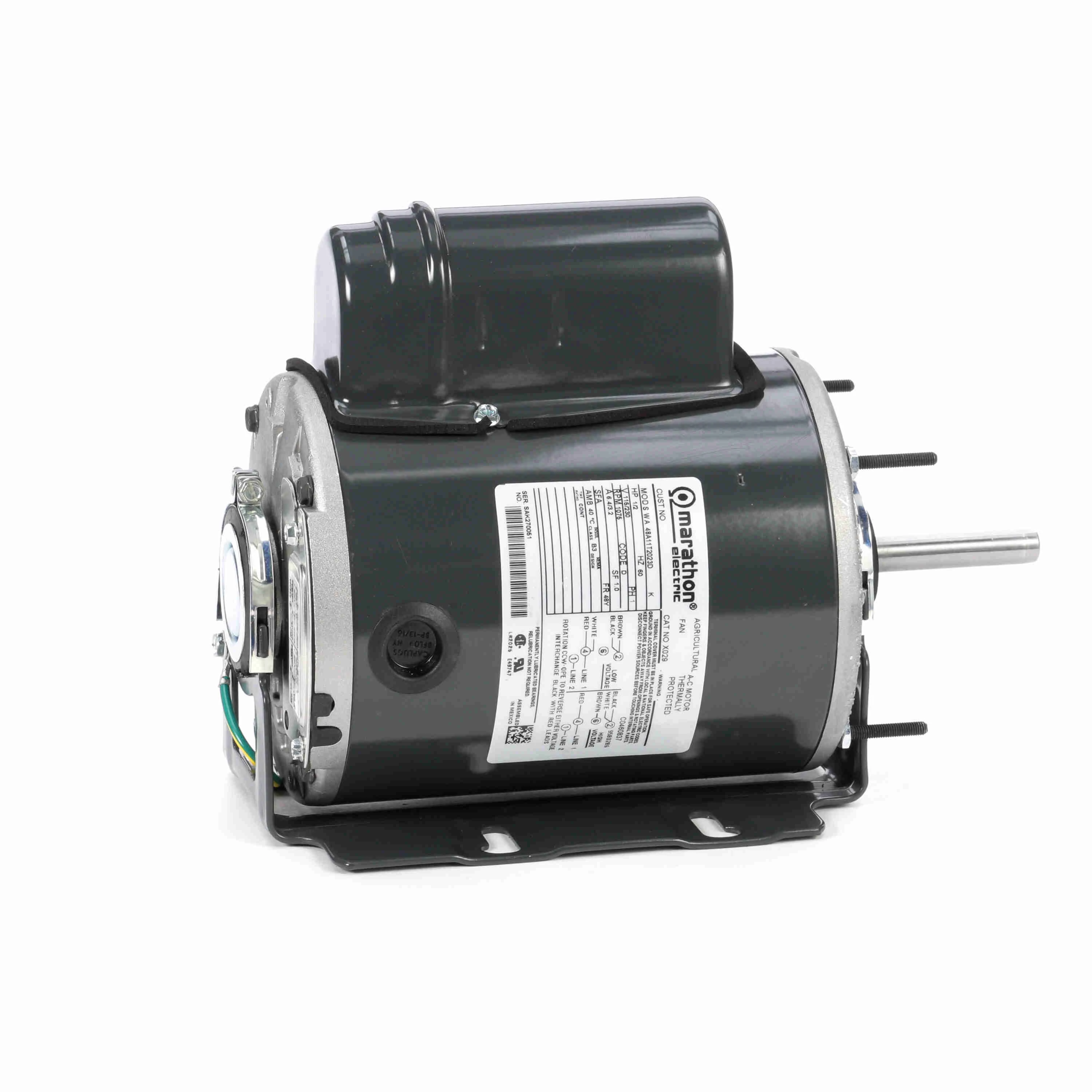

| Item | Poultry Fan Motor |
| Application | HVAC/R |
| Bearing Type | Ball |
| Body Dia. | 5 11/16" |
| Capacitor Required | Yes |
| Duty Cycle | Continuous |
| Efficiency | 68% |
| Extended Thru-bolts | Yes |
| Frame | 48Y |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 6.4/3.2A |
| Hp | 1/2 hp |
| Length Less Shaft | 8 1/4" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Belt Drive Fan/Blower |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Thermal Protection | Automatic |
| Motor Type | Permanent Split Capacitor |
| Mounting Type | Cradle Base |
| Nameplate Rpm | 1075 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 68.3% |
| Number Of Speeds | 1 |
| Overall Length | 10 13/16" |
| Phase | 1 |
| Resilient Ring Dia. | 2 1/4" |
| Ring Dia. | 2 1/4" |
| Ring To Ring Center | 7 22/25" |
| Rpm Range | 1001-1100 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 2 1/2" |
| Stud Pattern | 1 3/25" x 5 3/25" |
| Stud Size | #10-32 |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115/230V AC |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Frame Material | Steel |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1 |
| Standards | CSA CERTIFIED, UL RECOGNIZED |
| Weight | 22 lbs. |
| Ship weight (kg) | 9.9 |
| Ship height (cm) | 20.47 |
| Ship length (cm) | 31.6 |
| Ship width (cm) | 23.19 |
| HS code | 8501404040 |
| Country of Origin | MX |
