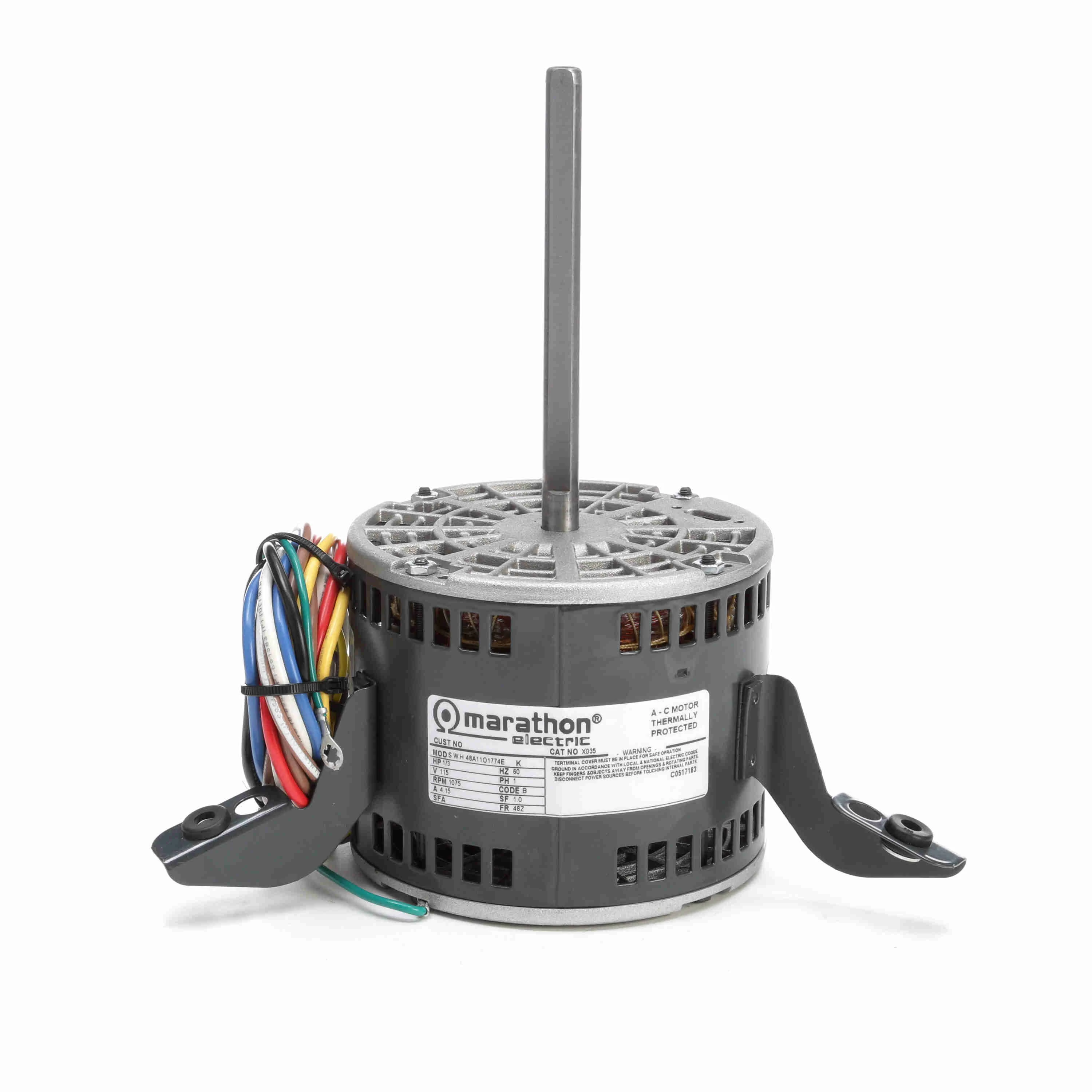

| Item | HVAC Motor |
| Ambient Temp. | 40°C |
| Assembly | F1 Only |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency | Not Applicable |
| Enclosure Type | Open Air Over |
| Frame | 48Z |
| Frequency | 60 Hz |
| Full Load Amps | 4.15A |
| Hp | 1/3 hp |
| Insulation Class | Class B |
| Max. Ambient Temp. | 40°C |
| Motor Enclosure Design | Open Air Over |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Three Lug Mount |
| Motor Service Factor | 1 |
| Motor Shaft Rotation | Selective CCW |
| Motor Thermal Protection | Automatic |
| Motor Type | Permanent Split Capacitor |
| Mounting Type | Three Lug Mounted |
| Nameplate Rpm | 1075 RPM |
| Nema Design | No Design Code |
| Number Of Speeds | 4 |
| Phase | 1 |
| Power | 0.246 kW |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 6.06" |
| Shaft Orientation | Horizontal |
| Thermal Protection | Automatic |
| Voltage | 115V AC |
| Ship weight (kg) | 6.75 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 40.18 |
| Ship width (cm) | 31.9 |
| HS code | 8501404040 |
| Country of Origin | MX |
