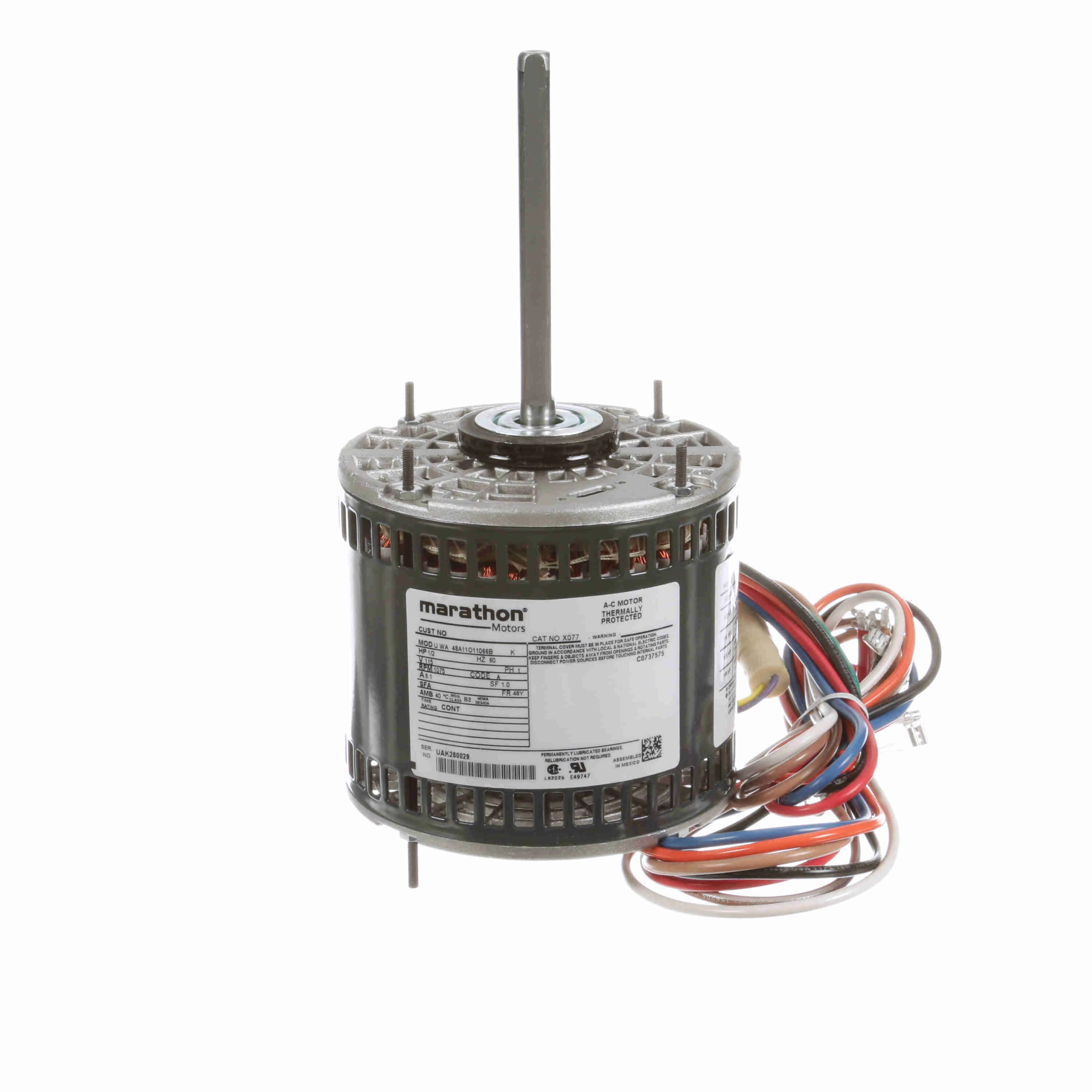

| Item | HVAC Motor |
| Ambient Temp. | 40°C |
| Assembly | F1 Only |
| Bearing Type | Ball |
| Body Dia. | 5.688" |
| Bolt Circle Dia. | 5 1/8" |
| Capacitor Required | 2MDV7 |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency | 64% |
| Enclosure Type | Open Air Over |
| Extended Thru-bolts | Yes |
| Frame | 48Y |
| Frequency | 60 Hz |
| Full Load Amps | 6.1A |
| Full Load Efficiency | 64% |
| Hp | 1/2 hp |
| Insulation Class | Class B |
| Lead Length | 36" |
| Length Less Shaft | 6" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Enclosure Design | Open Air Over |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Resilient Ring Extended Studs |
| Motor Service Factor | 1 |
| Motor Shaft Design | Double Flat |
| Motor Shaft Rotation | Selective CCW |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Thermal Protection | Automatic |
| Motor Type | Permanent Split Capacitor |
| Mounting Stud Length | 9/16", 3/4" |
| Mounting Type | Resilient Ring Extended Studs |
| Nameplate Rpm | 1075 RPM |
| Nema Design | No Design Code |
| Number Of Shafts | 1 |
| Number Of Speeds | 4 |
| Number Of Studs | 4 |
| Overall Length | 11" |
| Phase | 1 |
| Power | 0.37 kW |
| Replacement For | Genteq 3463 |
| Resilient Ring Dia. | 2 1/4" |
| Ring To Ring Center | 5.562" |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 5" |
| Shaft Orientation | Horizontal |
| Stud Size | #8-32 |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
| Warranty | 1 yr. |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Manufacturers Warranty Length | 1 yr. |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Mounting Stud Location | 4/Both Ends |
| No. Of Speeds | 4 |
| Nominal Efficiency | 0.64% |
| Standards | CSA (LR2025), UL (E6312) |
| Weight | 15 lbs. |
| Ship weight (kg) | 6.75 |
| Ship height (cm) | 17.63 |
| Ship length (cm) | 33.66 |
| Ship width (cm) | 17.78 |
| HS code | 8501404040 |
| Country of Origin | MX |
