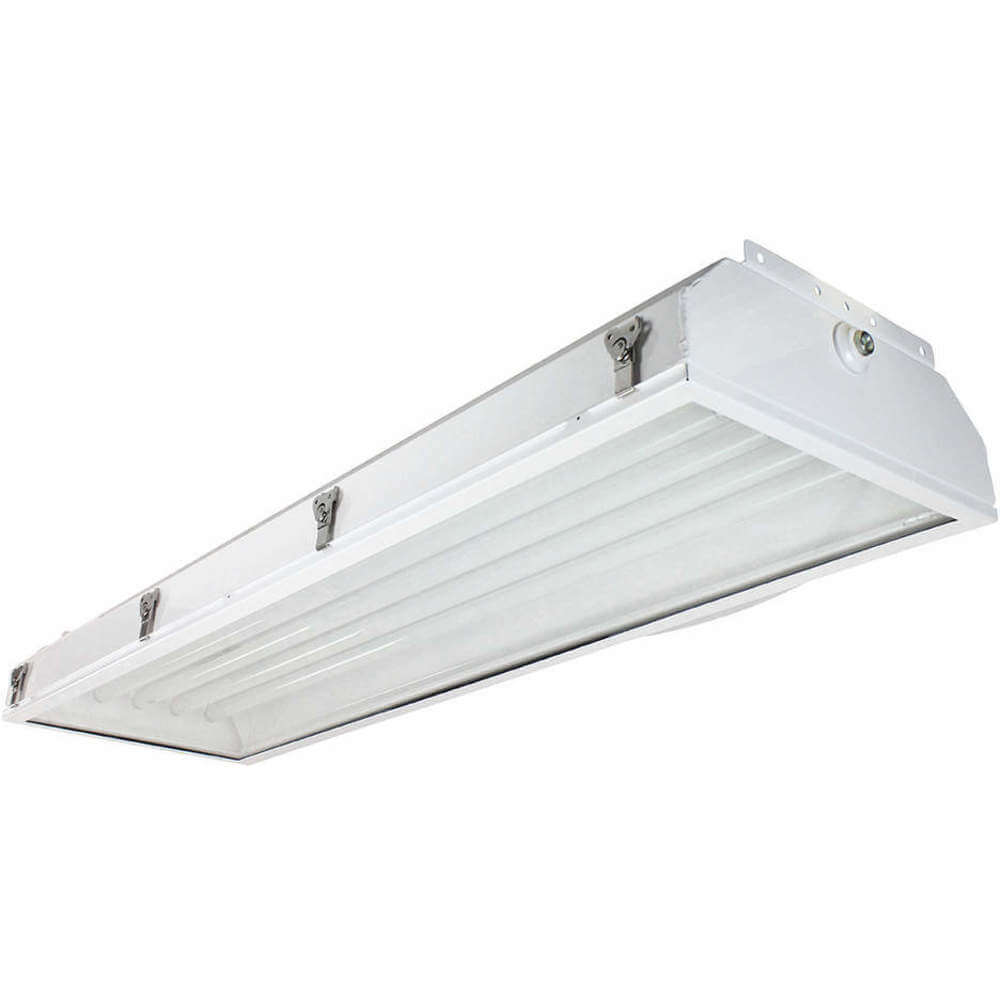

LARSON ELECTRONICS LLC HALS-48-4L-LED Hazardous Location Fixture T8-led 112w
Get it by Tuesday, Jun 17
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Hazardous Lighting Fixture |
| Ambient Temp. Range | -40°C to +65°C |
| Color | White |
| Finish | White |
| Fixture Type | Hazardous Location |
| Fixture Wattage | 112 W |
| Height | 11.812" |
| Housing Finish | Powder Coat |
| Lamp Included | Yes |
| Lamp Type | LED |
| Lamp Watts | 28 W |
| Length | 55 3/8" |
| Lens Material | Tempered Glass |
| Mounting | Pendant, Surface |
| Number Of Lamps | 4 |
| Suggested Lamp Item No. | LEDT8-28W-V1 |
| Width | 15.719" |
| Baa Compliant | Yes |
| Ca Title 24 Compliant | Yes |
| Color Temperature | 5600 K |
| Dimmable | No |
| Emergency Battery Backup | No |
| Fixture Rated Life | 50000 hrs. |
| Fixture Voltage | 120-277V AC |
| For Bulb Shape | T8 |
| For Bulb Type | LED |
| For Max. Bulb Wattage | 28 W |
| For Number Of Bulbs | 4 |
| Housing Color | White |
| Housing Material | Steel |
| Includes | 3/4" NPT Hub Size, LED Bulbs, Pendant and Wall/Ceiling/Flat Surface Mounting Brackets |
| Ingress Protection Rating | 65 |
| Lighting Certification | Unrated |
| Lighting Technology | LED |
| Lumens | 14000 lm |
| Lumens Per Watt | 125 lm/W |
| Max. Ambient Temp. | 185°F |
| Max. Fixture Wattage | 112 W |
| Min. Ambient Temp. | -22°F |
| Mounting Location | Surface |
| Number Of Bulbs | 4 |
| Overall Height | 6 1/8" |
| Overall Length | 49 3/4" |
| Overall Width | 15" |
| Safety Rating | Class I, Division 2, Groups A, B, C, D, Class II, Division 2, Groups F, G |
| Temperature Code | T4A |
| Ul/csa/etl Listed | UL 1598A Listed, UL 595 Listed, UL Listed |
| Ship weight (kg) | 26.19 |
| Ship height (cm) | 38.1 |
| Ship length (cm) | 138.43 |
| Ship width (cm) | 63.5 |
| HS code | 9405108020 |
| Product | Model | Ambient Temp. Range | Fixture Wattage | Lamp Designation | Lamp Quantity | Lamp Type | Lamp Watts | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
HALS-48-2L-LED | -40 Degrees to 65 Degrees C | 56 | T8-LED, 4FT | 2 | LED | 28 | - | RFQ
|
 |
HALS-48-2L-T5HO | -20 Degrees to 70 Degrees C | 108 | T5HO | 2 | Fluorescent | 54 | - | RFQ
|
 |
HALS-48-4L-T5HO | -20 Degrees to 70 Degrees C | 216 | T5HO | 4 | Fluorescent | 54 | €1,548.24 | |
 |
HALS-48-2L-T8 | -20 Degrees to 70 Degrees C | 64 | T8 | 2 | Fluorescent | 32 | - | RFQ
|
|
HALS-48-4L-T8 | -20 Degrees to 70 Degrees C | 128 | T8 | 4 | Fluorescent | 32 | - | RFQ
|
