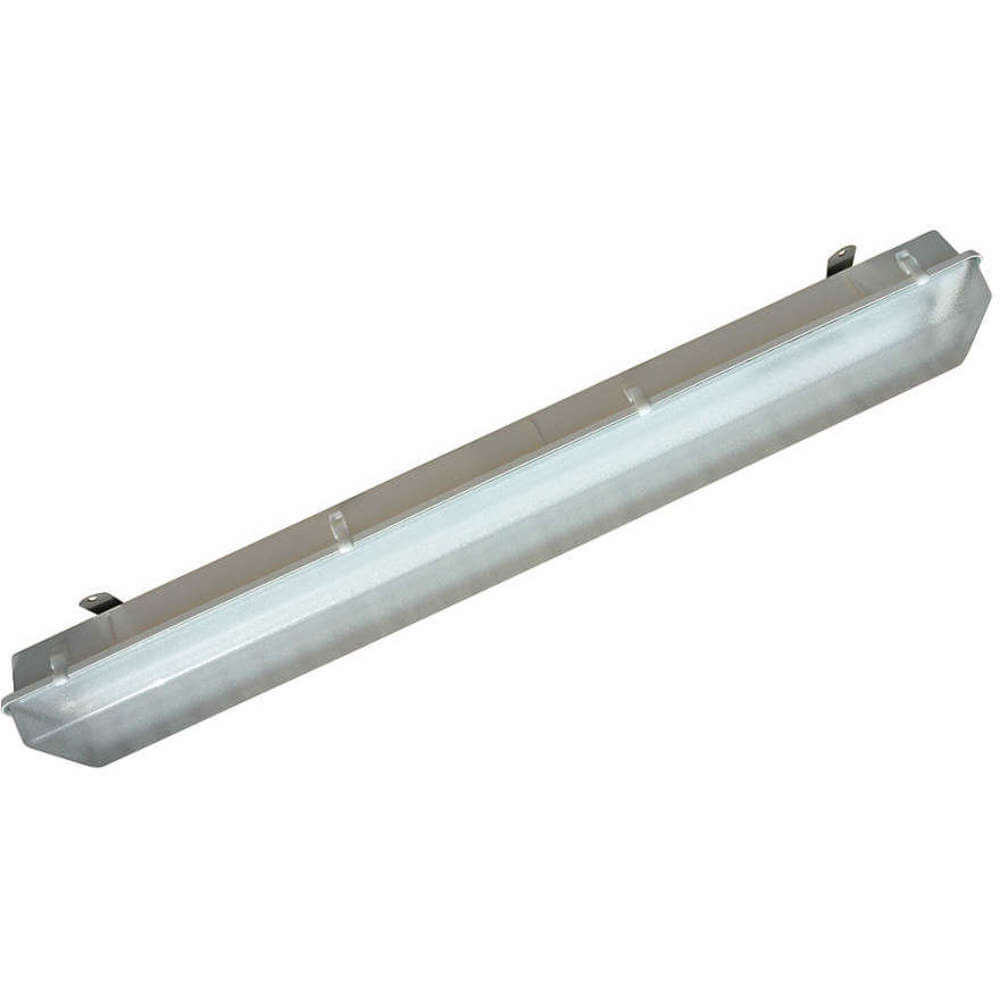

LARSON ELECTRONICS LLC HALP-EMG-48-3L-T8-SFC Hazardous Location Fixture T8 96w
Get it by Tuesday, Jun 17
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Hazardous Lighting Fixture |
| Ambient Temp. Range | -40°C to +50°C |
| Color | White |
| Finish | White |
| Fixture Type | Hazardous Location |
| Fixture Wattage | 96 W |
| Height | 5.094" |
| Lamp Included | Yes |
| Lamp Type | Fluorescent |
| Lamp Watts | 32 W |
| Length | 49.969" |
| Lens Material | Acrylic |
| Mounting | Surface, Suspended |
| Number Of Lamps | 3 |
| Width | 7.969" |
| Baa Compliant | Yes |
| Ca Title 24 Compliant | Yes |
| Color Temperature | 4100 K |
| Dimmable | No |
| Emergency Battery Backup | Yes |
| Fixture Ballast Type | Electronic |
| Fixture Rated Life | 24000 hrs. |
| Fixture Voltage | 120/208/240/277V AC |
| For Bulb Shape | T8 |
| For Bulb Type | Fluorescent |
| For Max. Bulb Wattage | 32 W |
| For Number Of Bulbs | 3 |
| Housing Color | White |
| Housing Material | Polyester |
| Includes | 3/4" NPT Hub Size, Emergency Ballast, Pendant Mount Brackets, T8 Bulbs |
| Ingress Protection Rating | 67 |
| Lighting Certification | Unrated |
| Lighting Technology | Fluorescent |
| Lumens | 8850 lm |
| Lumens Per Watt | 92 lm/W |
| Max. Ambient Temp. | 158°F |
| Max. Fixture Wattage | 96 W |
| Min. Ambient Temp. | -22°F |
| Mounting Location | Surface |
| Number Of Ballasts | 1 |
| Number Of Bulbs | 3 |
| Overall Height | 7" |
| Overall Length | 52" |
| Overall Width | 8 1/4" |
| Safety Rating | Class I, Division 2, Groups A, B, C, D, Class II, Division 2, Groups F, G |
| Standards | MEETS US COAST GUARD SPECIFICATIONS |
| Temperature Code | T4A |
| Ul/csa/etl Listed | cUL Listed for Canada, UL 1598A Listed, UL 844 Listed, UL 924 Listed, UL Listed |
| Ship weight (kg) | 13.01 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 141.61 |
| Ship width (cm) | 21.59 |
| HS code | 9405108020 |
| Product | Model | Ambient Temp. Range | Fixture Wattage | Height | Lamp Designation | Lamp Quantity | Lamp Type | Lamp Watts | Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HALP-24-2L-T8-PND | -20 Degrees to 70 Degrees C | 34 | 5 27/64" | T8, 2FT | 2 | Fluorescent | 17 | 25.875" | - | RFQ
|
 |
HALP-24-3L-T8-SFC | -20 Degrees to 70 Degrees C | 51 | 5 13/64" | T8, 2FT | 3 | Fluorescent | 17 | 25.875" | €832.10 | |
 |
HALP-24-3L-T8-PND | -20 Degrees to 70 Degrees C | 51 | 5 27/64" | T8, 2FT | 3 | Fluorescent | 17 | 25.875" | €800.07 | |
|
HALP-48-2L-LED-SFC | -40 Degrees to 65 Degrees C | 56 | 5 3/32" | T8-LED, 4FT | 2 | LED | 28 | 49 31/32" | - | RFQ
|
|
HALP-48-2L-LED-PND | -40 Degrees to 65 Degrees C | 56 | 5 27/64" | T8-LED, 4FT | 2 | LED | 28 | 49 47/64" | - | RFQ
|
|
HALP-48-3L-LED-SFC | -40 Degrees to 65 Degrees C | 84 | 5 3/32" | T8-LED, 4FT | 3 | LED | 28 | 49 31/32" | €1,359.26 | |
|
HALP-48-3L-LED-PND | -40 Degrees to 65 Degrees C | 84 | 5 27/64" | T8-LED, 4FT | 3 | LED | 28 | 49 47/64" | - | RFQ
|
