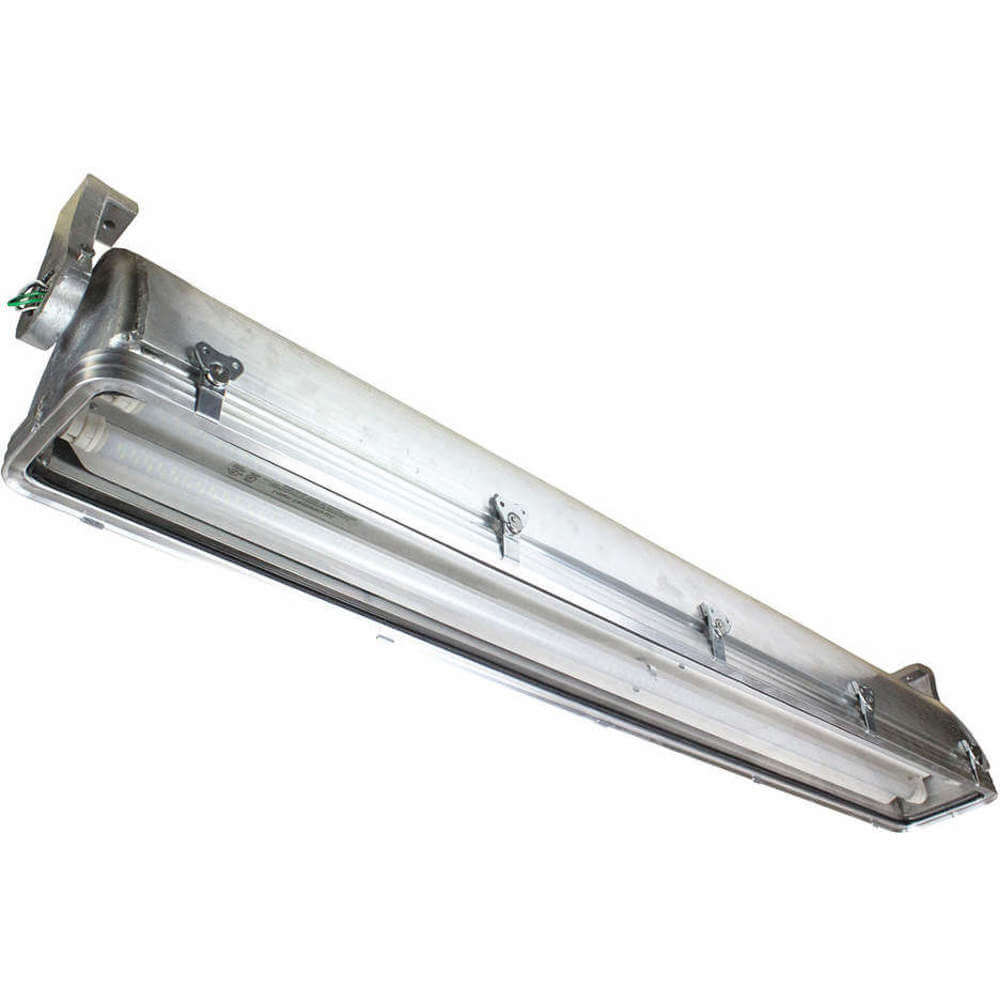

LARSON ELECTRONICS LLC HAL-48-2L-LED-SFC Hazardous Location Fixture T8-led 56w
Get it by Tuesday, Jun 17
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Hazardous Lighting Fixture |
| Ambient Temp. Range | -40°C to +65°C |
| Color | Gray |
| Finish | Gray |
| Fixture Type | Hazardous Location |
| Fixture Wattage | 56 W |
| Height | 9.109" |
| Housing Material | Copper Free Aluminum |
| Lamp Included | Yes |
| Lamp Type | LED |
| Lamp Watts | 28 W |
| Length | 53.734" |
| Lens Material | Acrylic |
| Mounting | Surface, Suspended |
| Number Of Lamps | 2 |
| Suggested Lamp Item No. | LEDT8-28W-V1 |
| Width | 7.031" |
| Baa Compliant | Yes |
| Ca Title 24 Compliant | Yes |
| Color Rendering Index | 80 |
| Color Temperature | 5600 K |
| Dimmable | No |
| Emergency Battery Backup | No |
| Fixture Rated Life | 50000 hrs. |
| Fixture Voltage | 120-277V AC |
| For Bulb Shape | T8 |
| For Bulb Type | LED |
| For Max. Bulb Wattage | 28 W |
| For Number Of Bulbs | 4 |
| Housing Finish | High Gloss |
| Includes | 3/4" NPT Hub Size, LED Bulbs, Wall/Ceiling/Flat Surface Mounting Brackets |
| Ingress Protection Rating | 67 |
| Lighting Certification | Unrated |
| Lighting Technology | LED |
| Lumens | 7000 lm |
| Lumens Per Watt | 125 lm/W |
| Max. Ambient Temp. | 149°F |
| Max. Fixture Wattage | 56 W |
| Min. Ambient Temp. | -40°F |
| Mounting Location | Surface |
| Number Of Bulbs | 2 |
| Overall Height | 9 1/8" |
| Overall Length | 53 3/4" |
| Overall Width | 7" |
| Safety Rating | Class I, Division 2, Groups A, B, C, D |
| Standards | CERTIFIED TO CANADIAN STANDARDS, LEL LISTED, MEETS US COAST GUARD SPECIFICATIONS |
| Temperature Code | T4 |
| Ul/csa/etl Listed | UL 1598A Listed, UL 844 Listed, UL Listed |
| Ship weight (kg) | 10.22 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 141.61 |
| Ship width (cm) | 21.59 |
| HS code | 9405108020 |
| Product | Model | Ambient Temp. Range | Finish | Fixture Wattage | Height | Housing Finish | Housing Material | Lamp Designation | Lamp Included | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HAL-48-2L-LED-PND | -40 Degrees to 65 Degrees C | Gray | 56 | 7 39/64" | Gray | Copper-Free Aluminum | T8-LED, 4FT | Yes | - | RFQ
|
 |
HAL-48-2L-T5HO-SFC | -20 Degrees to 70 Degrees C | Gray | 108 | 9 7/64" | Gray | Copper-Free Aluminum | T5HO | Yes | - | RFQ
|
 |
HAL-48-2L-T5HO-PND | -20 Degrees to 70 Degrees C | Gray | 108 | 7 39/64" | Gray | Copper-Free Aluminum | T5HO | Yes | - | RFQ
|
 |
HAL-48-2L-T8-SFC | -20 Degrees to 70 Degrees C | Gray | 64 | 9 7/64" | Gray | Copper-Free Aluminum | T8 | Yes | - | RFQ
|
 |
HAL-48-2L-T8-PND | -20 Degrees to 70 Degrees C | Gray | 64 | 7 39/64" | Gray | Copper-Free Aluminum | T8 | Yes | €1,248.30 | |
 |
HAL-EMG-48-2L-LED-SFC | -40 Degrees to 50 Degrees C | Gray | 56 | 9 7/64" | Gray | Copper-Free Aluminum | T8-LED, 4FT | Yes | - | RFQ
|
|
HAL-EMG-48-2L-LED-PND | -40 Degrees to 50 Degrees C | Gray | 56 | 7 39/64" | Gray | Copper-Free Aluminum | T8-LED, 4FT | Yes | - | RFQ
|
