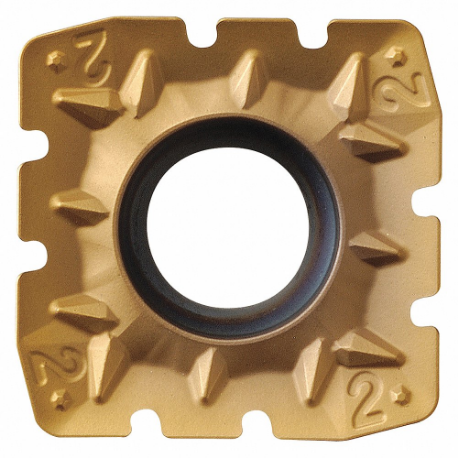

KYOCERA SPMT1806EDERNB2PR1230 Square Milling Insert, 0.7090 Inch Inscribed Circle, 0.0470 Inch Corner Radius
Get it by Tuesday, Jun 17
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Milling Insert |
| Ansi Number | SPMT1806EDERNB2PR1230 |
| Cast Iron (k) Compatibility | No |
| Chip-breaker | Yes |
| Chip-breaker Code | NB2 |
| Chip-breaker Style | On One Side |
| Clearance Angle | 11° |
| Coating | Chemical vapor deposition |
| Compatibility | Yes |
| Corner Radius | 0.047" |
| Countersink Hole Angle | 40° to 60° |
| Cutting Application | Milling |
| Cutting Direction | Right Hand |
| Cutting Edge Length | 18 mm |
| Features | Wear And Oxidation Resistance |
| Finish | Megacoat Nano |
| For Toolholder | M, MFH 25-S25-10-2T-200, MFH 25-W25-10-2T, MSRS 15080R-4T, MSRS 1510000R-12T, MSRS 1512000R-14T, MSRS 1512000R-16T, MSRS 153000R-4T, MSRS 153000R-6T, MSRS 154000R-4T, MSRS 155000R-6T, MSRS 155000R-8T, MSRS 156000R-10T, MSRS 156000R-8T, MSRS 158000R-10T, MSRS 158000R-12T |
| For Use With | RP_Mfr No. MSRS153000R-4T, MSRS15080R-4T, MSRS15080R-4T-M, MSRS15080R-6T, MSRS15080R-6T-M, MSRS1510000R-12T, MSRS1510000R-14T, MSRS15100R-4T, MSRS15100R-4T-M, MSRS15100R-6T, MSRS15100R-6T-M, MSRS1512000R-14T, MSRS1512000R-16T, MSRS15125R-6T, MSRS15125R-6T-M, MSRS15125R-8T, MSRS15125R-8T-M, MSRS15160R-10T, MSRS15160R-10T-M, MSRS15160R-8T, MSRS15160R-8T-M, MSRS15200R-10T, MSRS15200R-10T-M, MSRS15200R-12T, MSRS15200R-12T-M, MSRS15250R-12T, MSRS15250R-12T-M, MSRS15250R-14T, MSRS15250R-14T-M, MSRS153000R-6T, MSRS15315R-14T, MSRS15315R-14T-M, MSRS15315R-16T, MSRS15315R-16T-M, MSRS154000R-4T, MSRS154000R-6T, MSRS155000R-6T, MSRS155000R-8T, MSRS156000R-10T, MSRS156000R-8T, MSRS158000R-10T, MSRS158000R-12T |
| Hardened Compatibility | No |
| Hole Type | Double Countersink Hole |
| Inscribed Circle | 0.709" |
| Insert Application | Milling |
| Insert Holding Type | Screw |
| Insert Size | 1806 |
| Lead Angle | 90° |
| Material | Carbide |
| Mfr. Series | MSRS Series |
| Mounting Hole Dia. | 0.268" |
| Mounting Style | Screw |
| No. Of Edges | 4 |
| Non Ferrous (n) Compatibility | No |
| Number Of Cutting Edges | 4 |
| Primary Material Application | Hardened Steel, Stainless Steel, Steel |
| Primary Material Application Iso Code | H, M, P, S |
| Rake | Positive |
| Shape | Square |
| Stainless Compatibility | Yes |
| Style | SPMT |
| Super Alloy Compatibility | No |
| System Of Measurement | Metric |
| Thickness | 1/4" |
| Through Hole Inside Dia. | 0.268" |
| Workpiece Compatibility | Stainless Steel, Steel |
| Ansi Code | SPMT1806EDERNB2PR1230 |
| Coating Process | CVD |
| Finish - Machining | Megacoat Nano |
| Insert Style | SPMT |
| Iso Number | SPMT1806EDERNB2PR1230 |
| Manufacturer Grade | PR1230 |
| Material - Machining | Carbide |
| Measurement System | Metric |
| Series | MSRS Series |
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Product | Model | Price | |
|---|---|---|---|
 |
SOMT100420ERLDPR1535 | €15.85 | |
|
SOMT100420ERLDPR1525 | €15.85 | |
 |
SOMT100420ERFLCA6535 | €15.09 | |
 |
SOMT140520ERGMCA6535 | €18.40 | |
|
SOMT140520ERGMPR1525 | €19.32 | |
|
SOMT140520ERGMPR1510 | €19.32 | |
|
SOMT140514ERFLPR1510 | €19.32 |
