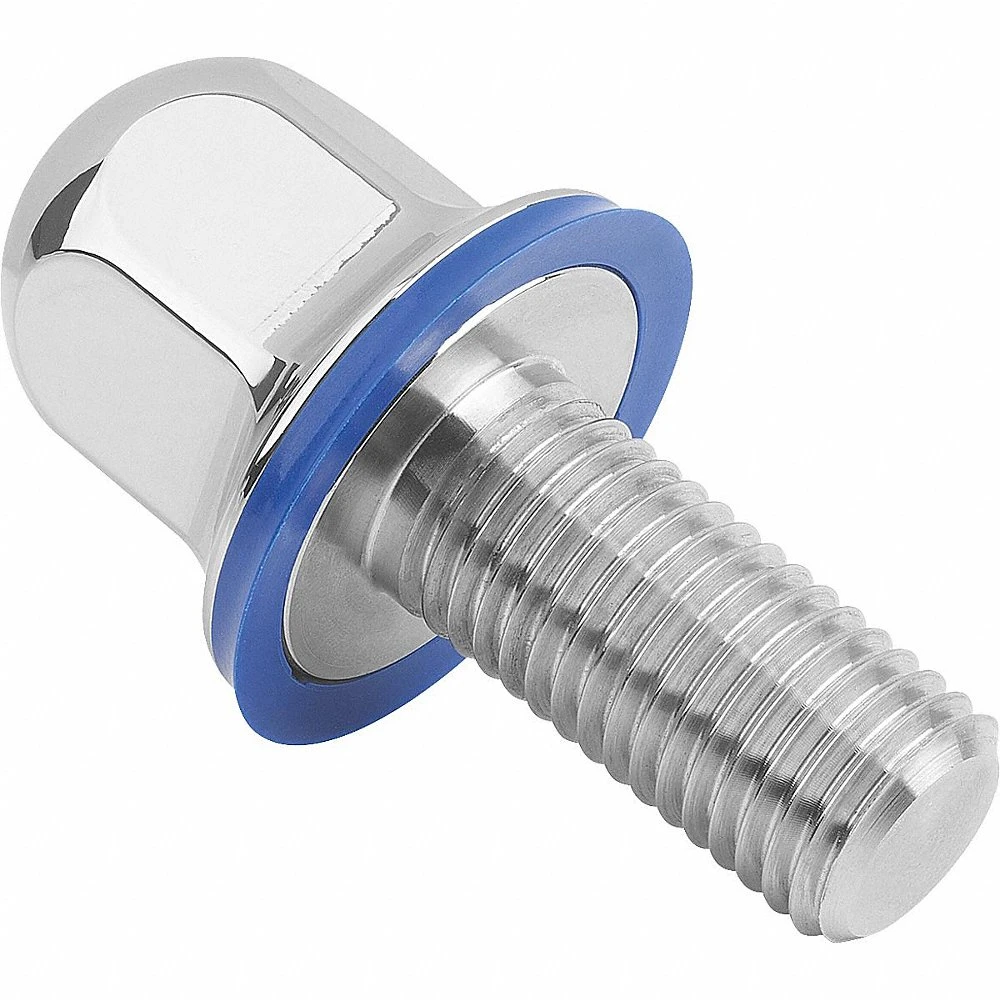

| Item | Head Bolt |
| Drive Size | 7 mm |
| Drive Type | External Hex |
| Finish | Polish |
| Flange Dia. | 10 mm |
| Flange Type | Standard |
| For Use In Systems | Food Processing Facilities |
| Head Height | 5.9 mm |
| Head Width | 10 mm |
| Includes Washers | Yes |
| Max. Temp. | 100°C |
| Min. Temp. | -20°C |
| Seal Material | Ultramarine Blue Acetal |
| System Of Measurement | Metric |
| Thread Style | Fully Threaded |
| Washer Thickness | 2 mm |
| Drive | Hex |
| Fastener Length | 8 mm |
| Features | A Pre Mounted Sealing Washer enables easy installation |
| Flange Diameter | 10 mm |
| Head Style | Hex Flange |
| Includes Washer | Yes |
| Made In North America | No |
| Material | Stainless Steel |
| Material Grade/class | Grade 316L |
| Material Quality Standards | AISI 316L |
| Maximum Temperature | 100°C |
| Minimum Temperature | -20°C |
| Overall Length | 19.1 mm |
| Rohs Compliant | Yes |
| Thread Size | M4 |
| Type | Sanitary Hex Head Screws |
| Washer Standards | RAL |
| Washer Type | FDA-Approved Pre-Mounted Sealing |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
