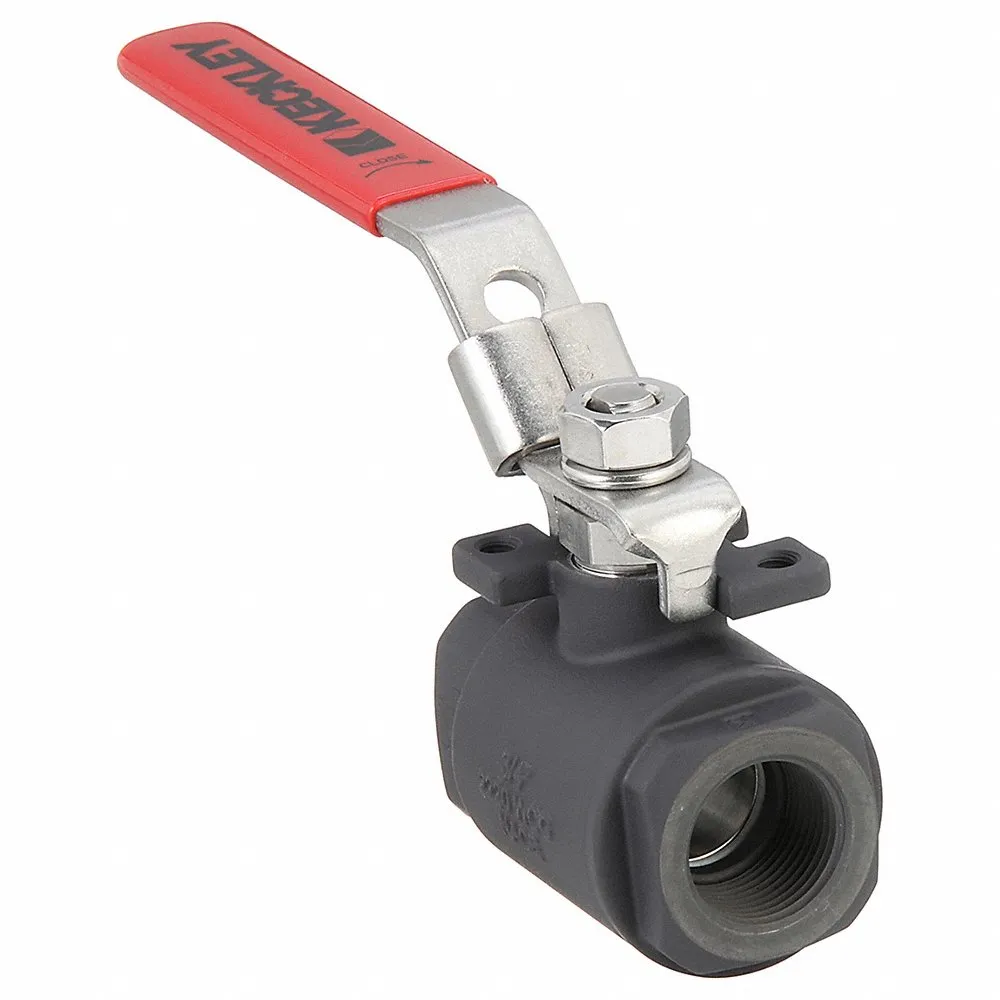

| Item | Ball Valve |
| Agency Compliance | Not Rated |
| Ansi Flange Class | Not Applicable |
| Average Surface Roughness | Not Applicable |
| Ball Material | Stainless Steel |
| Ball Material Grade | Grade 316 |
| Ball Opening Size | 0.81" |
| Ball Port Style | Full Port |
| Ball Valve Basic Body Material | Carbon Steel |
| Ball Valve Product Group | Manual |
| Body Material | Carbon Steel |
| Body Seal Material | Graphite |
| Body Style | Inline |
| Connection Gender - Side 1 | Female |
| Connection Gender Side 2 | Female |
| Connection Size - Side 1 | 3/4" |
| Connection Size - Side 2 | 3/4" |
| Connection Type | FNPT x FNPT |
| For Media | Combustible Gases |
| Handle - Locking | Locking |
| Handle Color | Red |
| Handle Height | 2 4/5" |
| Handle Length | 5.7" |
| Handle Material | Stainless Steel |
| Handle Material Grade | Grade 300 |
| Handle Type | Locking Lever |
| Included Mounting | Actuator Mounting Pad |
| Max. Pressure | 2220 psi |
| Max. Pressure For Combustible Gas | Not Rated |
| Max. Steam Pressure | 200 psi WSP |
| Nominal Valve Size | 3/4" |
| Pipe Schedule Compatibility | Not Applicable |
| Pipe Size | 3/4" |
| Port | Full |
| Seat Material | RPTFE |
| Stem Grade | Grade 316 |
| Stem Material | Stainless Steel |
| Stem Type | Blowout Proof |
| Temp. Range | -20°F to +450°F |
| Valve Body Style | Straight |
| Valve Structure | Seal Welded |
| 3-a Compliance | Not Rated |
| Coefficient Of Volume (cv) | 32 |
| Connection Gender - Side 2 | Female |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Handle | Locking Lever |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 2220 psi |
| Max. Pressure (steam) | 200 psi |
| Media Temp. Range | -20°F to 450°F |
| Overall Length | 2.9" |
| Seal Material | Graphite |
| Standards | API 607, NACE MR0175 |
| Vacuum Service Rating | -29.912 in. hg |
| Valve Construction | One-Piece |
| Valve Series | BVS2 |
| Vented Ball Valve | Non Vented |
| Ship weight (kg) | 0.81 |
| Model | Price | |
|---|---|---|
| BVM3THRSSRGSL-150 | €507.05 | |
| BVM3THFSSRGSL-150 | €655.57 | |
| BVM3SWFSSRGSL-150 | €638.93 | |
| BVM3SWRSSRGSL-150 | €510.49 | |
| BVM3THFCSRGSL-150 | €460.09 | |
| BVM3THRCSRGSL-150 | €314.31 | |
| BVM3SWRCSRGSL-150 | €301.23 |
