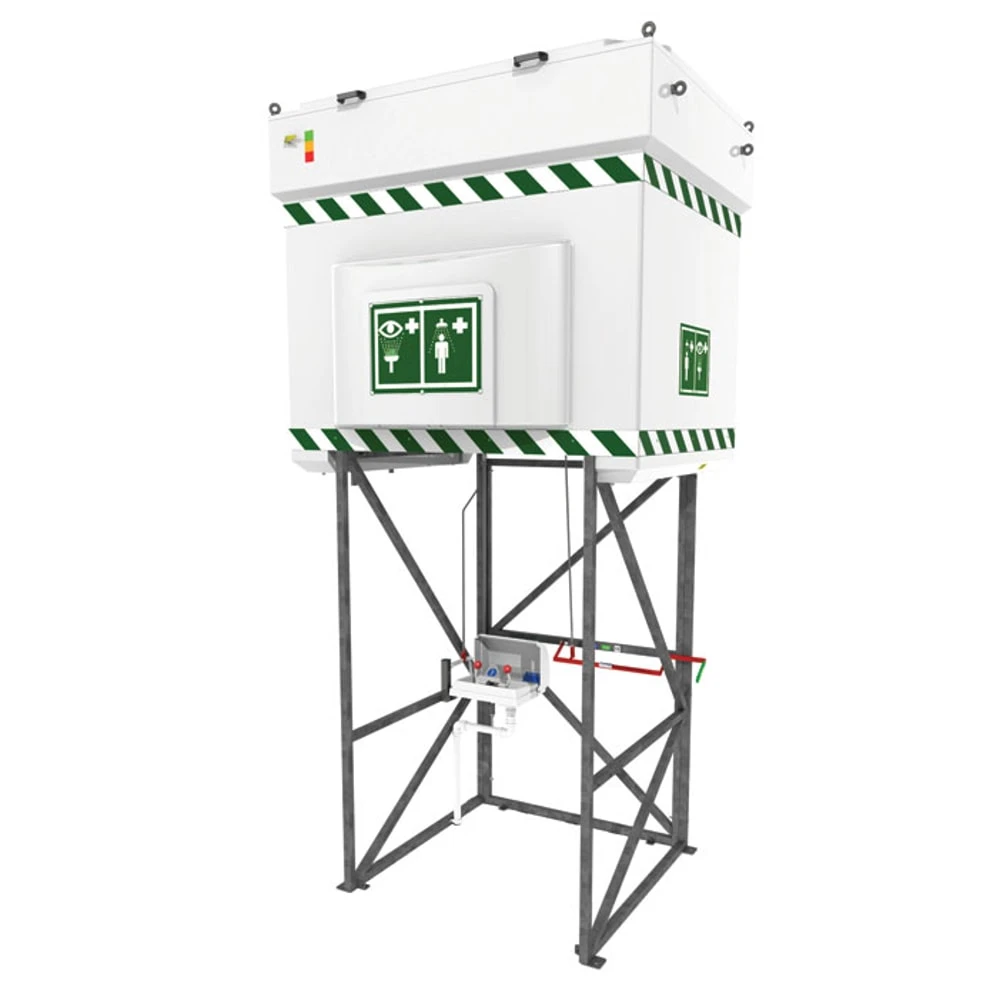

JUSTRITE QS2000 Emergency Tank Shower With Eye/Face Wash, Steel Frame, 520 Gallon, 110V | CH6GBD

JUSTRITE QS2000 Emergency Tank Shower With Eye/Face Wash, Steel Frame, 520 Gallon, 110V

In Stock
Item: CH6GBD Model: QS2000

Get it by May 24, Friday

Not eligible for flat shipping. Flat shipping is available on order value €99,00 or more and aggregate weight below 10 pounds.

€46,864.36 /unit
Add To Cart
Request a Quote

Payment Methods

Delivery Partners

Product Specifications:

ItemEmergency Shower Combination
Capacity520 gal.
ColorMulticolor
Depth60.2"
Electrical Equipment ClassificationGeneral Purpose
Eye/Face Activation MethodLift Lid Up
Eye/Face Wash Bowl Depth7.5"
Eye/Face Wash Bowl Width14"
Eyewash Bowl MaterialGRP
Eyewash MaterialStainless Steel
Frame FinishGalvanized
Frame MaterialSteel
Frequency50/ 60 Hz
Heating Load1700W
Heating TypeImmersion Heater
Height146.9"
Inlet Size3/4"
Material PropertiesMedium Density, Heavy Duty
Max. Ambient Temp.104 Deg. F
Max. Operating Pressure145 psi
Min. Ambient Temp.14 Deg. F
Min. Operating Pressure8 psi
Mounting TypeFloor
Nozzle GradeGrade 6
Nozzle MaterialNylon
Operation Duration15 min.
Phase1
Pipework MaterialUPVC, Stainless Steel
Product Datasheetjustrite-qs2000.pdf
Rose Dia.10.5"
Shower Activation MethodPush Bar
Shower Valve MaterialUPVC
Tank Casing MaterialGRP
Tank Lid MaterialGRP
Tank MaterialPolyethylene
Voltage110V AC
Water Flow Eye/Face3 gpm
Water Flow Shower/Body20 gpm
Water Inlet TypeFNPT
Width82.1"

Shipping Info:

Ship weight (kg) 765

Product Details:

Emergency tank showers are essential to providing safe working conditions where insufficient water pressure exists or when it is impractical to use a plumbed safety shower. The 528 gallon (2000 liter) shower is designed to meet and exceed ANSI and European standards by providing tepid water for over 15 minutes at a guaranteed flow of 20 US gallons (76 liters) per minute, even when there is no mains water supply. An integral immersion heater, 110V general purpose rated, controlled by a dual safety thermostat, maintains the water in the insulated tank at a constant tepid temperature. In an emergency, the shower actives quickly with a simple push of the panic bar. Intended for use in applications within a temperature range of 14?F(-10?C) to 104?(40?C). Assembly required. Electrical supply: 110V Single Phase, 60/50Hz

Features:

  • Rectangular hollow section galvanized frames are earthquake-proof and conform to the California Building Code
  • Internally mounted, covered GRP composite eye/face wash unit protects against dust and debris
  • Low-pressure shower rose delivers large quantities of water in an even pattern that is non-injurious to the user
  • External water level indicator provides visibility to tank levels
  • Ready for quick delivery - packed for economical shipment and assembly on-site

Documentation:

Datasheet

Product Variants

ProductModelCapacityDepthHeightOperation DurationWidthPrice
JUSTRITE QS1200 Emergency Tank Shower With Eye/Face Wash, Steel Frame, 317 Gallon, 110V | CH6GBC QS1200317 gal.61"139"13 min.67"€40,113.82
