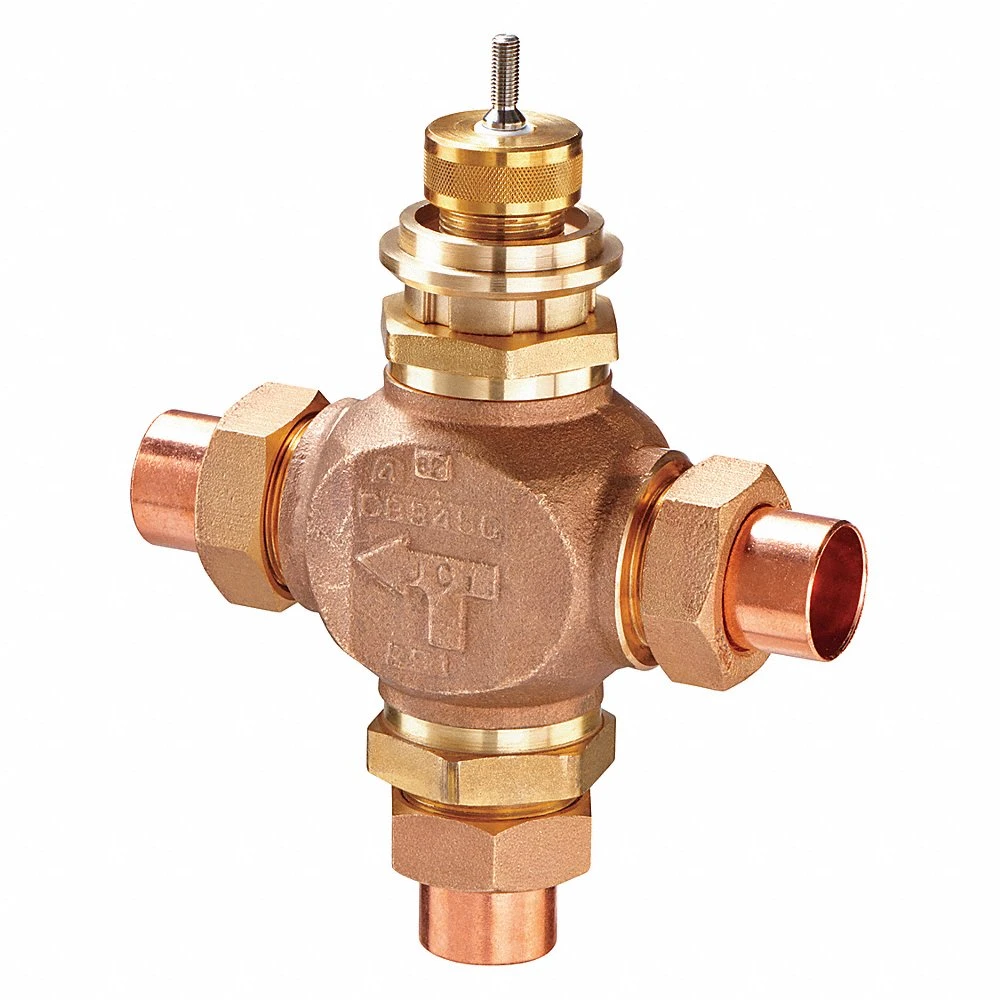

| Item | Globe Valve Less Actuator |
| Actuator Control Signal | Not Applicable |
| Actuator Input Voltage | Not Applicable |
| Actuator Return Action | Spring Return |
| Actuator Type | Not Applicable |
| Body Material | Bronze |
| Cartridge Material | Not Applicable |
| Coefficient Of Volume | 0.73 |
| Configuration | Tee |
| Connection Size | 1/2" |
| Connection Type | Sweat |
| Depth | 1 5/8" |
| Flow Characteristic | Linear |
| Height | 4 3/4" |
| Includes | Valve Only |
| Includes Actuator | Actuator Not Included |
| Installation Orientation | Vertical |
| Leakage Rate | 0.01% |
| Max. Actuator Control Pressure | Not Applicable |
| Max. Allowable Pressure | 400 psi |
| Max. Water Temp. | 284°F |
| Min. Actuator Control Pressure | Not Applicable |
| Overall Depth | 1 5/8" |
| Overall Height | 4 3/4" |
| Overall Length | 4 3/16" |
| Packing Material | Ethylene Propylene |
| Port Connection Gender | Female |
| Port Connection Size | 1/2" |
| Port Connection Type | Union Sweat |
| Rangeability | 251 |
| Resistance Properties | Corrosion Resistant |
| Safe Working Steam Pressure | 38 psi |
| Safe Working Water Pressure | 308 psi |
| Seat Material | Brass |
| Stem Material | Stainless Steel |
| Trim Material | Brass |
| Union Connection Size | 3/8" |
| Valve Style | Mixing |
| Width | 4 3/16" , 4.187" |
| Ansi Rating | ANSI Leakage Class IV |
| Body Pattern | Three-Way |
| Compatible With Series | Series VG7000 |
| Cv Flow Rate | 0.73 |
| Fluid Service | Steam, Water, Water Glycol Solution to 50% |
| Fluid Temperature - Maximum | 248°F |
| Fluid Temperature - Minimum | 35°F |
| Max. Pressure | 400 psi |
| Valve Action | Normally Open, Normally Closed |
| Ship weight (kg) | 0.84 |
| Ship height (cm) | 12.07 |
| Ship length (cm) | 4.13 |
| Ship width (cm) | 10.64 |
| HS code | 8481809050 |
| Country of Origin | MX |
| Model | Coefficient Of Volume | Connection Size | Connection Type | Depth | Height | Item | Valve Design | Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| VG7842CT | 0.73 | 1/2" | (F)NPT | 1.625" | 4.75" | Globe Valve | 3-Way Mixing | 3" | €180.96 | |
| VG7842ET | 1.8 | 1/2" | (F)NPT | 1.625" | 4.75" | Globe Valve | 3-Way Mixing | 3" | €266.88 | |
| VG7842GT | 4.6 | 1/2" | (F)NPT | 1.625" | 4.75" | Globe Valve | 3-Way Mixing | 3" | €198.78 | |
| VG7842LT | 7.3 | 3/4" | (F)NPT | 1.875" | 4.75" | Globe Valve | 3-Way Mixing | 3 7/32" | €272.12 | |
| VG7842NT | 11.6 | 1" | Fnpt | 2 5/16" | 5 31/32" | Globe Valve | 3 Way Mixing | 4 1/8" | €348.90 | |
| VG7842PT | 18.5 | 1.25" | (F)NPT | 2-11/16" | 5.875" | Globe Valve | 3-Way Mixing | 4 23/32" | €553.83 | |
| VG7842RT | 28.9 | 1.5" | (F)NPT | 4-5/16" | 5 13/16" | Globe Valve | 3-Way Mixing | 5.125" | €693.69 |
