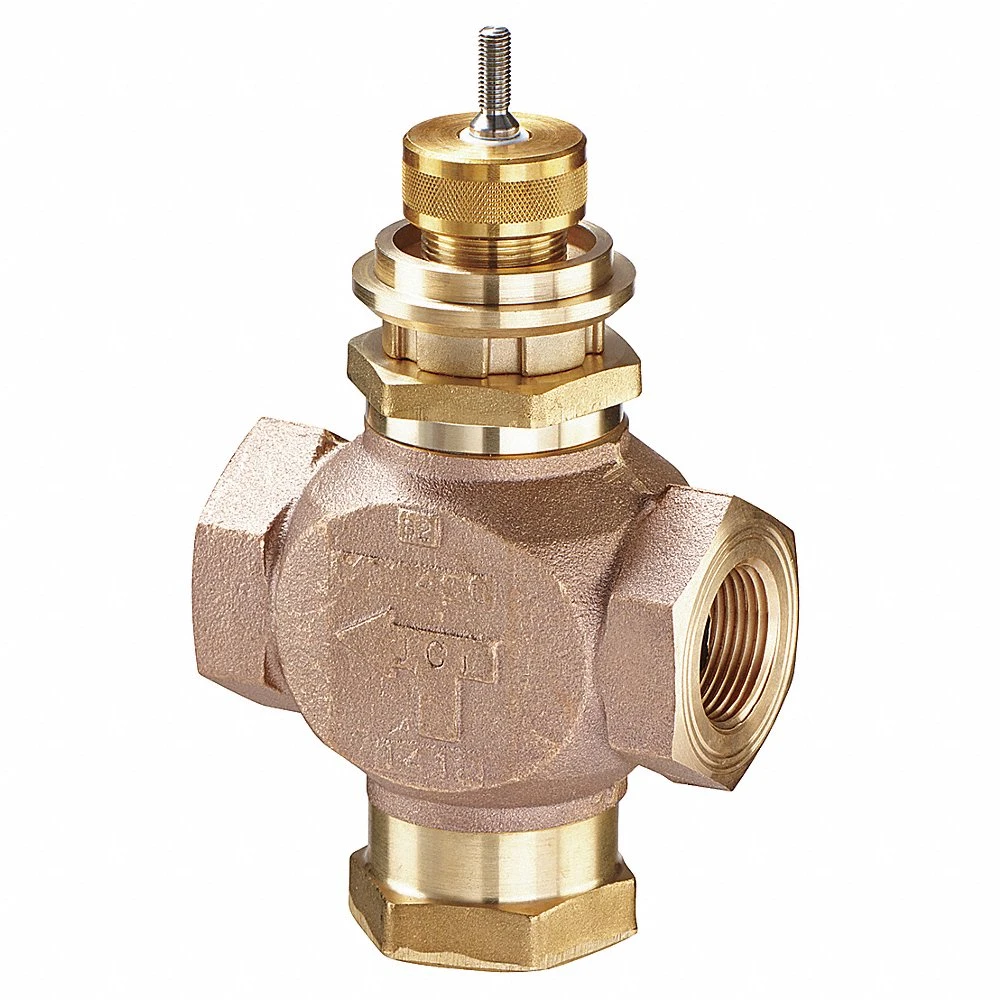

| Item | Globe Valve Less Actuator |
| Actuator Control Signal | Not Applicable |
| Actuator Input Voltage | Not Applicable |
| Actuator Return Action | Spring Return |
| Actuator Type | Not Applicable |
| Body Material | Bronze |
| Cartridge Material | Not Applicable |
| Coefficient Of Volume | 4.6 |
| Configuration | Tee |
| Connection Size | 1/2" |
| Connection Type | FNPT |
| Depth | 1 5/8" |
| Flow Characteristic | Linear |
| Height | 4 3/4" |
| Includes | Valve Only |
| Includes Actuator | Actuator Not Included |
| Installation Orientation | Vertical |
| Leakage Rate | 0.05% |
| Max. Actuator Control Pressure | Not Applicable |
| Max. Allowable Pressure | 400 psi |
| Max. Water Temp. | 338°F |
| Min. Actuator Control Pressure | Not Applicable |
| Overall Depth | 1 5/8" |
| Overall Height | 4 3/4" |
| Overall Length | 3" |
| Port Connection Gender | Female |
| Port Connection Size | 1/2" |
| Rangeability | 1001 |
| Resistance Properties | Corrosion Resistant |
| Safe Working Steam Pressure | 100 psi |
| Safe Working Water Pressure | 308 psi |
| Seat Material | Stainless Steel |
| Stem Material | Stainless Steel |
| Trim Material | Stainless Steel |
| Union Connection Size | Not Applicable |
| Valve Style | Mixing |
| Width | 3" |
| Ansi Rating | ANSI Leakage Class IV |
| Body Pattern | Three-Way |
| Compatible With Series | Series VG7000 |
| Cv Flow Rate | 4.6 |
| Fluid Service | Steam, Water, Water Glycol Solution to 50% |
| Fluid Temperature - Maximum | 248°F |
| Fluid Temperature - Minimum | 35°F |
| Max. Pressure | 400 psi |
| Packing Material | PTFE |
| Port Connection Type | NPT |
| Valve Action | Normally Open, Normally Closed |
| Ship weight (kg) | 1.35 |
| Ship height (cm) | 12.07 |
| Ship length (cm) | 4.13 |
| Ship width (cm) | 7.62 |
| HS code | 8481809050 |
| Country of Origin | MX |
