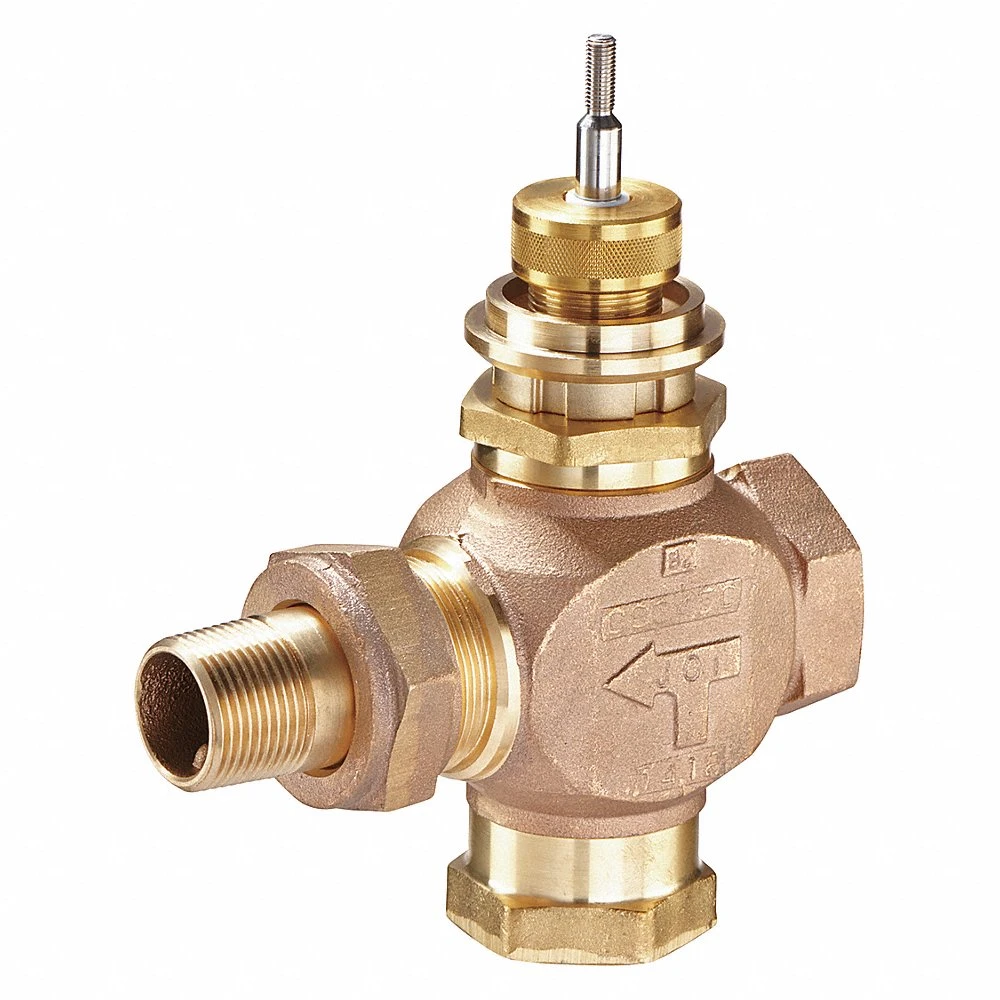

| Item | Globe Valve Less Actuator |
| Actuator Control Signal | Not Applicable |
| Actuator Input Voltage | Not Applicable |
| Actuator Return Action | Spring Return |
| Actuator Type | Not Applicable |
| Body Material | Bronze |
| Cartridge Material | Not Applicable |
| Coefficient Of Volume | 1.8 |
| Configuration | Angle , Normally Open |
| Connection Size | 1/2" |
| Connection Type | Union , Union Angle |
| Depth | 3.437" |
| Flow Characteristic | Equal Percentage |
| Height | 4 3/4" |
| Includes | Valve Only |
| Includes Actuator | Actuator Not Included |
| Installation Orientation | Vertical |
| Leakage Rate | 0.01% |
| Max. Actuator Control Pressure | Not Applicable |
| Max. Allowable Pressure | 400 psi |
| Max. Water Temp. | 284°F |
| Min. Actuator Control Pressure | Not Applicable |
| Overall Depth | 3 7/16" |
| Overall Height | 4 3/4" |
| Overall Length | 5 5/16" |
| Packing Material | Ethylene Propylene |
| Port Connection Size | 1/2" |
| Rangeability | 1001 |
| Resistance Properties | Corrosion Resistant |
| Safe Working Steam Pressure | 38 psi |
| Safe Working Water Pressure | 308 psi |
| Seat Material | Brass |
| Specific Valve Action | Stem Down To Close |
| Stem Material | Stainless Steel |
| Trim Material | Brass |
| Union Connection Size | 1/2" |
| Valve Style | Not Applicable |
| Width | 5 5/16" , 5.312" |
| Ansi Rating | ANSI Leakage Class IV |
| Body Pattern | Two-Way |
| Compatible With Series | Series VG7000 |
| Cv Flow Rate | 1.8 |
| Fluid Service | Steam, Water, Water Glycol Solution to 50% |
| Fluid Temperature - Maximum | 248°F |
| Fluid Temperature - Minimum | 35°F |
| Max. Pressure | 400 psi |
| Port Connection Gender | Female/Male |
| Port Connection Type | Union NPT |
| Valve Action | Normally Open |
