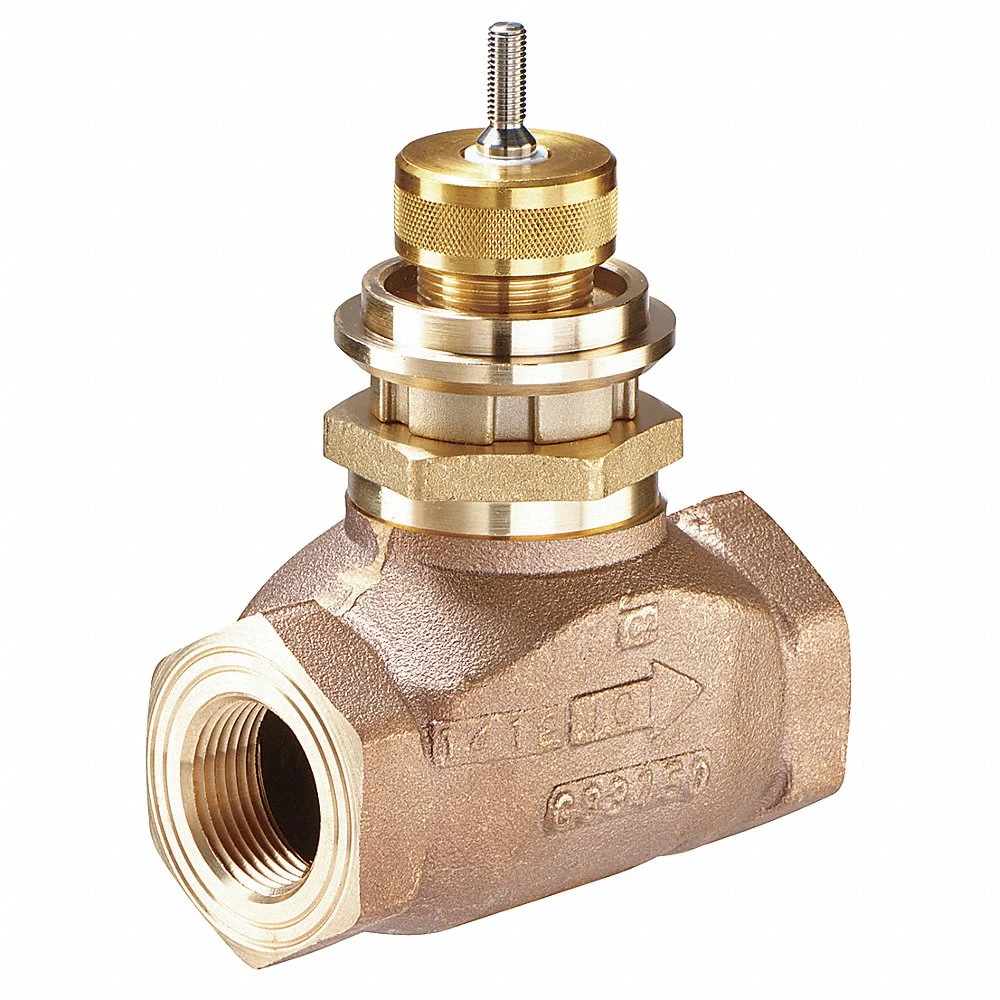

| Item | Globe Valve Less Actuator |
| Actuator Control Signal | Not Applicable |
| Actuator Input Voltage | Not Applicable |
| Actuator Return Action | Not Applicable |
| Actuator Type | Not Applicable |
| Body Material | Bronze |
| Cartridge Material | Not Applicable |
| Coefficient Of Volume | 11.6 |
| Configuration | Normally Open , Straight-Thru |
| Connection Size | 1" |
| Connection Type | FNPT |
| Depth | 2.312" |
| Flow Characteristic | Equal Percentage |
| Height | 5 31/32" , 5.969" |
| Includes | Valve Only |
| Includes Actuator | Actuator Not Included |
| Installation Orientation | Vertical |
| Leakage Rate | 0.01% |
| Max. Actuator Control Pressure | Not Applicable |
| Max. Allowable Pressure | 400 psi |
| Max. Water Temp. | 284°F |
| Min. Actuator Control Pressure | Not Applicable |
| Overall Depth | 2 5/16" |
| Overall Height | 5 31/32" |
| Overall Length | 4 1/8" |
| Packing Material | Ethylene Propylene |
| Port Connection Gender | Female |
| Port Connection Size | 1" |
| Rangeability | 1001 |
| Resistance Properties | Corrosion Resistant |
| Safe Working Steam Pressure | 38 psi |
| Safe Working Water Pressure | 308 psi |
| Seat Material | Brass |
| Specific Valve Action | Stem Down To Close |
| Stem Material | Stainless Steel |
| Trim Material | Brass |
| Valve Style | Not Applicable |
| Width | 4 1/8" , 4 3/25" |
| Ship weight (kg) | 2.16 |
| Ship height (cm) | 15.16 |
| Ship length (cm) | 5.87 |
| Ship width (cm) | 10.48 |
| HS code | 8481809050 |
| Country of Origin | MX |
