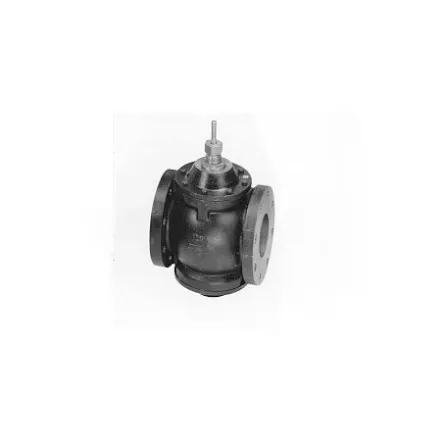

| Item | Globe Valve Less Actuator |
| Actuator Control Signal | Not Applicable |
| Actuator Input Voltage | Not Applicable |
| Actuator Return Action | Spring Return |
| Actuator Type | Not Applicable |
| Body Material | Cast Iron |
| Cartridge Material | Not Applicable |
| Configuration | Normally Closed , Straight-Thru |
| Connection Size | 6" |
| Connection Type | Flanged |
| Depth | 11" |
| Flow Characteristic | Linear |
| Height | 19 3/16" , 19.187" |
| Includes | Valve Only |
| Includes Actuator | Actuator Not Included |
| Leakage Rate | 0.1% |
| Max. Actuator Control Pressure | Not Applicable |
| Max. Allowable Pressure | 175 psi |
| Max. Water Temp. | 281°F |
| Min. Actuator Control Pressure | Not Applicable |
| Overall Depth | 11" |
| Overall Height | 19 3/16" |
| Overall Length | 14 1/2" |
| Port Connection Size | 6" |
| Port Connection Type | Flanged |
| Safe Working Steam Pressure | 35 psi |
| Safe Working Water Pressure | 175 psi |
| Seat Material | Brass |
| Specific Valve Action | Stem Up To Close |
| Stem Material | Stainless Steel |
| Stem Travel | 1 1/2" |
| Trim Material | Brass |
| Union Connection Size | Not Applicable |
| Valve Style | Not Applicable |
| Width | 14 1/2" |
| Ansi Rating | ANSI Class 125 |
| Body Pattern | Two-Way |
| Compatible With Series | Series MP86 |
| Cv Flow Rate | 350 |
| Fluid Service | Water, Water Glycol Solution to 50% |
| Fluid Temperature - Maximum | 281°F |
| Fluid Temperature - Minimum | 35°F |
| Max. Pressure | 175 psi |
| Packing Material | EPDM |
| Rangeability | 10.4:1 |
| Valve Action | Normally Closed |
