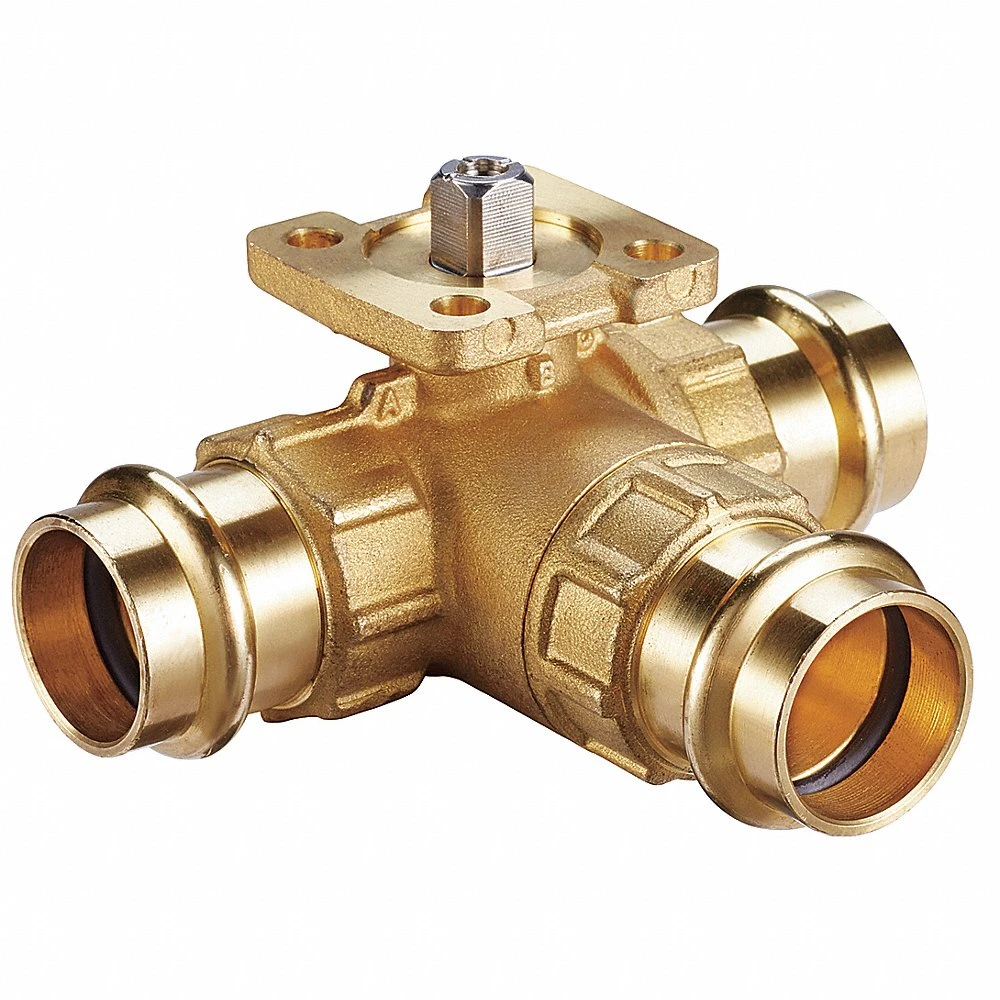

| Item | H VAC Control Ball Valve |
| Actuator Control Pressure - Max. | Not Applicable |
| Actuator Control Signal | Not Applicable |
| Actuator Input Voltage | Not Applicable |
| Actuator Return Action | Not Applicable |
| Actuator Type | Not Applicable |
| Application | Control Of Hot/Chilled Water |
| Ball Material | Stainless Steel |
| Body Material | Brass |
| Close Off Pressure | 200 psi |
| Coefficient Of Volume | 7.4 |
| Connection Size | 1/2" |
| Connection Type | Press End |
| Depth | 3.781" |
| Disk Material | Polyphthalamide Resin |
| Flow Characteristic | Equal Percentage, Linear |
| For Media | Steam, Water |
| Height | 1 7/8" |
| Includes Actuator | Actuator Not Included |
| Includes Characterizing Disk | Disk Included |
| Material | Stainless Steel |
| Max. Water Temp. | 284°F |
| Min. Actuator Control Pressure | Not Applicable |
| Port Connection Size | 1/2" |
| Port Connection Type | Press |
| Port Types Included | Bypass, Control |
| Power Source | Electric Actuator |
| Rangeability | 5001 |
| Resistance Properties | Wear Resistant |
| Safe Working Water Pressure | 580 psi |
| Specific Valve Action | Stem Down To Close |
| Stem Material | Stainless Steel |
| Trim Material | Stainless Steel |
| Valve Style | Mixing |
| Width | 1.906" |
| Ansi Rating | ANSI Leakage Class IV |
| Body Pattern | Three-Way |
| Bypass Cv Flow Rate (gpm) | 4.7 GPM |
| Close-off Pressure | 200 psi |
| Compatible With Series | Series VG1000 |
| Cv Flow Rate (gpm) | 7.4 GPM |
| Fluid Service | Steam, Water |
| Fluid Temperature - Maximum | 284°F |
| Fluid Temperature - Minimum | -22°F |
| Gasket Material | EPDM |
| Leakage Rate | 1% |
| Overall Depth | 3 13/16" |
| Overall Height | 1 7/8" |
| Overall Length | 1 15/16" |
| Port Connections | Bypass, Control |
| Seat Material | Graphite Reinforced PTFE |
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 4.76 |
| Ship length (cm) | 4.92 |
| Ship width (cm) | 4.84 |
| HS code | 8481809050 |
| Country of Origin | MX |
| Model | Coefficient Of Volume | Connection Size | Depth | Height | Width | Price | |
|---|---|---|---|---|---|---|---|
| VG1895AD | 1.2 | 1/2" | 3-25/32" | 1.875" | 1 29/32" | €132.53 | |
| VG1895AE | 1.9 | 1/2" | 3-25/32" | 1.875" | 1 29/32" | €133.56 | |
| VG1895AF | 2.9 | 1/2" | 3-25/32" | 1.875" | 1 29/32" | €179.82 | |
| VG1895AG | 4.7 | 1/2" | 3-25/32" | 1.875" | 1 29/32" | €132.53 | |
| VG1895AN | 11.7 | 1/2" | 3-25/32" | 1.875" | 1 29/32" | €132.53 | |
| VG1895BG | 4.7 | 3/4" | 4-3/32" | 1.875" | 2 1/16" | €185.21 | |
| VG1895BL | 7.4 | 3/4" | 4-3/32" | 1.875" | 2 1/16" | €136.13 |
