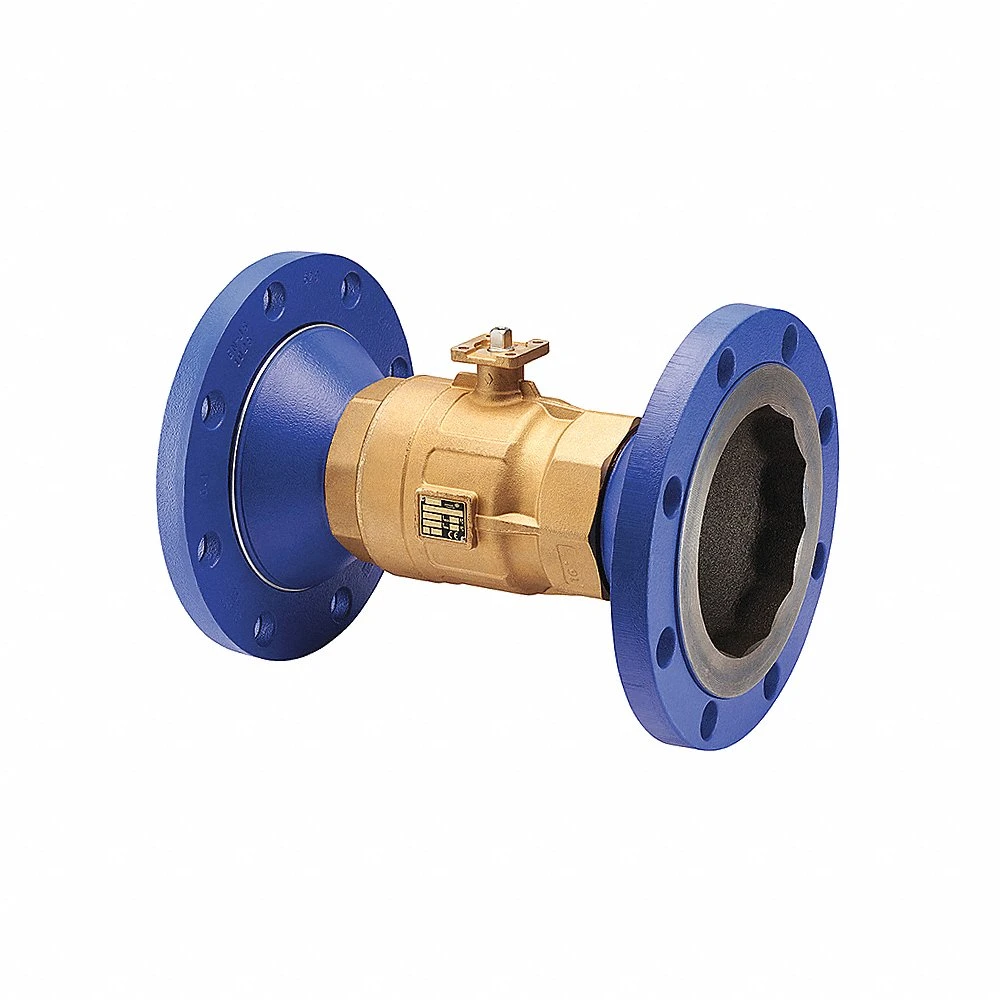

JOHNSON CONTROLS VG12A5MW HVAC Control Ball Valve, 2-Way, 185 Coefficient of Volume, 4 Inch Connection Size
Get it by Tuesday, Jun 17
€1,776.22 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Ball Valve |
| Close Off Pressure | 100 psi |
| Coefficient Of Volume | 185 |
| Connection Size | 4" |
| Connection Type | Flanged |
| Depth | 13" |
| For Use With | RP_Mfr No. M9000 |
| Height | 13" |
| Material | Brass, Stainless Steel |
| Max. Water Temp. | 284°F |
| Number Of Ways | 2 |
| Safe Working Water Pressure | 250 psi |
| Valve Only/actuator Included | Valve Only |
| Width | 11" |
| Ansi Rating | ANSI Leakage Class IV |
| Application | Control Of Hot/Chilled Water |
| Ball Material | Stainless Steel |
| Body Material | Brass |
| Body Pattern | Two-Way |
| Close-off Pressure | 100 psi |
| Compatible With Series | Series VG1000 |
| Cv Flow Rate (gpm) | 185 GPM |
| Disk Material | Polyphthalamide Resin |
| Flow Characteristic | Equal Percentage |
| Fluid Service | Steam, Water, Water Glycol Solution to 50% |
| Fluid Temperature - Maximum | 284°F |
| Fluid Temperature - Minimum | 0°F |
| Gasket Material | EPDM |
| Includes Actuator | Actuator Not Included |
| Includes Characterizing Disk | Disk Included |
| Leakage Rate | 0.01% |
| Overall Depth | 13" |
| Overall Height | 13" |
| Overall Length | 11" |
| Port Connection Size | 4" |
| Port Connection Type | Flanged |
| Port Connections | Control |
| Rangeability | 500:1 |
| Seat Material | Graphite Reinforced PTFE |
| Specific Valve Action | Stem Down to Close |
| Stem Material | Stainless Steel |
| Trim Material | Stainless Steel |
| Ship weight (kg) | 24.75 |
| Ship height (cm) | 33.02 |
| Ship length (cm) | 33.02 |
| Ship width (cm) | 27.94 |
| Country of Origin | MX |
| Model | Coefficient Of Volume | Connection Size | Depth | Height | Item | Width | Price | |
|---|---|---|---|---|---|---|---|---|
| VG12A5GS | 47 | 2.5" | 11.437" | 7" | H VAC Control Ball Valve | 7" | €1,019.91 | |
| VG12A5GT | 74 | 2.5" | 11.437" | 7" | H VAC Control Ball Valve | 7" | €1,019.91 | |
| VG12A5GU | 117 | 2.5" | 11.437" | 7" | H VAC Control Ball Valve | 7" | €1,039.47 | |
| VG12A5HT | 74 | 3" | 12.25" | 7.5" | H VAC Control Ball Valve | 7.5" | €1,094.14 | |
| VG12A5HU | 134 | 3" | 12.25" | 7.5" | H VAC Control Ball Valve | 7.5" | €1,047.02 | |
| VG12A5HV | 176 | 3" | 12.25" | 7.5" | H VAC Control Ball Valve | 7.5" | €1,188.00 | |
| VG12A5JU | 117 | 4" | 13.75" | 9" | H VAC Control Ball Valve | 9" | €1,521.44 |
