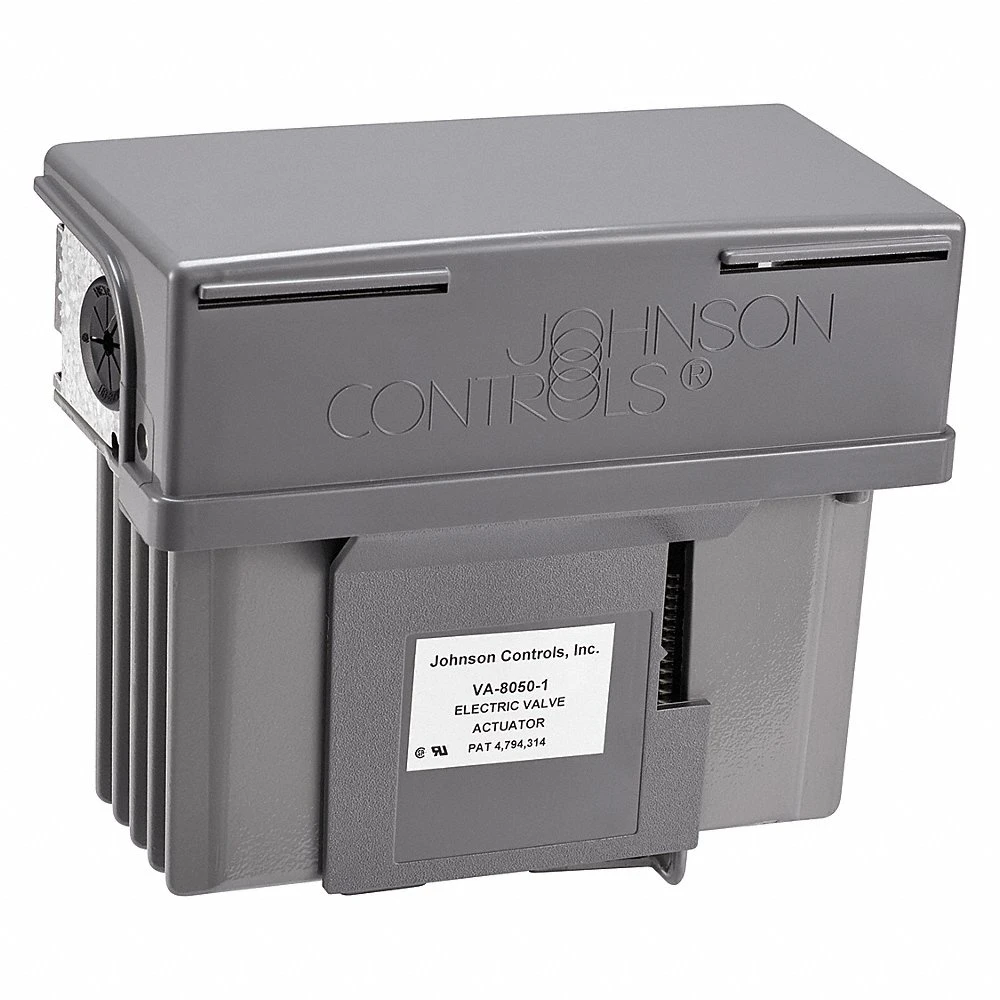

| Item | Electric Globe Valve Actuator |
| Compatible With Series | VG7000 |
| Control Signal | Floating Point |
| Cycle Time | 75 sec. |
| Depth | 3 3/32" |
| Electrical Connection Type | Screw Terminals |
| Electrical Lead Length | Not Applicable |
| Enclosure Rating | Not Rated |
| For Use With | Globe Valves |
| Height | 5 11/32" |
| Includes | Valve Linkage |
| Number Of Auxiliary Switches | 0 |
| Overall Depth | 3 1/8" |
| Overall Height | 5 3/8" |
| Power Consumption | 6 VA |
| Return Action | Non Spring Return |
| Stroke Length | 3/4" |
| Torque | 50 lbf. |
| Type | Actuator Only |
| Voltage | 24V AC |
| Width | 6" |
| Compatible Valve Body Pattern | Three-Way, Two-Way |
| Compatible With Brand | Johnson Controls |
| Frequency | 50/60 Hz |
| Nema Rating | Not Rated |
| Operating Temperature - Maximum | 140°F |
| Overall Width | 6" |
| Product Type | Electric Globe Valve Actuator |
| Ship weight (kg) | 1.06 |
| Ship height (cm) | 13.57 |
| Ship length (cm) | 7.86 |
| Ship width (cm) | 15.24 |
| HS code | 8501104060 |
| Country of Origin | MX |
