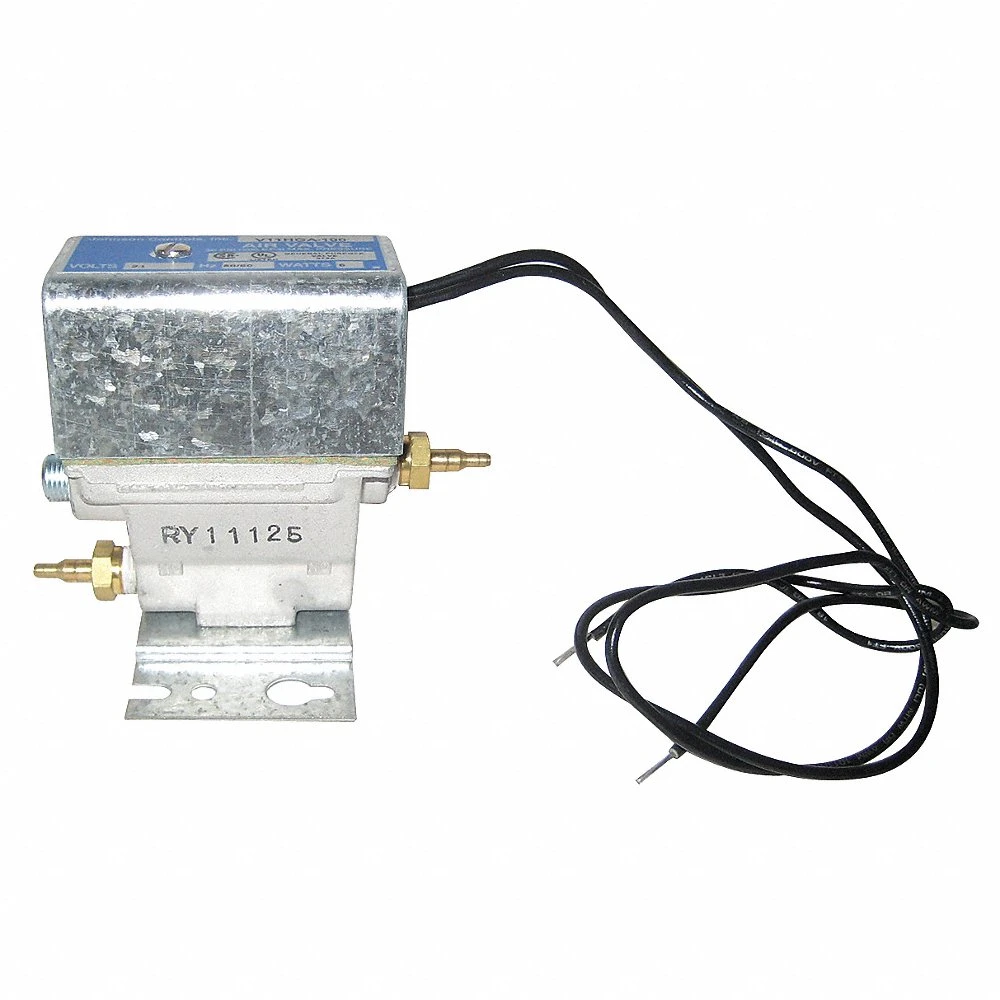

| Item | Solenoid Air Valve |
| Air Connections | 0.25" |
| Air Consumption | 1.5 CFM |
| Depth | 1 1/2" |
| Height | 3 1/4" |
| Max. Air Pressure | 30 psi |
| Temp. Control Range | +32°F to +104°F |
| Voltage | 24V DC |
| Width | 2 1/2" |
| Application | Smoke Dampers |
| Body Material | Die Cast Aluminum |
| Body Pattern | Three-Way |
| Common Port Connection Gender | Male |
| Common Port Connection Size | 1/4" |
| Common Port Connection Type | Barbed Hose |
| Control Action | Direct Acting, Reverse Acting |
| Cover Material | Steel |
| Electrical Connections | Soldered |
| Electrical Lead Length | 18" |
| Enclosure Type | Junction Box |
| For Media | Air |
| Frequency | 50/60 Hz |
| Installation Orientation | Versatile |
| Normally Closed Port Connection Gender | Male |
| Normally Closed Port Connection Size | 1/4" |
| Normally Closed Port Connection Type | Barbed Hose |
| Normally Open Port Connection Gender | Female |
| Normally Open Port Connection Size | 1/8" |
| Normally Open Port Connection Type | NPT |
| Number Of Port Connections | 3 |
| Operating Pressure - Maximum | 30 psi |
| Operating Temperature - Maximum | 104°F |
| Operating Temperature - Minimum | 32°F |
| Overall Depth | 1 1/2" |
| Overall Length | 3 7/16" |
| Overall Width | 2 1/2" |
| Port Types Included | Common, Normally Closed, Normally Open |
| Power Consumption | 8 W |
| Standards | CE LISTED, UL LISTED |
| Valve Action | Normally Closed, Normally Open |
| Ship weight (kg) | 0.4 |
| Ship height (cm) | 8.26 |
| Ship length (cm) | 8.73 |
| Ship width (cm) | 6.35 |
| HS code | 8481809050 |
| Country of Origin | US |
| Model | Voltage | Price | |
|---|---|---|---|
| V11HAA-100 | - | €524.32 | |
| V11HAA-115 | - | €531.79 | |
| V11HBA-100 | - | €393.81 | |
| V11HCA-100 | - | €379.23 | |
| V11HDA-100 | - | €519.33 | |
| V11HFA-100 | 277 VAC | €615.75 |
