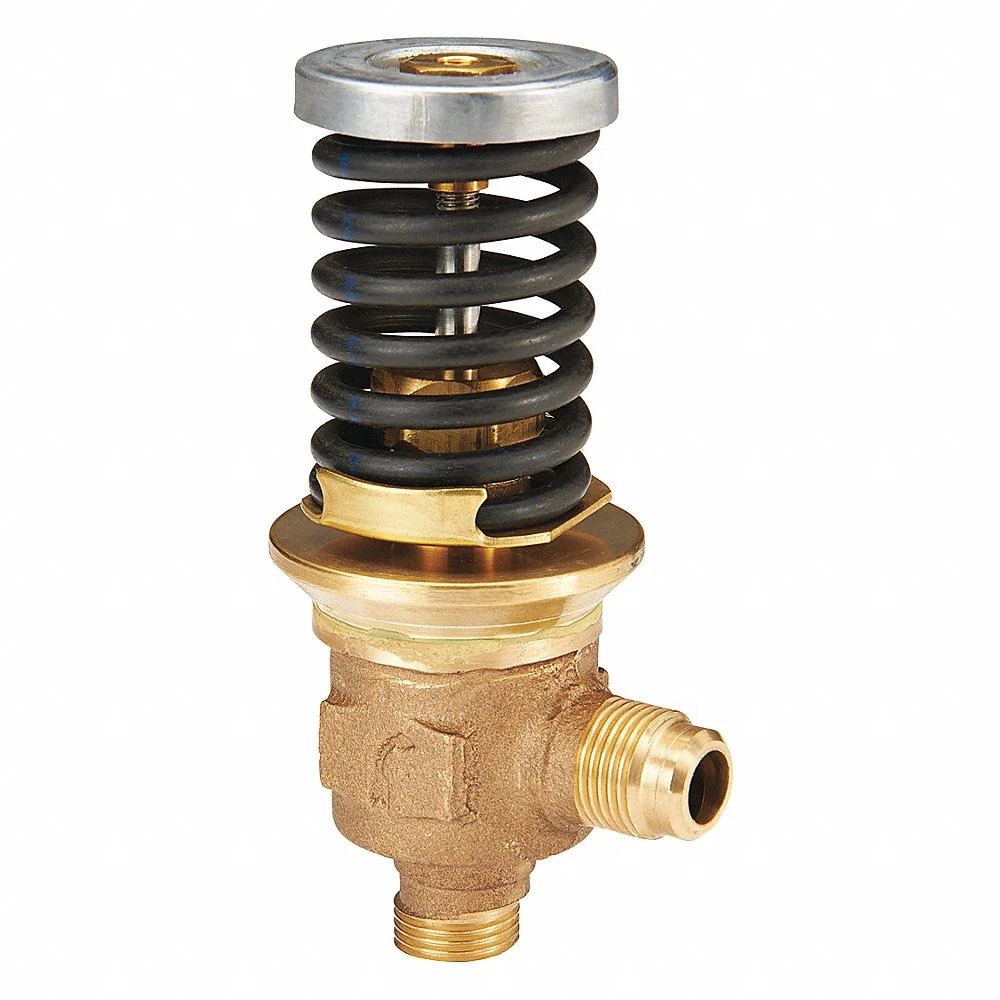

| Item | Pneumatic Flare Valve |
| Body Material | Brass |
| Coefficient Of Volume | 3.2 |
| Actuator Air Port Connection | 1/8" NPT |
| Actuator Operation | Air To Spring |
| Actuator Type | Single Acting Spring Return |
| Ambient Temperature - Maximum | 150°F |
| Ambient Temperature - Minimum | -10°F |
| Coefficient Of Volume(cv) | 3.2 |
| Connection Size - Side 2 | 1/2" |
| Connection Size-side 1 | 1/2" |
| Connection Type | Flare x Flare |
| Connection Type - Side 2 | Flare |
| Connection Type-side 1 | Flare |
| Deactivated State | Normally Closed (NC) |
| Diaphragm Material | Reinforced Synthetic Rubber |
| Diaphragm Valve Type | 2 Way |
| For Media | Water |
| Max Pressure (cwp) | 240 psi |
| Max. Operating Temperature | 281°F |
| Media Temp. Range | 195°F to 281°F |
| Min. Operating Temperature | 195°F |
| Nominal Valve Size | 1/2" |
| Stem Material | Stainless Steel |
| Valve Series | V-3966 |
| Ship weight (kg) | 1.4 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 12.7 |
| HS code | 8481809040 |
| Country of Origin | MX |
| Product | Model | Coefficient Of Volume | Price | |
|---|---|---|---|---|
 |
V-3966-1001 | 1.7 | €809.86 |
