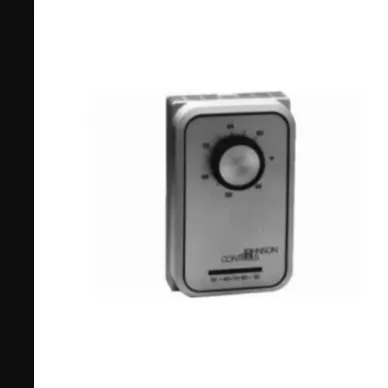

JOHNSON CONTROLS T26J-7C Line Voltage Thermostat, Electric Cooling
Get it by Tuesday, Jun 17
€190.35 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Line Voltage Thermostat |
| Amps | 125A |
| Application | Cool Only |
| Compatible System Type | Electric Cooling |
| Contact Type | Snap Action |
| Control Type | Exposed Dial |
| Differential Temp. | 1.3°F |
| Differential Type | Fixed |
| Display Type | Analog |
| Electrical Connection Type | Screw Terminals |
| Enclosure Color | Beige |
| Enclosure Finish | Gold Anodized |
| Full Load Amps @ 120v | 6A |
| Full Load Amps @ 240v Ac | 3A |
| Housing Color | White |
| Housing Material | Plastic |
| Includes Positive Off | No |
| Locked Rotor Amps @ 120v | 36A |
| Locked Rotor Amps @ 240v | 18A |
| Max. Control Temp. | 90°F |
| Min. Control Temp. | 40°F |
| Mounting Direction | Horizontal |
| Mounting Location | Wall |
| Mounting Type | Surface Mount |
| Number Of Cooling Stages | 1 |
| Number Of Poles | 1 |
| Overall Depth | 2 7/8" |
| Overall Height | 4 11/16" |
| Overall Width | 2 15/16" |
| Sensor Type | Bi Metallic Spring |
| Switch Action | Close On Rise |
| System Settings | On |
| Temperature Readout | No |
| Temperature Scale | Celsius, Fahrenheit |
| Type | Line Voltage |
| Voltage | 24-277V AC |
| Contact Rating | 120/208/240/277V AC |
| Full Load Amps @ 120v Ac | 6A |
| Maximum Control Temperature | 90°F |
| Minimum Control Temperature | 40°F |
| Pilot Duty Rating | 125A @ 24/277V AC |
| Standards | CSA CERTIFIED, UL LISTED |
| Switch Type | SPST |
| Temperature Differential | 1.3°F |
| Thermostat Type | Line Voltage |
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 11.91 |
| Ship length (cm) | 7.3 |
| Ship width (cm) | 7.46 |
| Country of Origin | MX |
