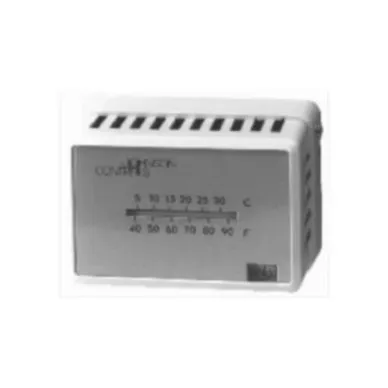

JOHNSON CONTROLS T-4003-203 Pneumatic Thermostat, Remote Reset, Single Temp
Get it by Tuesday, Jun 17
€333.71 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Pneumatic Thermostat |
| Action Type | Reverse |
| Air Connection Outside Dia. | 1/8" |
| Air Consumption | 20 SCFM |
| Air Flow Capacity | 400 SCFM |
| Air Flow Output | High Volume |
| Application | Heat Or Cool |
| Control Type | Exposed Dial |
| Differential Type | Fixed |
| Fitting Connection Size | 0.156" |
| Fitting Connection Type | Barbed |
| Includes Cover | No |
| Key Features | Remote Readjustment, Volume Amplifier |
| Manual Indexing Switch | No |
| Max. Air Pressure | 25 psig |
| Max. Control Temp. | 85°F |
| Min. Control Temp. | 55°F |
| Mounting Direction | Horizontal |
| Mounting Location | Wall |
| Number Of Dials | 1 |
| Number Of Pipes | 1 |
| Overall Depth | 1 3/4" |
| Overall Height | 2 1/8" |
| Overall Width | 3 1/8" |
| Pneumatic Thermostat Type | Remote Reset |
| Sensor Type | Bi Metallic Spring |
| Temp. Settings | Single Temperature |
| Temperature Scale | Celsius, Fahrenheit |
| Thermostat Action | Reverse |
| Action | Reverse |
| Air Connection Outside Diameter | 1/8" |
| Control Air Pressure Settings | 13 psig (Day), 25 psig (Night) |
| Fitting Connection | Barbed 5/32" |
| Maximum Air Pressure | 25 psig |
| Maximum Control Temperature | 85°F |
| Minimum Control Temperature | 55°F |
| Temperature Settings | Single Temperature |
| Ship weight (kg) | 0.17 |
| Ship height (cm) | 5.4 |
| Ship length (cm) | 4.45 |
| Ship width (cm) | 7.94 |
| Country of Origin | MX |
| Product | Model | Price | |
|---|---|---|---|
 |
T-4054-2 | €356.20 | |
 |
T-4054-1 | €380.63 | |
 |
T-4002-201 | €257.81 | |
|
T-4002-9009 | €217.05 | |
 |
T-4002-9014 | €263.42 | |
|
T-4002-9008 | €225.97 | |
 |
T-4002-9012 | €292.02 |
